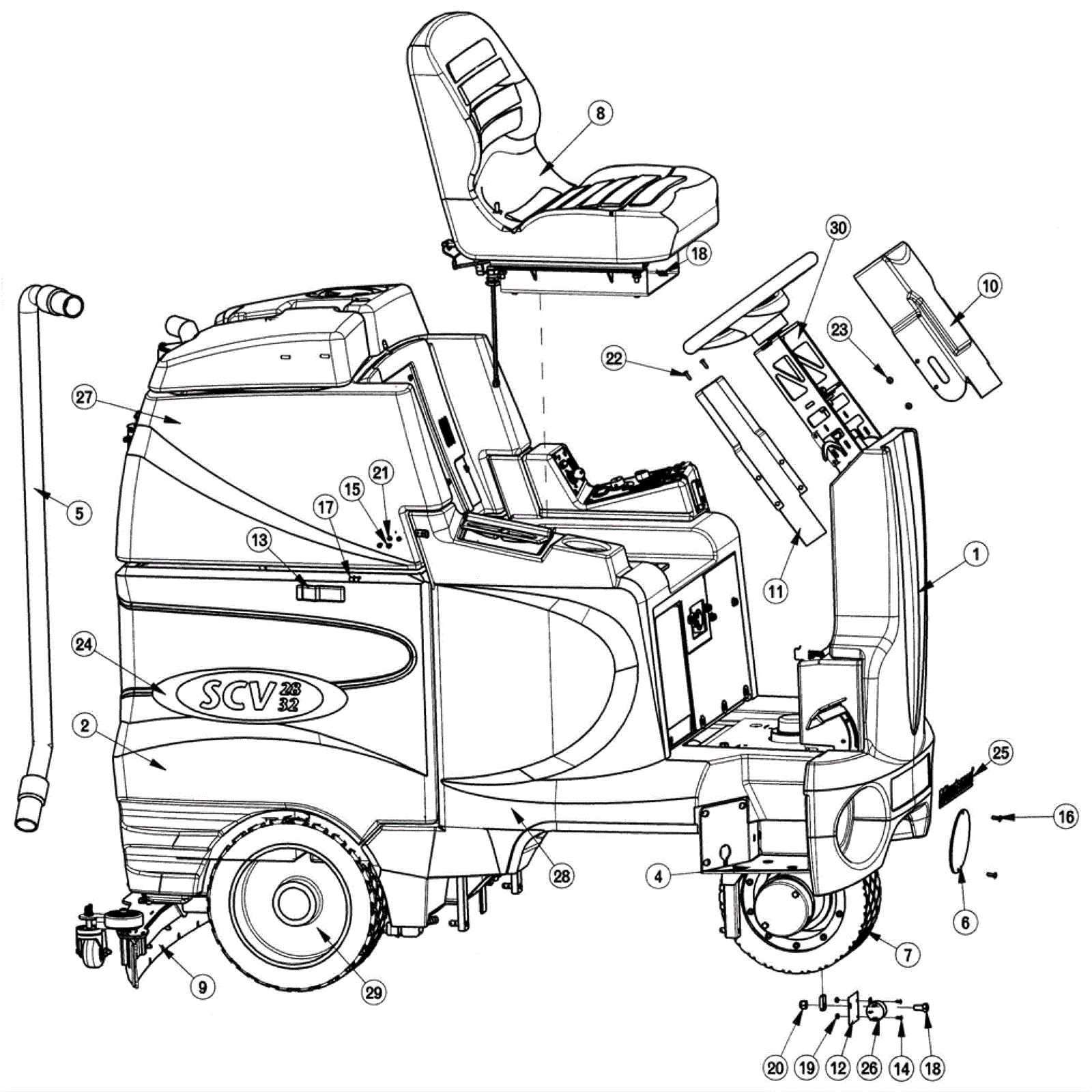

POWERBOSS SCV28 Main Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 174-8671 Front bumper Call for price 1 usually ships 1-5 days
2 174-8672 Battery tray assembly $368.59 1 usually ships 1-5 days
3 174-8673 Left antiskid step $18.95 1 usually ships 1-5 days
4 174-8674 Right anti skid step $18.95 1 usually ships 1-5 days
5 174-8675 Squeegee hose assembly $36.18 1 usually ships 4-14 days
6 174-8676 5 inch headlight cover $12.74 2 usually ships 1-5 days
7 174-8677 Front drive assembly (OBSOLETE) Call for price 1 usually ships 4-14 days
8 174-8678 Seat sub assembly $443.67 1 usually ships 1-5 days
9 174-8688 Squeegee blade assembly $769.85 1 usually ships 1-5 days
10 174-8680 Top steering cover $48.98 1 usually ships 1-5 days
11 174-6548 Bottom steering cover $48.80 1 usually ships 1-5 days
12 174-8681 Horn bracket $9.57 1 usually ships 1-5 days
13 174-3200 Latch $30.98 2 usually ships 4-14 days
14 174-5638 Screw 6-32 x 3/8 steel plated $0.97 2 usually ships 1-5 days
15 999-0093 Screw 8-32 x 3/8 flat head slotted zinc plated $0.99 4 ships same day
16 174-5991 Screw #10 x 5/8 plated hi/low $0.99 4 usually ships 4-14 days
17 174-2289 Screw 10 x 5/8 hi/lo $1.90 4 usually ships 4-14 days
18 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 5 ships same day
19 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
20 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
21 174-5406 Washer 8 helical $0.97 4 usually ships 4-14 days
22 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 2 ships same day
23 174-6202 Screw 10-24 x .37 $0.97 4 usually ships 1-5 days
24 174-8689 SCV28 label $11.63 2 usually ships 1-5 days
25 174-8011 Minuteman decal $3.84 1 usually ships 4-14 days
26 174-8682 Back up alarm $56.91 1 usually ships 4-14 days
27 174-8683 Recovery tank lid assembly $1,367.83 1 usually ships 1-5 days
28 174-8684 Solution tank assembly Call for price 1 usually ships 1-5 days
29 174-8685 Rear axle assembly $1,622.20 1 usually ships 1-5 days
30 174-8686 Steering assembly $1,772.20 1 usually ships 1-5 days
