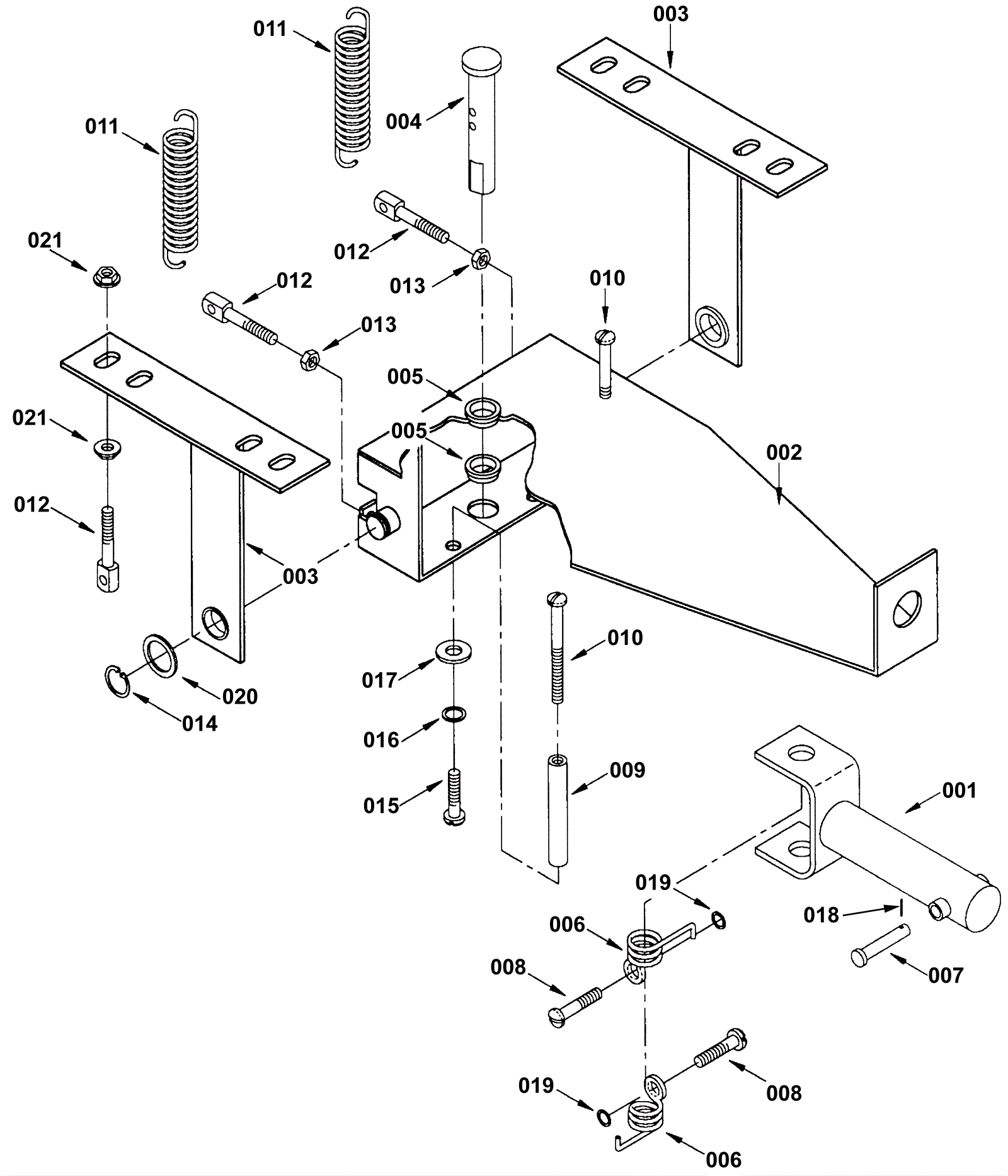

3200 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-0417 Yoke weldment $59.68 1 usually ships 1-5 days
002 174-0418 Spring housing weldment $95.92 1 usually ships 1-5 days
003 174-0278 Pivot bracket weldment $48.60 2 usually ships 1-5 days
004 174-0279 Swivel pin $51.79 1 usually ships 4-14 days
005 174-0120 Bushing $2.63 2 usually ships 4-14 days
006 174-0280 Torsion spring stainless steel $6.35 2 ships same day
007 174-0203 Clevis pin $2.16 1 usually ships 1-5 days
008 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 ships same day
009 174-0281 Spacer tube $7.99 2 usually ships 1-5 days
010 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 2 ships same day
011 174-0008 Return spring $2.78 2 usually ships 4-14 days
012 174-0282 Swing bolt $7.69 4 usually ships 4-14 days
013 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
014 174-0283 3/4 retaining ring $3.97 2 ships same day
015 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
016 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
017 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
018 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
019 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
020 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
021 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
