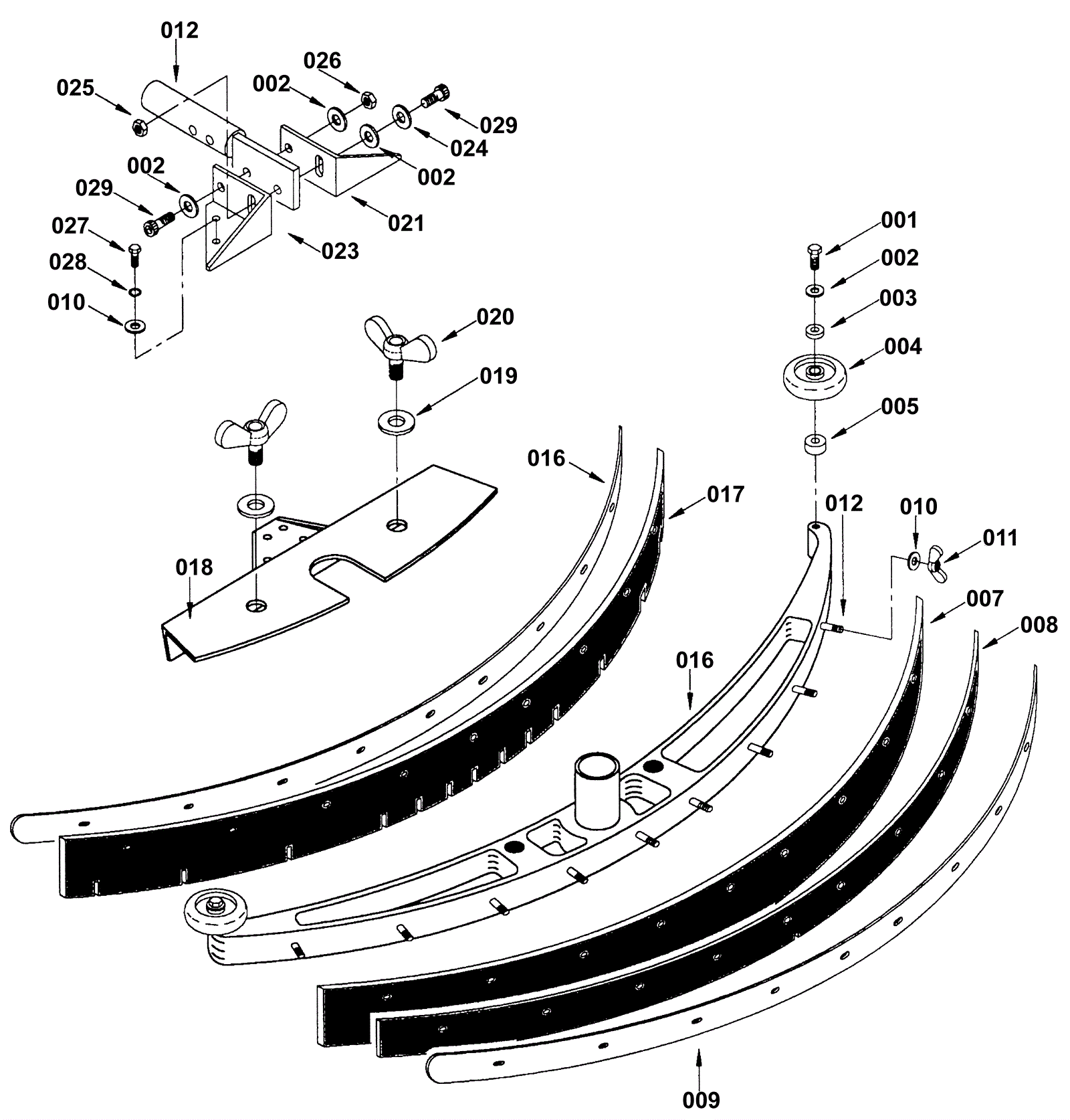

3200 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-1367 Bolt 3/8 x 1 1/2 x 5/16-18 socket head shoulder SS $16.12 2 ships same day
002 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 5 ships same day
003 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
004 174-0268 Guide wheel $20.11 2 usually ships 9-11 days
005 174-0262 Spacer $7.40 2 usually ships 9-11 days
006 N/A Not available Call for price 1 usually ships 3-26 days
007a 174-0442 Squeegee blade 43 1/4 inch gum rubber rear (tan) $35.87 1 (OEM) usually ships 9-11 days
007b 994-0034 Squeegee blade 43 inch gum rubber rear (tan) $37.00 1 (NON-OEM) usually ships 13-16 days
008a 174-0443 Squeegee blade 42 inch neoprene reinforcement $19.56 1 (OEM) usually ships 9-11 days
008b 994-0035 Squeegee blade 42 inch neoprene reinforcement $15.21 1 (NON-OEM) usually ships 13-16 days
009 174-0444 Rear squeegee blade strap $18.95 1 usually ships 9-11 days
010 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
011 174-0603 6G black 8 Call for price 8 usually ships 1-5 days
012 174-0604 10G black 11 Call for price 2 usually ships 1-5 days
013 174-5702 Bolt 1/4-20 x 2 carriage stainless steel $1.05 2 usually ships 9-11 days
014 999-0514 Screw 1/4-20 x 2 1/2 carriage head zinc $0.99 2 ships same day
015 999-0607 Screw 1/4-20 x 3 carriage head stainless steel $3.30 2 ships same day
016 174-0445 Front squeegee blade strap $20.14 1 usually ships 1-5 days
017 174-0446 Squeegee blade 41 inch gum rubber front (tan) $27.17 1 (OEM) usually ships 9-11 days
017b 994-0036 Squeegee blade 32 inch gum rubber front (tan) $21.30 1 (NON-OEM) usually ships 13-16 days
018 174-0274 Squeegee mounting bracket $101.94 1 usually ships 1-5 days
019 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
020 174-0538 Bolt 1/2-13 x 1 wing $27.94 2 usually ships 9-11 days
021 174-0033 Right side mount bracket $22.18 1 usually ships 9-11 days
022 174-0275 Squeegee mount weldment $75.96 1 usually ships 1-5 days
023 174-0034 Left side mount bracket $40.31 1 usually ships 9-11 days
024 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
025 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 1 ships same day
026 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
027 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 usually ships 19-32 days
028 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
029 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
