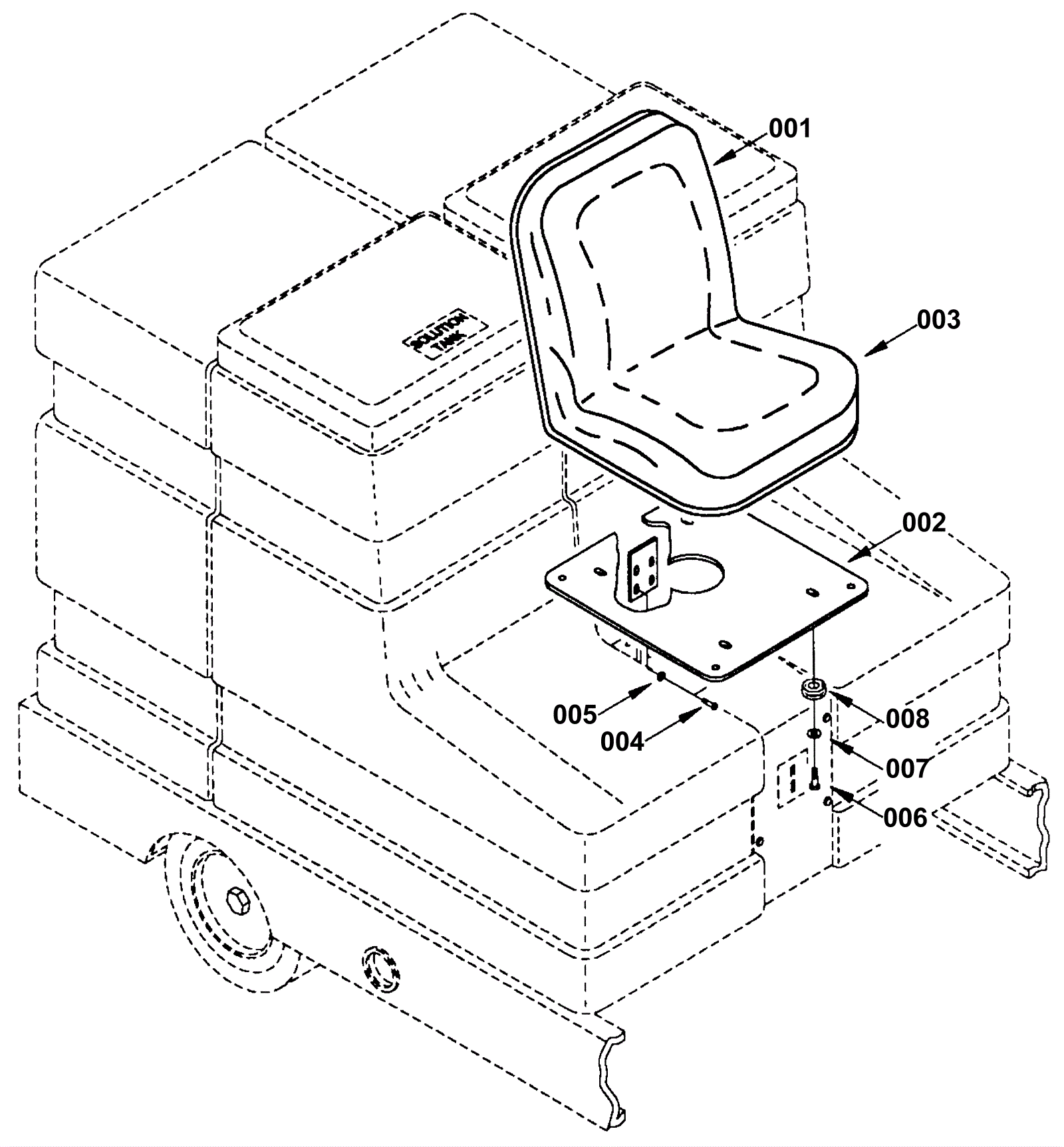

Seat Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1713 Seat with switch Call for price 1 usually ships 1-5 days
002 174-1714 Seat mount plate weldment Call for price 1 usually ships 1-5 days
003 174-1715 Seat quick mount switch Call for price 1 usually ships 1-5 days
004 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 4 ships same day
005 999-1049 Washer 1/4 split lock zinc plated $0.99 4 ships same day
006 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
007 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
008 174-1716 Seat mount bumper Call for price 4 usually ships 1-5 days
