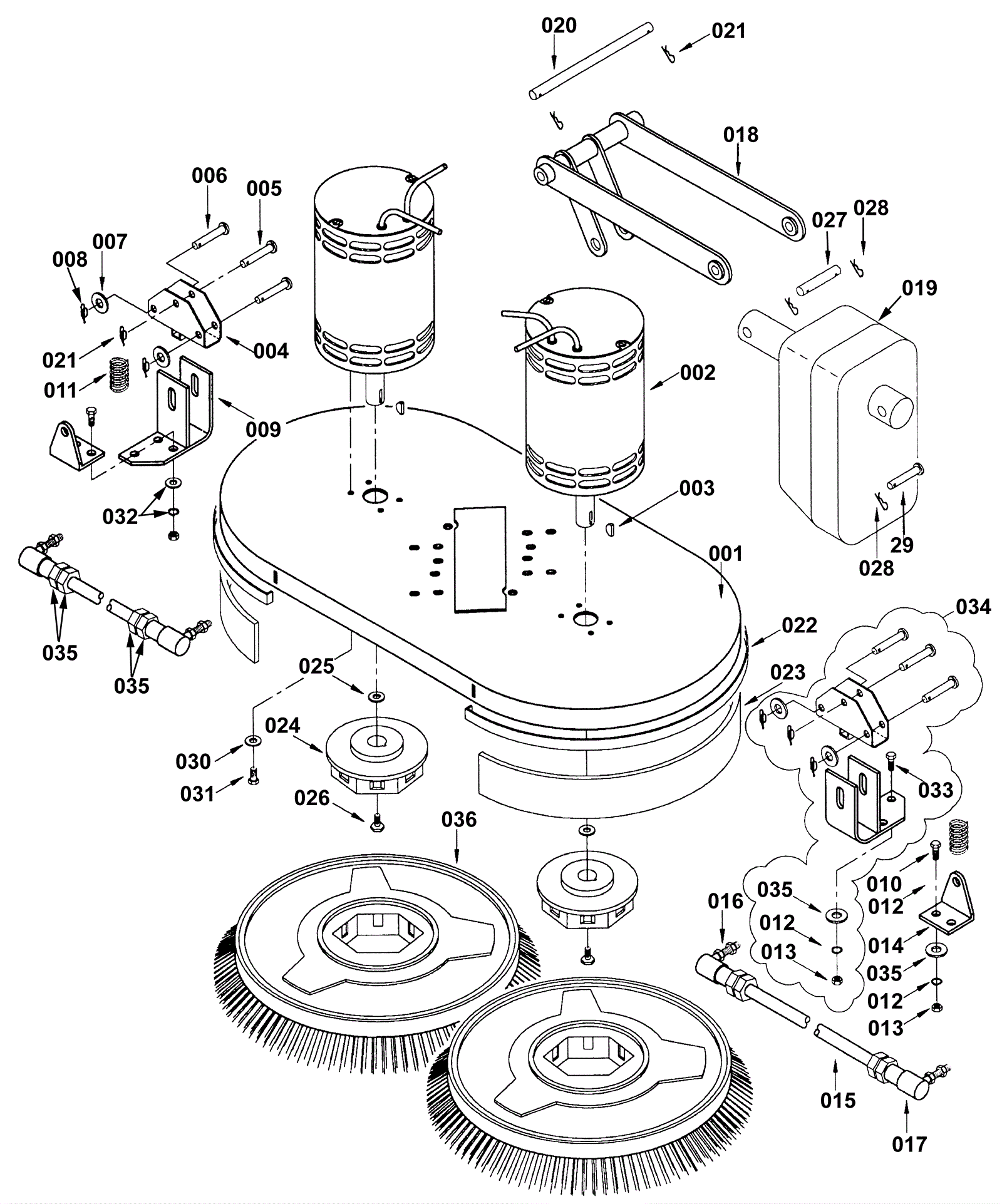

3200 Scrubdeck Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1698 Scrub deck weldment Call for price 1 usually ships 1-5 days
002a 174-0482 36V 1.0HP brush gear motor assembly $1,212.93 2 usually ships 1-5 days
002b 991-8524 36V 1.0HP brush motor assembly with gear box $835.61 2 (NON-OEM) usually ships 5-16 days
003 174-0036 Square keyway $1.00 2 usually ships 4-14 days
004 174-0440 Bracket spring support $46.34 2 usually ships 1-5 days
005 174-0348 Clevis pin $4.29 2 usually ships 1-5 days
006 174-0203 Clevis pin $2.16 4 usually ships 1-5 days
007 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
008 174-1578 3/8 rue ring cotter pin $1.45 4 ships same day
009 174-1699 Lift bracket weldment $18.18 2 usually ships 1-5 days
010 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 4 ships same day
011 174-0149 Compression spring $3.78 2 usually ships 1-5 days
012 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
013 999-0593 Nut 5/16-18 hex stainless steel $0.99 6 ships same day
014 174-1700 Lift arm mount Call for price 2 usually ships 1-5 days
015 174-1701 Rod 3/8 x 24 x 10 39/64 Call for price 2 usually ships 1-5 days
016 174-1762 3/ 8 x 24 Ball joint withquick release $1.20 2 usually ships 1-5 days
017 174-1702 3/8 - 24 Ball joint Call for price 2 usually ships 1-5 days
018 174-1704 Scrub lift weldment Call for price 1 usually ships 1-5 days
019 174-1705 Actuator SPO-2655 $826.03 1 usually ships 1-5 days
020 174-1706 Pin 5/8 x 8 Call for price 1 usually ships 1-5 days
021 174-1707 5/8 Inch rue ring cotter pin $2.66 2 usually ships 1-5 days
022 174-1708 Skirt strap weldment Call for price 2 usually ships 1-5 days
023 174-1709 Extruded skrit raw $6.66 5 ft usually ships 4-14 days
024 174-0035 Drive hub $41.45 2 usually ships 4-14 days
025 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
026 174-0037 Retainer bolt $14.63 2 usually ships 4-14 days
027 174-1580 3/8 x 2 Zinc plated clevis pin Call for price 1 usually ships 1-5 days
028 174-0201 Cotter pin $1.20 2 usually ships 4-14 days
029 174-1710 3/8 x 2 1/4 Clevis pin Call for price 1 usually ships 1-5 days
030 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
031 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 8 ships same day
032 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 12 ships same day
033 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
034 174-1711 Lift bracket assembly Call for price 2 usually ships 1-5 days
035 174-1712 Gasket recycle filter zinc plated Call for price 8 usually ships 1-5 days
036 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price usually ships 3-26 days
