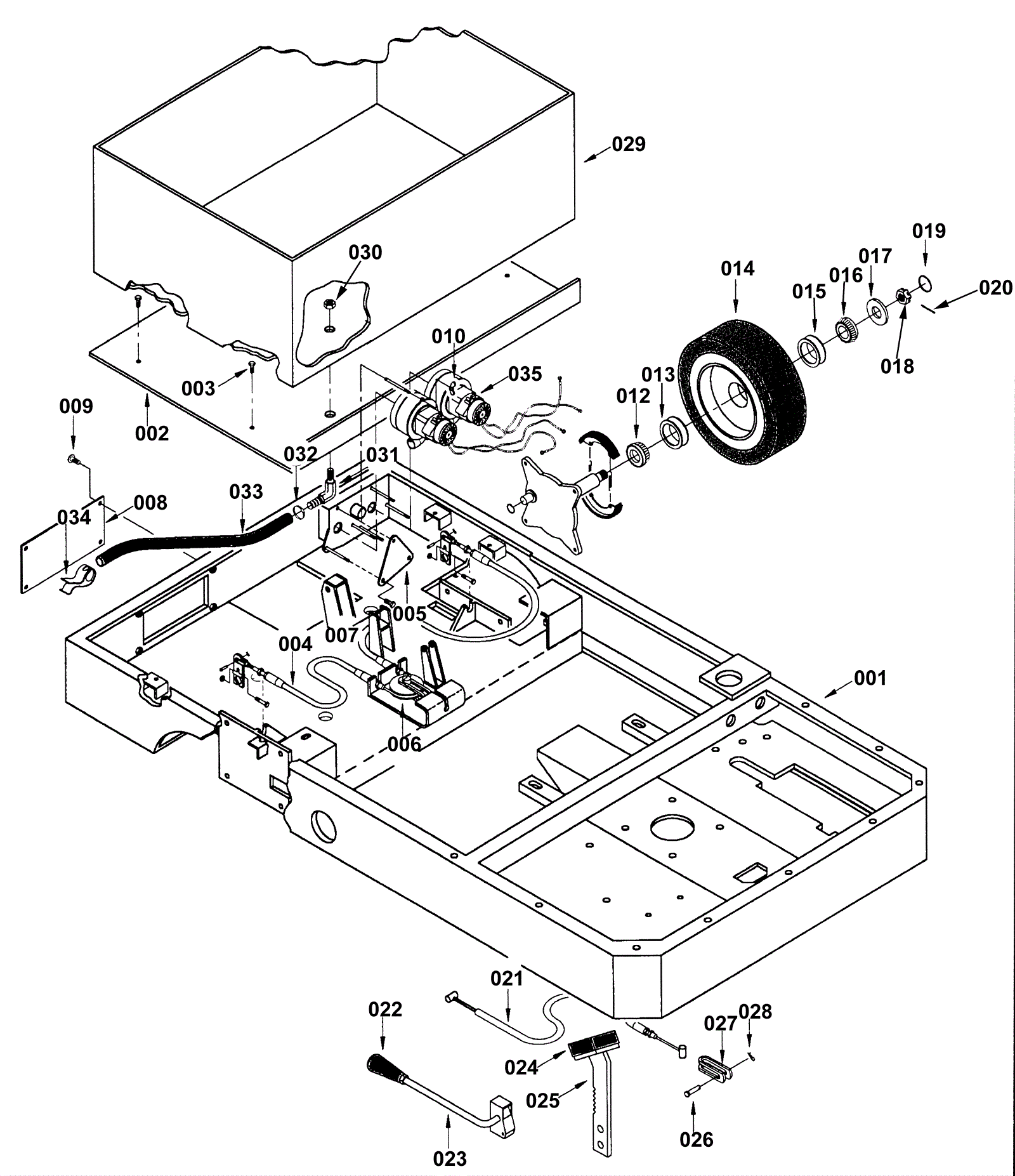

3200 Brakes, Wheels, and Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Main frame weldment usually ships 3-26 days
002 174-1631 Battery tray weldment Call for price 1 usually ships 1-5 days
003 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 ships same day
004 174-1632 Cable brake $202.15 1 usually ships 1-5 days
005 174-1633 Plated vacuum motor cover Call for price 1 usually ships 1-5 days
006 174-1634 Nylon pulley $9.33 1 usually ships 1-5 days
007 999-1214 Screw 1/4-20 x 3/4 truss head slotted stainless steel $1.23 3 usually ships 19-32 days
008 174-1635 Plated rear frame door Call for price 1 usually ships 1-5 days
009 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
010 999-0306 Nut 1/4-20 wing zinc plated $0.99 3 ships same day
012 174-1636 Tapered bearing cone $43.89 4 usually ships 9-11 days
013 174-1637 Tapered bearing cup $16.43 4 usually ships 9-11 days
014 174-1638 Rear wheel (OBSOLETE) $1,308.70 2 usually ships 9-11 days
015 174-1637 Tapered bearing cup $16.43 4 usually ships 9-11 days
016 174-1636 Tapered bearing cone $43.89 4 usually ships 9-11 days
017 174-1641 Flat washer 1 1/16 x 2 x 5/32 $1.19 2 usually ships 1-5 days
018 174-1642 Nut 1-14 slotted $10.08 2 usually ships 1-5 days
019 174-1643 Greese cap wheel $3.93 2 usually ships 9-11 days
020 174-7020 Cotter pin $1.08 2 usually ships 9-11 days
021 174-1647 Break pedal cable $55.48 1 usually ships 1-5 days
022 174-0387 Knob $10.34 1 usually ships 9-11 days
023 174-1645 Emergency break weldment $67.20 1 usually ships 1-5 days
024 174-0102 Pedal pad $8.44 1 usually ships 9-11 days
025 174-1646 Pedal break $33.53 1 usually ships 1-5 days
026 174-0195 Clevis pin $0.86 1 usually ships 9-11 days
027 174-1647 Break pedal cable $55.48 1 usually ships 1-5 days
028 174-0201 Cotter pin $1.08 1 usually ships 9-11 days
029 174-0349 Battery tray liner $117.94 1 usually ships 1-5 days
030 174-0517 Nut 1/4 plastic $1.22 1 usually ships 1-5 days
031 174-0364 90 degree nozzle body $3.67 1 usually ships 1-5 days
032 999-2001 Screw 8-32 x 2 pan head phillips stainless steel $0.99 1 usually ships 19-32 days
033 174-0369 18 inch silicone hose $13.31 1 usually ships 9-11 days
034 174-0370 Shut-off hose clamp $1.48 1 usually ships 9-11 days
035 174-1648 Fan vacuum 36 vold motor Call for price 1 usually ships 1-5 days
