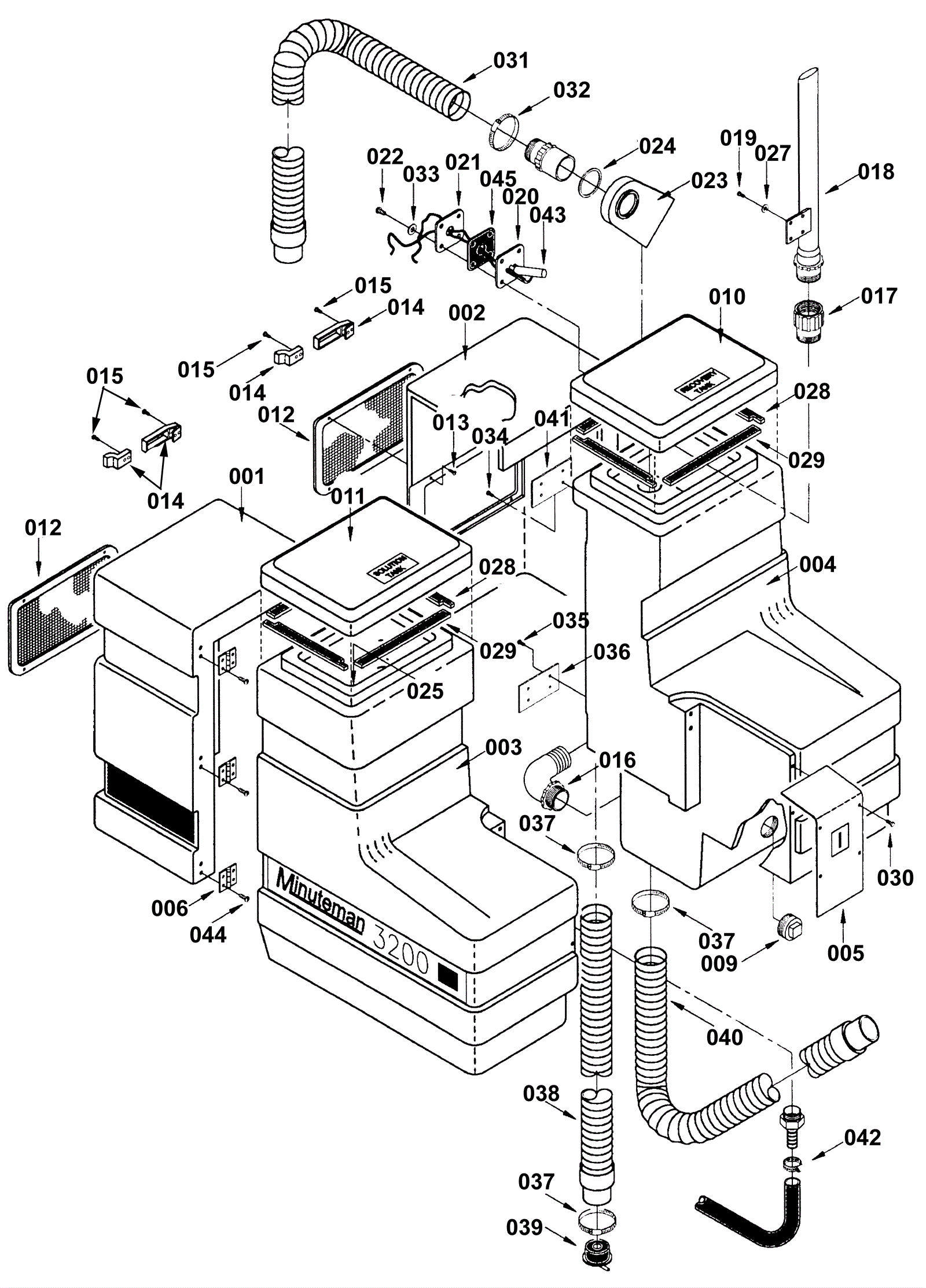

3200 Body Assembly - Tanks and Battery Cover Doors

#PartDescriptionPriceReqNotesAvailability
001 174-1760 Burgundy battery cover Call for price 1 usually ships 1-5 days
002 N/A Not available Call for price 1 340 Burgundy battery cover usually ships 3-26 days
003 174-1605 3200 Solution tank assembly Call for price 1 usually ships 1-5 days
004 174-1606 3200 Recovery tank assembly Call for price 1 usually ships 1-5 days
005 174-1607 Solution control panel plate Call for price 1 usually ships 1-5 days
006a 174-1608 34 Right cover hinge Call for price 3 usually ships 1-5 days
006b 174-1609 34 Left cover hinge $15.97 3 usually ships 1-5 days
008 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 24 ships same day
009 174-1610 2 Inch square pvc plug Call for price 1 usually ships 1-5 days
010 174-1611 340 Burgundy recovery cover Call for price 1 usually ships 1-5 days
011 174-1612 340 Burgundy Solution cover Call for price 1 usually ships 1-5 days
012 174-1613 16 Gauge rear vent screen Call for price 2 usually ships 1-5 days
013 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 8 ships same day
014 174-1614 Soft latch with keeper $59.68 2 usually ships 1-5 days
015 174-5991 Screw #10 x 5/8 plated hi/low $0.99 8 usually ships 4-14 days
016 174-1615 2 Inch barb fitting pp $5.33 1 usually ships 1-5 days
017 174-1332 PVC coupling 1 1/2 inch $7.99 1 usually ships 1-5 days
018 174-1616 1 1/2 C/L 29 1/2 pvc pipe Call for price 1 usually ships 1-5 days
019 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 18 usually ships 1-5 days
020 174-1617 Solution float switch plate Call for price 1 usually ships 1-5 days
021 174-1618 3200 Solution float switch gasket Call for price 1 usually ships 1-5 days
022 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
023 174-3078 Deflector $17.25 1 usually ships 4-14 days
024 174-3097 Washer 2.12 x .03 stainless steel $1.21 1 usually ships 4-14 days
026 174-1629 Float switch $30.91 1 usually ships 1-5 days
027 999-0060 Washer 1/4 split lock plain finish $0.99 18 ships same day
028 174-1621 Short lid gasket Call for price 2 usually ships 1-5 days
029 174-1622 Long lid gasket Call for price 2 usually ships 1-5 days
030 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 4 ships same day
031 174-1623 Drain hose assembly Call for price 1 usually ships 1-5 days
032 174-1624 2 1/2 Hose clamp $1.02 2 usually ships 1-5 days
033 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
034 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 8 ships same day
035 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 8 ships same day
036 174-1625 Rear bottom tank match plate Call for price 1 usually ships 1-5 days
037 174-1624 2 1/2 Hose clamp $1.02 2 usually ships 1-5 days
038 174-1623 Drain hose assembly Call for price 1 usually ships 1-5 days
039 174-1626 Drain hose plug Call for price 1 usually ships 1-5 days
040 174-1627 1 1/2 Inch wireloc hose $5.81 5 ft usually ships 1-5 days
041 174-1620 Rear top tank match plate Call for price 1 usually ships 1-5 days
042 174-1628 Hose clamp $4.52 2 usually ships 1-5 days
043 174-1629 Float switch $30.91 1 usually ships 1-5 days
044 N/A Not available Call for price Screw usually ships 3-26 days
045 N/A Not available Call for price Plate usually ships 3-26 days
N/S 174-1620 Rear top tank match plate Call for price 1 usually ships 1-5 days
