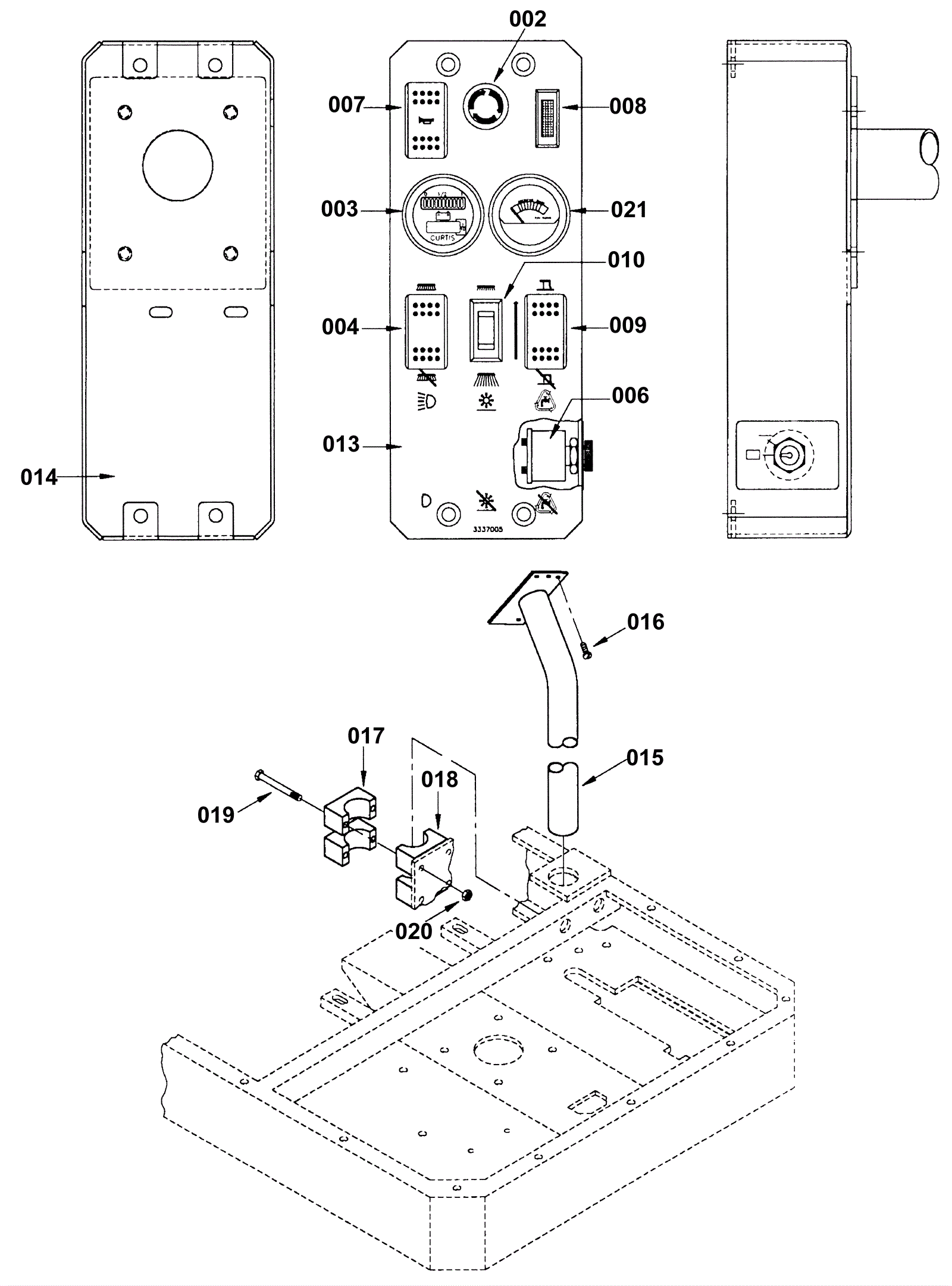

3200 Body Assembly - Instrument Panel

#PartDescriptionPriceReqNotesAvailability
001 174-1590 Contact block Call for price 1 usually ships 1-5 days
002 174-1591 Emergency shut-off switch Call for price 1 usually ships 1-5 days
003 174-1592 Battery / hour meter gauge Call for price 1 usually ships 1-5 days
004 174-1593 Switch on Call for price 1 usually ships 1-5 days
005 174-1594 Carling contura switch plug Call for price 3 usually ships 1-5 days
006 174-1595 Ignition switch Call for price 1 usually ships 1-5 days
007 174-1596 Horn switch $14.18 1 usually ships 1-5 days
008 174-1597 36 volt power indicator light Call for price 1 usually ships 1-5 days
009 174-1593 Switch on Call for price 1 usually ships 1-5 days
010 174-1598 Forward / reverse rocker switch Call for price 1 usually ships 1-5 days
011 174-1594 Carling contura switch plug Call for price 3 usually ships 1-5 days
012 174-1594 Carling contura switch plug Call for price 3 usually ships 1-5 days
013 174-1600 Instrument control panel plate Call for price 1 usually ships 1-5 days
014 174-1601 3200 Instrument pod weldment Call for price 1 usually ships 1-5 days
015 174-1602 3200 Instrument post pod weldment Call for price 1 usually ships 1-5 days
016 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 8 ships same day
017 N/A Not available Call for price Bracket usually ships 3-26 days
018 N/A Not available Call for price Bracket usually ships 3-26 days
019 N/A Not available Call for price Screw usually ships 3-26 days
020 N/A Not available Call for price Nut usually ships 3-26 days
021 N/A Not available Call for price Meter usually ships 3-26 days
