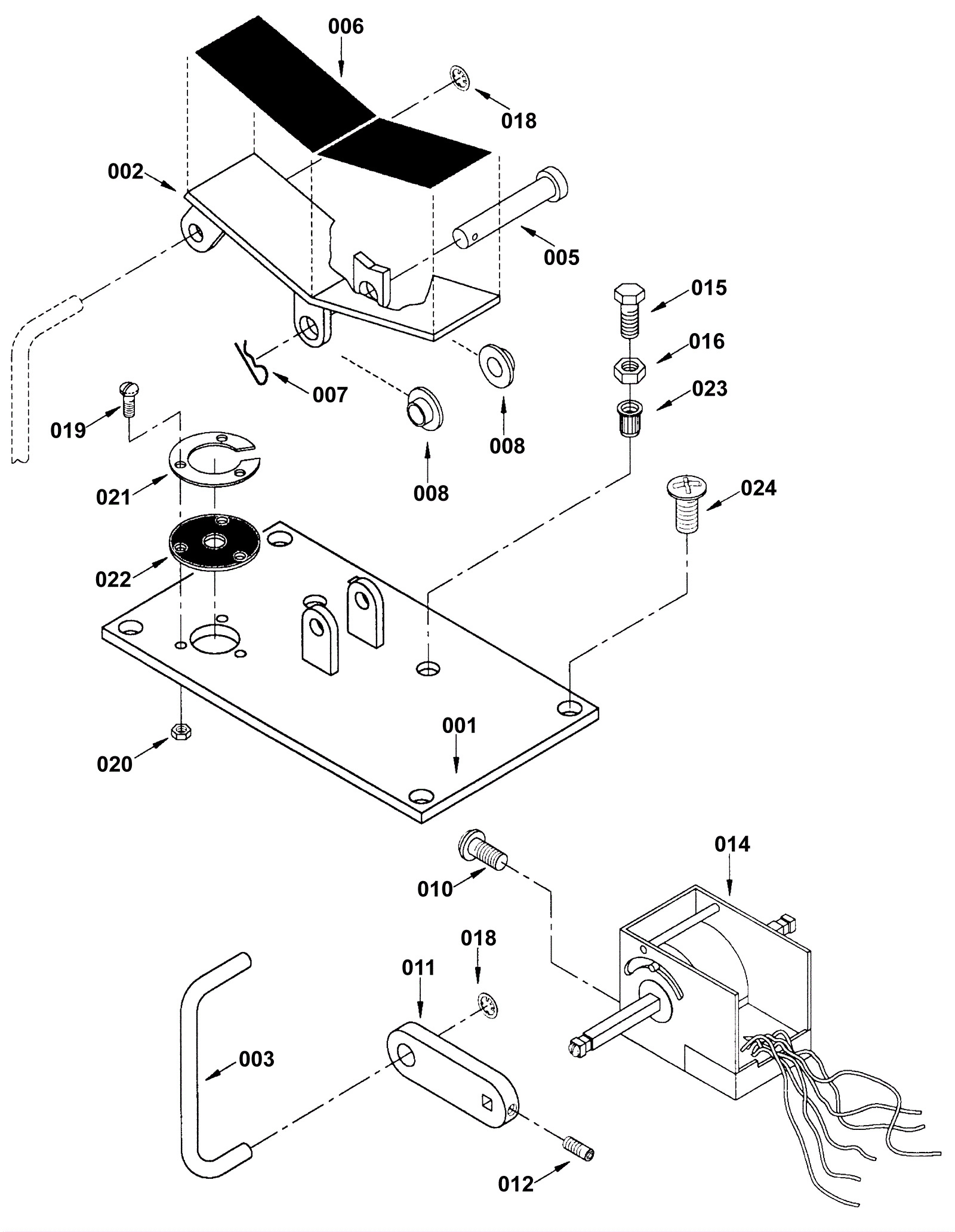

Body Assembly - Directional Control

#PartDescriptionPriceReqNotesAvailability
000 174-1574 Forward / reverse pedal 3200 assembly Call for price 1 usually ships 1-5 days
001 174-1575 forward / reverse throttle mount weldment Call for price 1 usually ships 1-5 days
002 174-1570 41 1/2 Inch black 8 gauge $10.87 1 usually ships 1-5 days
003 174-1577 5/16 x 7/8 zinc plated clevis pin $1.40 1 usually ships 1-5 days
004 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
005 174-1578 3/8 rue ring cotter pin $1.45 2 ships same day
006 174-1579 3200 Forward / reverse pedal decal Call for price 1 usually ships 1-5 days
007 174-1580 3/8 x 2 Zinc plated clevis pin Call for price 1 usually ships 1-5 days
008 174-1581 Plastic main broom bushing Call for price 2 usually ships 1-5 days
009 174-1582 Forward / reverse pivot bar weldment Call for price 1 usually ships 1-5 days
010 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
011 174-1583 3200 Forward / reverse short bar Call for price 1 usually ships 1-5 days
012 174-6426 Screw10-32 x 1/4 set knurled point $1.20 1 usually ships 1-5 days
013 174-1584 Speed nut $0.97 1 usually ships 1-5 days
014 174-0654 Differential sprocket $57.34 1 usually ships 1-5 days
015 174-1585 Screw 5/16 x 18 x 1 1/4 hex $1.20 2 usually ships 1-5 days
016 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
017 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
018 174-1584 Speed nut $0.97 2 usually ships 1-5 days
019 174-1586 Screw 8 x 32 x 1/16 pan $1.20 3 usually ships 1-5 days
020 999-0460 Nut 10-32 hex $0.99 3 ships same day
021 174-1587 Seal retaining ring Call for price 1 usually ships 1-5 days
022 174-1588 Forward / reverse pedal seal Call for price 1 usually ships 1-5 days
023 174-1589 5/16 - 18 unc insert Call for price 2 usually ships 1-5 days
024 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
