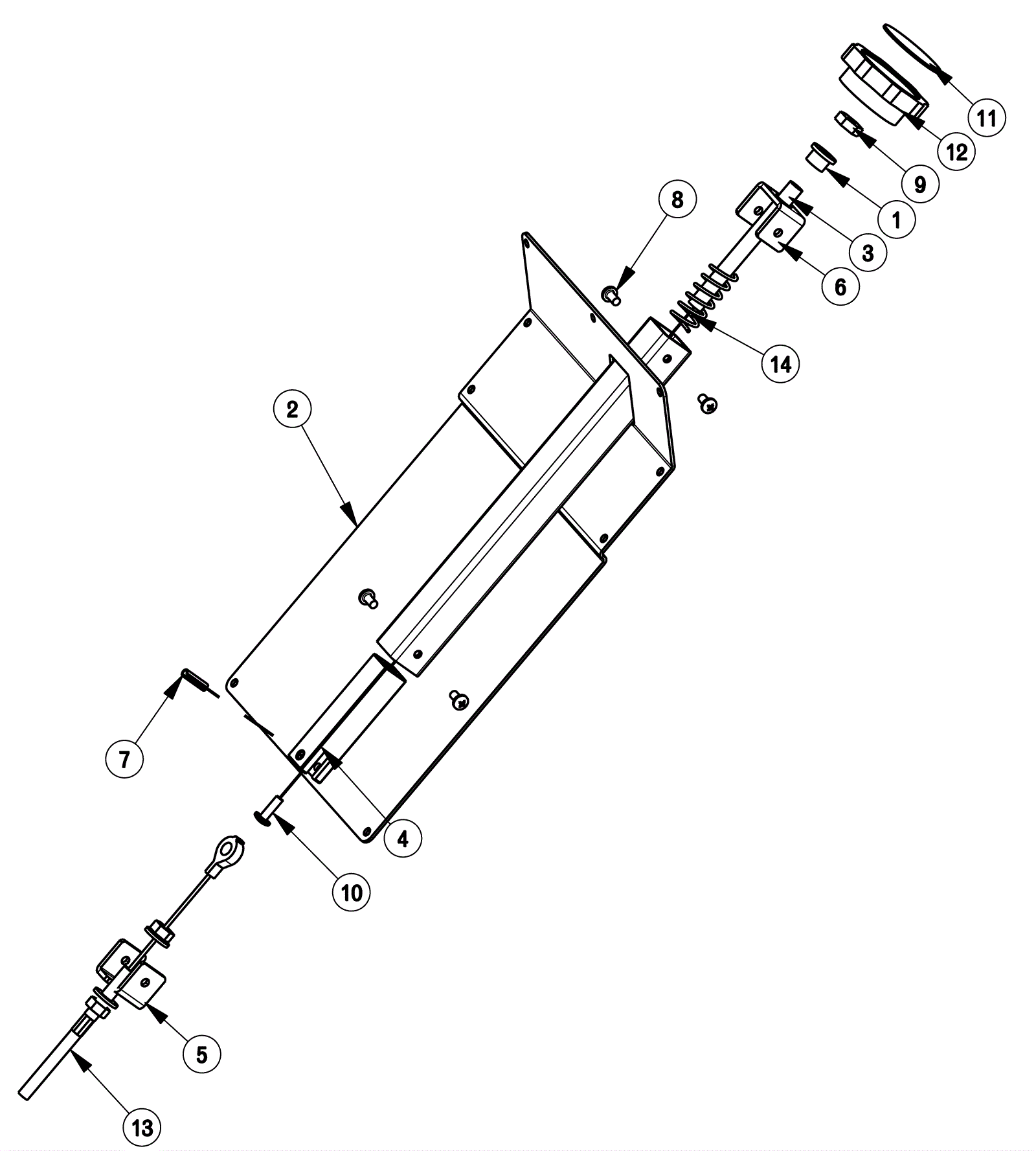

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-0138
|
Bushing |
1 |
|
|
2 |
174-6525
|
Pressure adjustment mount weldment |
1 |
|
|
3 |
174-6526
|
Pressure adjustment screw |
1 |
|
|
4 |
174-6527
|
Pressure adjustment slide |
1 |
|
|
5 |
174-6528
|
Pressure adjustment retainer bracket |
1 |
|
|
6 |
174-6529
|
Pressure adjustment retainer bracket |
1 |
|
|
7 |
174-6530
|
Roll pin 3/16 x 3/4 |
1 |
|
|
8 |
999-0321
|
Screw 10-32 x 3/8 pan head slotted zinc plated |
4 |
|
|
9 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
1 |
|
|
10 |
999-0615
|
Screw 10-24 x 5/8 truss head slotted stainless steel |
1 |
|
|
11 |
174-5203
|
Pad pressure decal |
1 |
|
|
12 |
174-1295
|
Threaded adjustment knob 3/8 x 16 |
1 |
|
|
13 |
174-5178
|
Cable assembly pressure adjusted |
1 |
|
|
14 |
174-0196
|
Compression spring |
1 |
|
|
