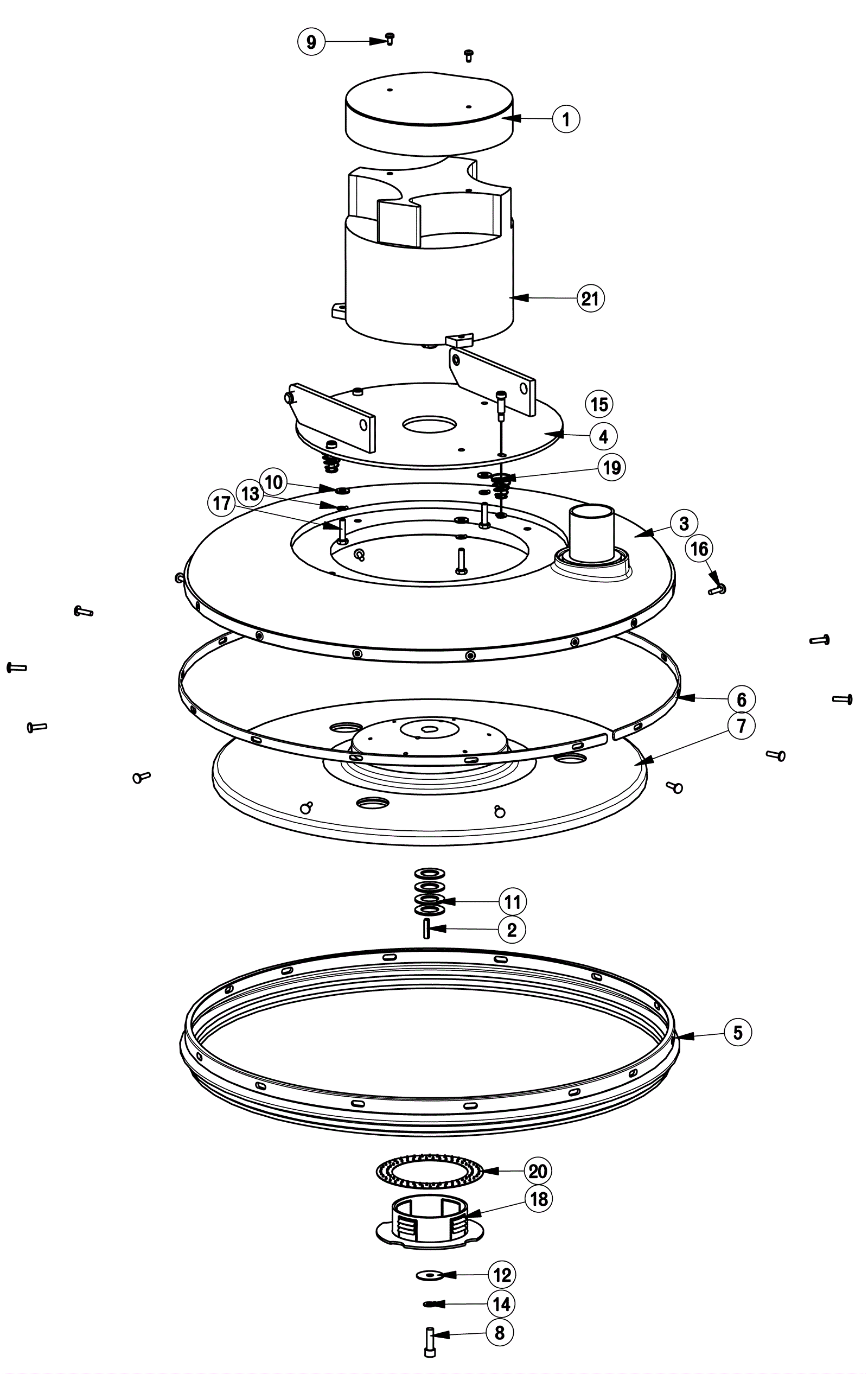

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-6520
|
Grill motor assembly |
1 |
|
|
2 |
174-6521
|
Key 3/16 x 1 |
1 |
|
|
3 |
274-8577
|
20 inch pad driver shroud |
1 |
|
|
4 |
274-7180
|
Plate motor weldment |
1 |
|
|
5 |
274-7735
|
Dust skirt |
1 |
|
|
6 |
274-5153
|
Pad driver strap |
2 |
|
|
7 |
174-0816
|
Multi-flex pad driver |
1 |
|
|
8 |
174-6523
|
Screw 5/16-24 x 1 socket |
1 |
|
|
10 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
11 |
999-0588
|
Washer 7/8 flat stainless steel |
4 |
|
|
12 |
174-2255
|
Washer 5/16 x 7/8 x 3/64 flat |
1 |
|
|
13 |
999-0060
|
Washer 1/4 split lock plain finish |
7 |
|
|
14 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
15 |
174-5804
|
Bolt 5/16 x 3/4 shoulder |
4 |
|
|
17 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
3 |
|
|
18 |
174-5017
|
Center cup |
1 |
|
|
19 |
174-5193
|
Conical Spring |
4 |
|
|
20 |
174-8117
|
Pad grabber |
1 |
|
|
21 |
174-6524
|
Motor |
1 |
|
|
