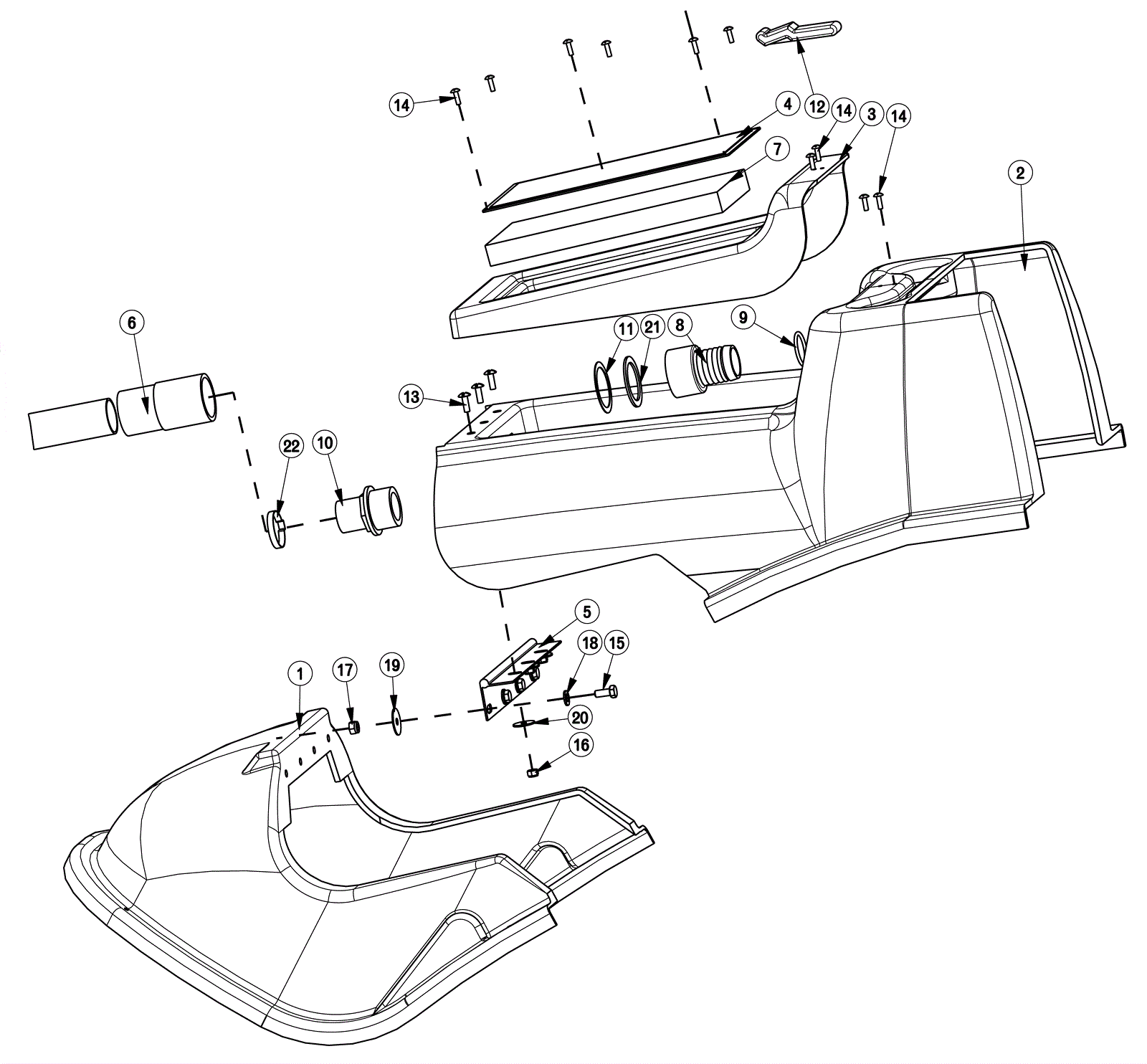

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-6510
|
Fixed top cover |
1 |
|
|
2 |
174-6511
|
Moving top cover |
1 |
|
|
3 |
174-6512
|
Cover bag |
1 |
|
|
4 |
174-6513
|
Filter cover weldment |
1 |
|
|
5 |
174-6514
|
9 3/4 hinge |
1 |
|
|
6 |
174-6515
|
Dust control hose assembly |
1 |
|
|
7 |
174-6516
|
Dust control exhaust filter |
1 |
|
|
8 |
174-6517
|
1 1/2 PVC insert fitting |
1 |
|
|
9 |
174-5899
|
O-ring |
1 |
|
|
10 |
174-0727
|
Adapter |
1 |
|
|
11 |
174-0051
|
Washer stainless steel |
1 |
|
|
12 |
174-3200
|
Latch |
1 |
|
|
13 |
999-0487
|
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
3 |
|
|
14 |
174-5991
|
Screw #10 x 5/8 plated hi/low |
10 |
|
|
15 |
174-0525
|
Bolt 5/16 -18 3/4 hex head steel plated |
4 |
|
|
16 |
999-0190
|
Nut 1/4-20 hex plain finish |
3 |
|
|
17 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
18 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
19 |
174-2255
|
Washer 5/16 x 7/8 x 3/64 flat |
4 |
|
|
20 |
174-0536
|
Washer 1/4 |
3 |
|
|
21 |
174-0048
|
Washer 1 13/16 x 1/8 neoprene |
1 |
|
|
22 |
997-2000
|
Hose clamp |
1 |
|
|
