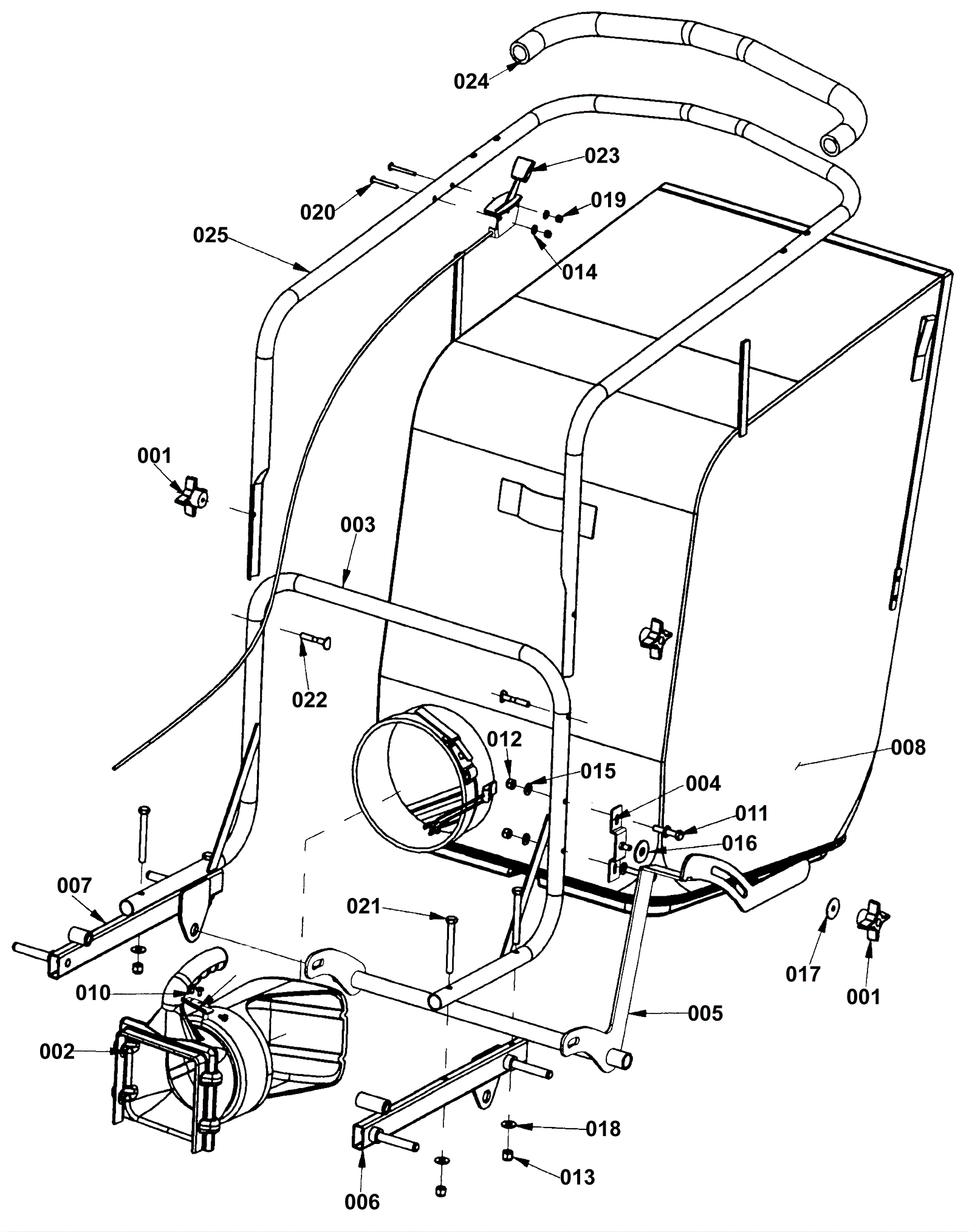

APV Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-7023 Four arm knob 5/16-18 $2.18 3 usually ships 4-14 days
002 174-8036 Bag discharge chute Call for price 1 usually ships 1-5 days
003 174-8037 Lower handle weldment $21.11 1 usually ships 1-5 days
004 174-8038 Height adjustment pin assembly $4.25 1 usually ships 1-5 days
005 174-8028 Height adjustment lever weldment assembly $30.88 1 usually ships 1-5 days
006 174-8027 Siderail weldment assembly $26.24 1 usually ships 1-5 days
007 174-8029 Siderail weldment assembly Call for price 1 usually ships 1-5 days
008b 174-6650 Discharge bag assembly $176.71 1 usually ships 3-9 days
009 174-8040 Switch depression bracket $8.04 1 usually ships 1-5 days
011 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
014 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
015 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
016 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
017 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 1 usually ships 4-14 days
018 999-1363 Washer 7/8 flat stainless steel $3.48 4 ships same day
019 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
020 174-6041 Screw 10-24 x 1 3/4 $0.95 2 usually ships 1-5 days
021 174-8041 Bolt 3/8-16 x 3 1/4 #5 hex head $0.95 4 usually ships 1-5 days
022 N/A Not available Call for price 2 (bolt) usually ships 3-26 days
023 174-8043 Control lever Call for price 1 usually ships 1-5 days
024 174-5323 Handle sleeve $9.38 1 usually ships 4-14 days
025 174-8044 Deluxe upper handle with throttle Call for price 1 usually ships 1-5 days
