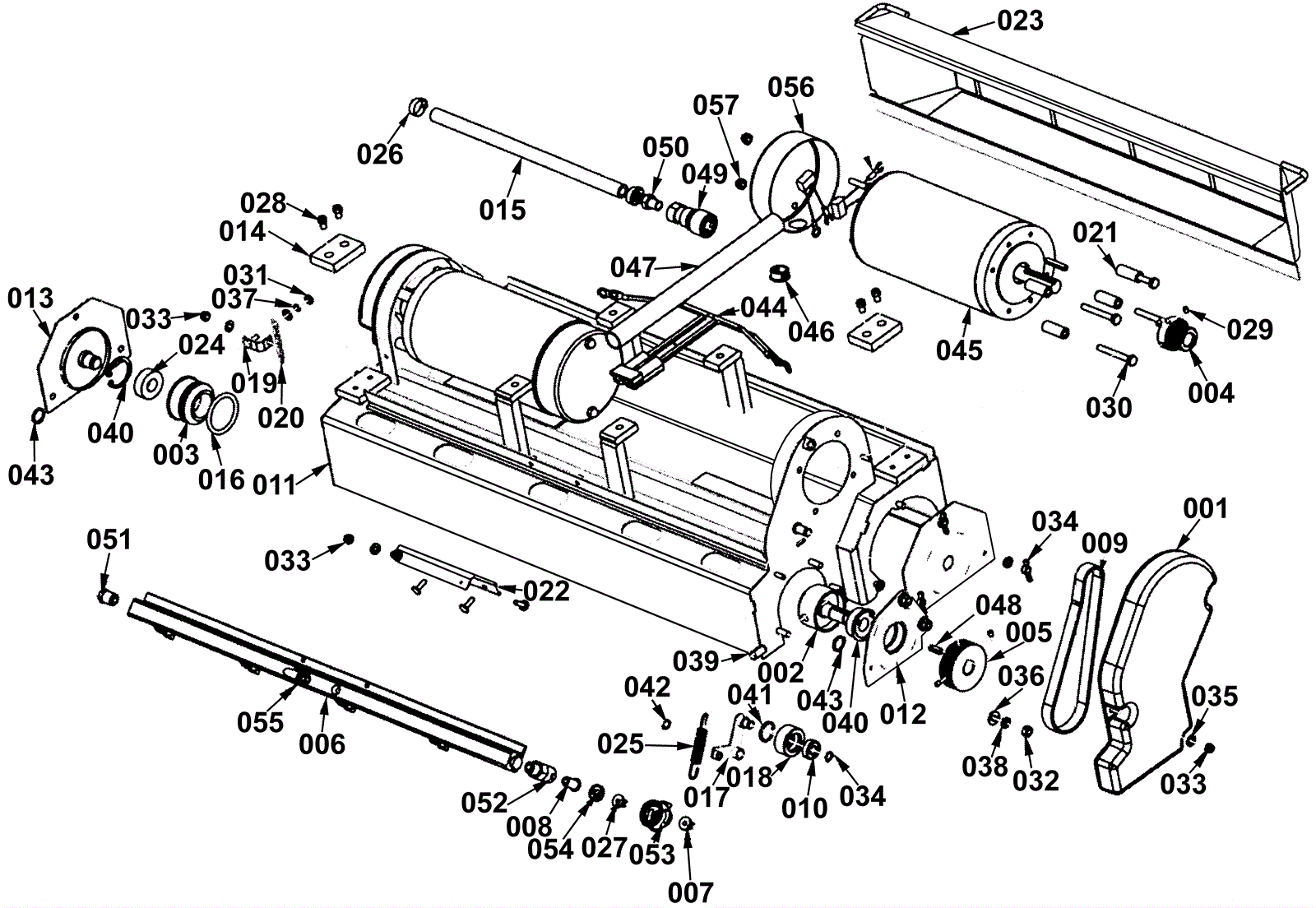

EASYSCRUB 2832 Cylindrical Scrub Deck Assembly - 28 Inch

#PartDescriptionPriceReqNotesAvailability
000 174-6268 Cylindrical scrubdeck assembly 28 inches $3,556.91 11 usually ships 1-5 days
001 174-6404 Cylindrical scrubdeck belt cover assembly $39.65 2 usually ships 4-14 days
002 174-6466 Cylindrical scrubdeck drive hub $234.23 2 usually ships 4-14 days
003 174-6413 Idle shaft weldment $165.05 2 ships same day
004 174-6406 Offset pulley poly v $47.49 2 usually ships 1-5 days
005 174-6407 Driven pulley $35.82 2 usually ships 4-14 days
006 174-6408 Spray bar $112.77 1 usually ships 4-14 days
007 174-6409 Spray tip $12.63 3 usually ships 4-14 days
008 174-6410 Check valve $17.61 5 usually ships 4-14 days
009 174-6411 18 inch j belt $15.09 2 usually ships 4-14 days
010 174-6467 Radial bearing 3/8 $14.36 2 usually ships 4-14 days
011 174-6468 28 inch cylindrical scrubdeck weldment $439.29 1 usually ships 1-5 days
012 174-6466 Cylindrical scrubdeck drive hub $234.23 2 usually ships 4-14 days
013 174-6413 Idle shaft weldment $165.05 2 ships same day
014 174-6355 Wear plate Call for price 2 usually ships 4-14 days
015 174-6414 28 inch cylindrical deck solution feed hose $4.12 1 usually ships 1-5 days
016 174-6415 O ring $1.58 2 usually ships 4-14 days
017 174-6416 Tension arm weldment $91.63 2 usually ships 1-5 days
018 174-6470 Belt idler $31.00 2 usually ships 4-14 days
019 174-6420 Cylindrical scrubdeck drag chain bracket $22.72 1 usually ships 1-5 days
020 174-6421 Cylindrical scrubdeck drag chain $5.35 1 usually ships 1-5 days
021 174-6422 Cylindrical scrub deck motor stand off $6.49 8 usually ships 1-5 days
022 174-6423 Spray head mounting bracket $49.82 1 usually ships 1-5 days
023 174-6471 28 inch cylindrical scrubdeck debris box weldment $221.00 1 usually ships 4-14 days
024 174-6425 Radial ball bearing 5/8 $27.54 4 usually ships 4-14 days
025 174-0008 Return spring $2.78 2 usually ships 4-14 days
026 997-2001 Hose clamp $2.42 2 ships same day
027 174-6472 Spray tip $27.37 2 usually ships 4-14 days
028 174-5760 Screw 1/4 20 x .37 socket cap $0.97 4 usually ships 1-5 days
029 174-6426 Screw10-32 x 1/4 set knurled point $1.20 8 usually ships 1-5 days
030 999-1892 Screw 1/4-20 x 2 hex cap stainless steel $1.52 8 ships same day
032 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
033 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 10 ships same day
034 174-6428 Nut 1/4-20 wing steel zinc $1.00 6 usually ships 4-14 days
035 999-0006 Washer 3/16 flat zinc plated $0.99 9 ships same day
036 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
037 174-5259 Washer #10 helical $0.97 1 usually ships 4-14 days
038 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
039 174-6473 Roll pin $1.60 4 usually ships 1-5 days
040 174-6429 Internal retaining ring $1.20 4 usually ships 1-5 days
041 174-6430 Internal retaining ring $0.97 2 usually ships 4-14 days
042 174-6431 External retaining ring 3/8 $0.97 3 usually ships 4-14 days
043 174-6432 External retaining ring 5/8 $0.97 4 usually ships 4-14 days
044 174-6433 Deck cylindrical wire assembly $35.38 1 usually ships 1-5 days
045 174-6434 1800rpm motor 1hp $644.63 2 usually ships 1-5 days
046 174-3435 Spray nozzle $8.98 2 usually ships 1-5 days
047 174-6436 11 inch cable wrap $3.57 1 usually ships 1-5 days
048 174-0889 Key square $1.88 2 usually ships 4-14 days
049 174-3039 Female coupler $46.04 1 usually ships 4-14 days
050 174-0078 Barb $6.66 1 usually ships 4-14 days
051 174-3041 Pipe plug $1.55 2 usually ships 4-14 days
052 174-3046 Body inlet connector $8.62 5 usually ships 4-14 days
053 174-3047 Cap $9.31 5 usually ships 4-14 days
054 174-3088 Cap gasket $2.97 5 usually ships 4-14 days
055 164-0187 90 degree elbow barb $6.23 1 ships same day
056 174-6372 Fork capacitor $15.00 4 usually ships 4-14 days
057 999-0429 Nut 1/4-20 acorn nickel plated $0.99 4 ships same day
058 174-6437 Repalcement motor terminals cover $14.67 2 usually ships 1-5 days
