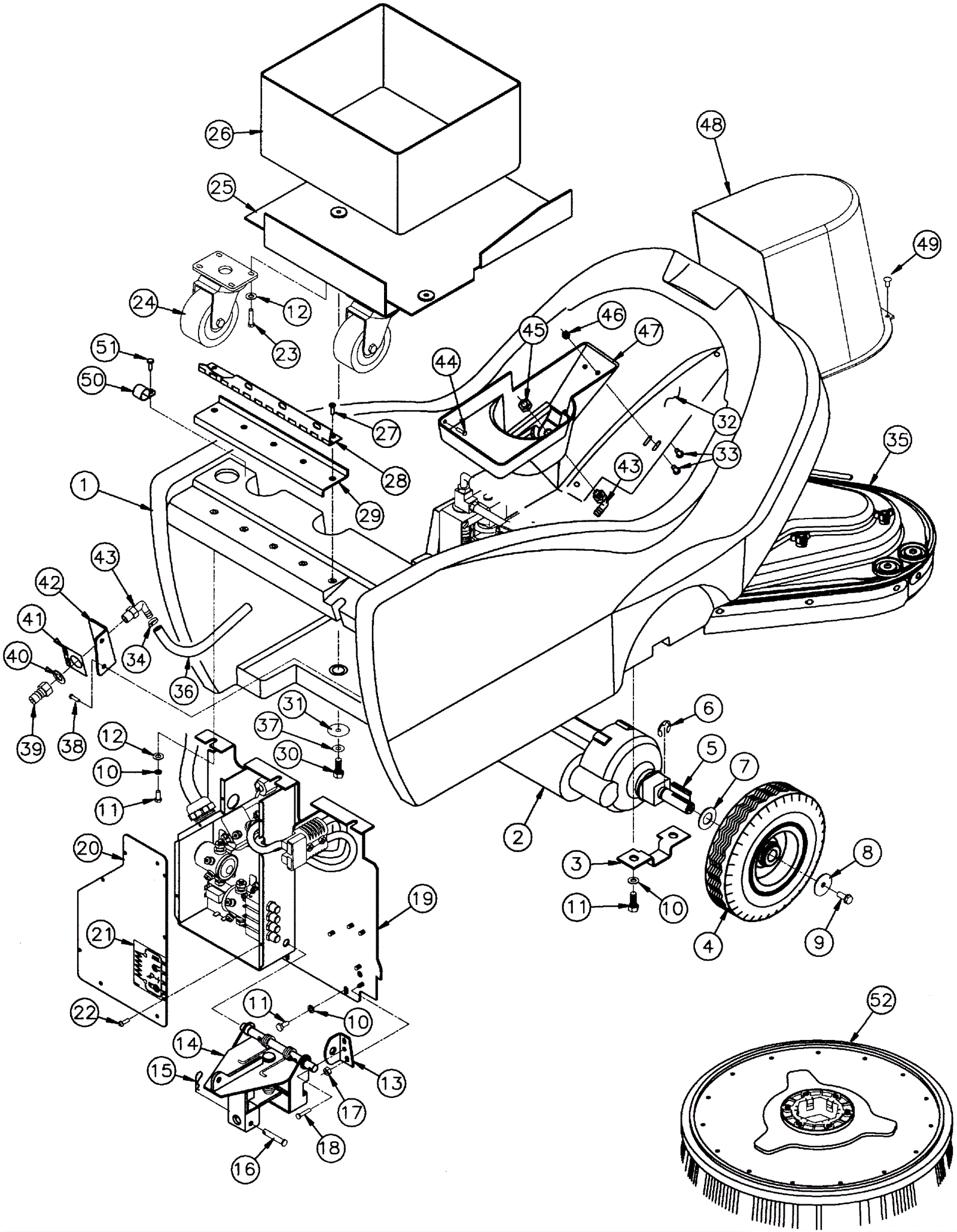

240X Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5863 Base $836.48 1 usually ships 1-5 days
2 174-5864 Transaxle 24v $1,125.15 1 usually ships 1-5 days
3 174-5865 Transaxle mount $14.60 2 usually ships 1-5 days
4 174-5866 Pneumatic tire $103.17 2 ships same day
5 174-5717 Square keyway $1.13 2 usually ships 4-14 days
6 174-5728 Retaining ring $1.06 2 usually ships 4-14 days
7 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
8 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
9 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
10 999-0060 Washer 1/4 split lock plain finish $0.99 19 ships same day
11 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 19 usually ships 1-5 days
12 999-0016 Washer 1/4 flat plain finish $0.99 11 ships same day
13 174-5867 Pin bracket $9.38 1 usually ships 1-5 days
14 174-5868 Squeegee mechanism assembly $253.65 1 usually ships 4-14 days
15 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
16 174-1186 Clevis pin 5/16 x 1 11/16 $4.39 1 usually ships 4-14 days
17 174-0575 Nut 1/4 NPT nylon $1.00 3 usually ships 4-14 days
18 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
19 174-5870 Back panel assembly $362.12 1 usually ships 1-5 days
20 174-5871 Electrical box cover $17.70 1 usually ships 4-14 days
21 174-5872 CB decal $3.00 1 usually ships 1-5 days
22 174-2286 Screw 10 x 1/2 $0.97 4 usually ships 1-5 days
23 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 8 ships same day
24a 174-1523 3 1/2 inch caster $25.14 2 (new style) ships same day
24b 174-0702 Caster with wheel 3.5 diameter $38.02 2 (old style) usually ships 4-14 days
25 174-5873 Battery tray weldment $141.04 1 usually ships 1-5 days
26 174-1183 Battery liner $100.26 1 usually ships 1-5 days
27 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
28 174-5874 Hinge $25.90 1 usually ships 1-5 days
29 174-5875 Hinge plate $26.65 1 usually ships 1-5 days
30 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 4 usually ships 1-5 days
31 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
32 174-5876 Bottom cover $12.17 1 usually ships 1-5 days
33 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 3 ships same day
34 997-2001 Hose clamp $2.42 2 ships same day
35 174-5877 Scrubhead assembly for 240X model $2,482.91 1 usually ships 1-5 days
36 174-5878 Auxillary hose 48 1/2 $8.52 1 usually ships 1-5 days
37 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
38 174-2289 Screw 10 x 5/8 hi/lo $1.90 2 usually ships 4-14 days
39 174-0218 Male quick coupler $26.78 1 usually ships 1-5 days
40 999-0855 Washer 9/16 SAE flat $0.99 1 ships same day
41 174-0219 Auxilary pump decal $2.10 1 usually ships 1-5 days
42 174-5879 Quick disconnect bracket $5.82 1 usually ships 1-5 days
43 164-0187 90 degree elbow barb $5.66 2 ships same day
44 174-5991 Screw #10 x 5/8 plated hi/low $0.99 1 usually ships 4-14 days
45 174-0575 Nut 1/4 NPT nylon $1.00 1 usually ships 4-14 days
46 174-3171 Nut 10-24 flange wizz $1.20 3 usually ships 4-14 days
47a 274-5195 RESERVOIR $55.93 1 (new style) usually ships 1-5 days
47b 174-5880 Reservoir $53.45 1 (old style) usually ships 1-5 days
48 174-5881 Motor cover for 240X model $23.45 1 usually ships 1-5 days
49a 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 (new style) ships same day
49b 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 2 (old style) ships same day
50 174-1531 Clamp $4.64 1 usually ships 1-5 days
51 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 1 ships same day
52a 996-0725 Pad driver $148.93 2 usually ships 4-14 days
52b 996-0726 Nylon brush $163.98 2 usually ships 4-14 days
52c 996-1009 Polypropelene scrubbing brush $296.42 2 usually ships 1-5 days
