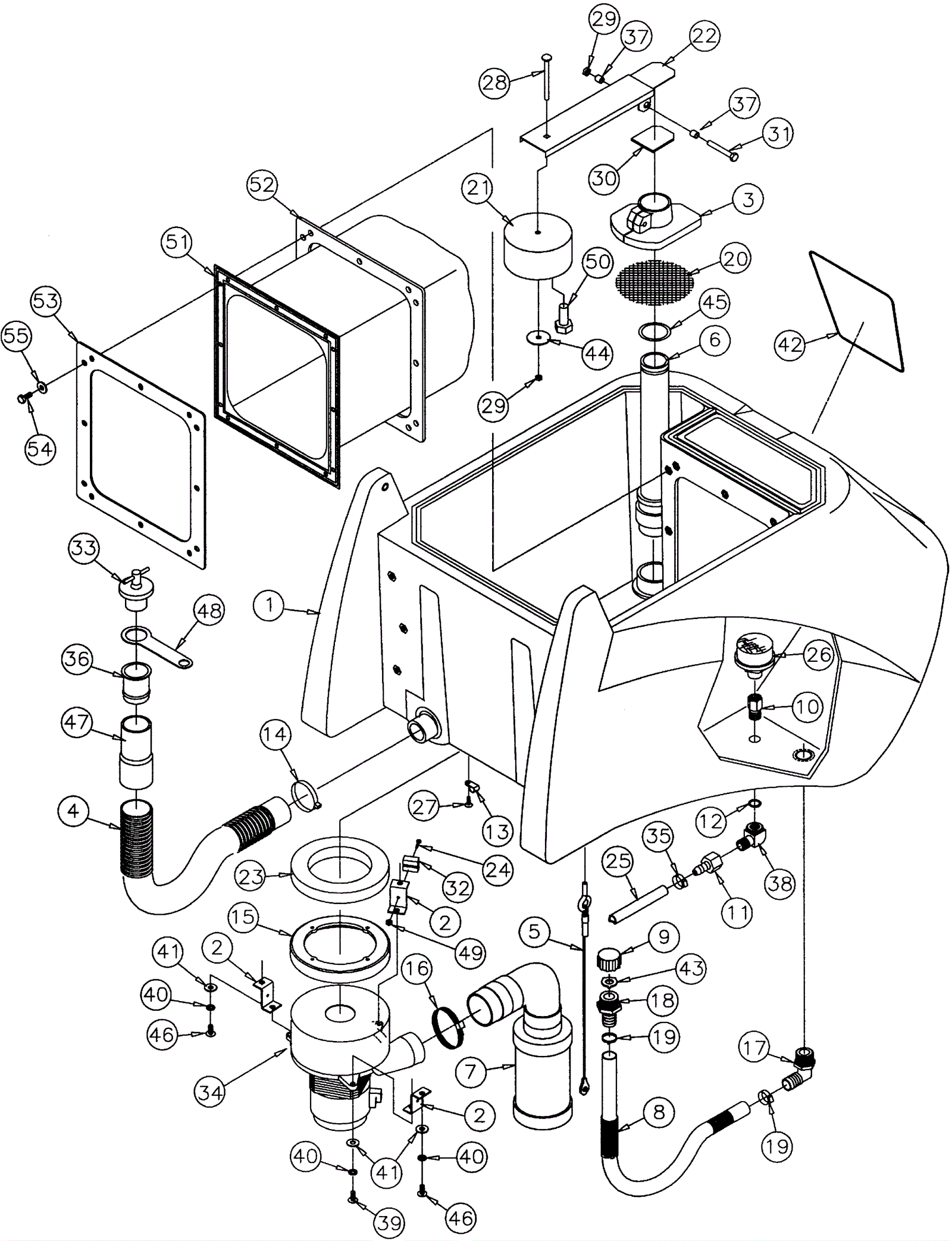

240X Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 274-9393 SOL/REC TANK MACHINED $648.27 1 (new style) usually ships 1-5 days
1b 174-5863 Base $836.48 1 (old style) usually ships 1-5 days
2 174-5884 Vacuum motor bracket $20.66 3 usually ships 1-5 days
3 174-0721 Float housing $115.43 1 usually ships 4-14 days
4 174-0088 Drain hose assembly $30.87 1 usually ships 4-14 days
5 174-5886 Tank cable $6.66 1 usually ships 1-5 days
6 174-5887 Stand pipe assembly $43.49 1 (includes 45) usually ships 1-5 days
7 174-5888 Muffler assembly $203.03 1 usually ships 1-5 days
8 174-5889 Solution drain hose 3/4 $28.10 1 usually ships 1-5 days
9 174-5890 Garden hose cap $1.33 1 usually ships 4-14 days
10 174-0072 Brass adapter $5.88 1 usually ships 4-14 days
11 174-0074 3/8 brass hose barb $5.19 1 usually ships 1-5 days
12 174-0073 O-ring $1.10 1 usually ships 1-5 days
13a 174-3001 Bag clip retainer $8.87 3 (new style) usually ships 1-5 days
13b 174-0058 Plastic cable clamp $1.18 3 (old style) usually ships 1-5 days
14 997-2000 Hose clamp $2.37 1 ships same day
15a 164-0881 Vacuum motor gasket $12.20 1 (OEM) usually ships 3-5 days
15b 991-3029 Vacuum motor gasket $1.89 1 (NON-OEM) ships same day
16 174-5175 Hose clamp $6.79 1 usually ships 1-5 days
17 174-5891 Elbow 3/4 x 3/4 barb pp $2.66 1 usually ships 1-5 days
18 174-5892 Hose barb $1.54 1 usually ships 4-14 days
19 174-6011 Hose clamp $3.88 2 usually ships 4-14 days
20 174-0695 Filter screen $10.12 1 usually ships 4-14 days
21 174-5893 Foam float $4.54 1 usually ships 4-14 days
23 174-2282 Gasket $7.99 1 usually ships 4-14 days
24 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 1 ships same day
25 174-5895 Solution hose $29.71 2 usually ships 1-5 days
26 174-0071 Solution strainer $27.36 1 usually ships 4-14 days
27 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 3 ships same day
28 999-0607 Screw 1/4-20 x 3 carriage head stainless steel $3.30 1 ships same day
29 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
30 174-5896 Shut off gasket $3.28 1 usually ships 4-14 days
31 174-6005 Screw 1/4 - 20 x 2 1/4 $1.20 1 usually ships 1-5 days
32 174-0157 Terminal block $4.86 1 usually ships 1-5 days
33 174-2264 Drain plug $27.49 1 usually ships 4-14 days
34a 174-8438 24V 3 stage vacuum motor $251.07 1 (new style) usually ships 1-5 days
34b 991-1210 24V 3 stage vacuum motor tangential $82.58 1 (old style) ships same day
35 997-2000 Hose clamp $2.37 2 ships same day
36 174-0729 Tube hose $18.10 1 usually ships 4-14 days
37 174-3076 Bushing $6.30 2 usually ships 1-5 days
38 174-0075 90 Degree elbow barb $9.58 1 usually ships 4-14 days
39 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 3 ships same day
40 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
41 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
42 174-5897 240X decal $8.25 1 usually ships 1-5 days
43 174-5898 Washer black vinyl $1.24 1 usually ships 4-14 days
44 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
45 174-5899 O-ring $0.93 1 usually ships 4-14 days
46 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 3 ships same day
47 174-5900 Grey vinyl hose cuff $9.88 1 usually ships 1-5 days
48 174-6442 Drain plug retaining strap $6.10 1 usually ships 4-14 days
49 999-0195 Nut 6-32 hex plain $0.99 1 ships same day
50 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 2 ships same day
51 174-5901 Bladder bag $184.73 1 usually ships 4-14 days
52 174-5902 Bladder gasket (OBSOLETE) $19.46 1 usually ships 4-14 days
53 174-5903 Bladder frame $208.67 1 usually ships 1-5 days
54 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 12 ships same day
55 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
