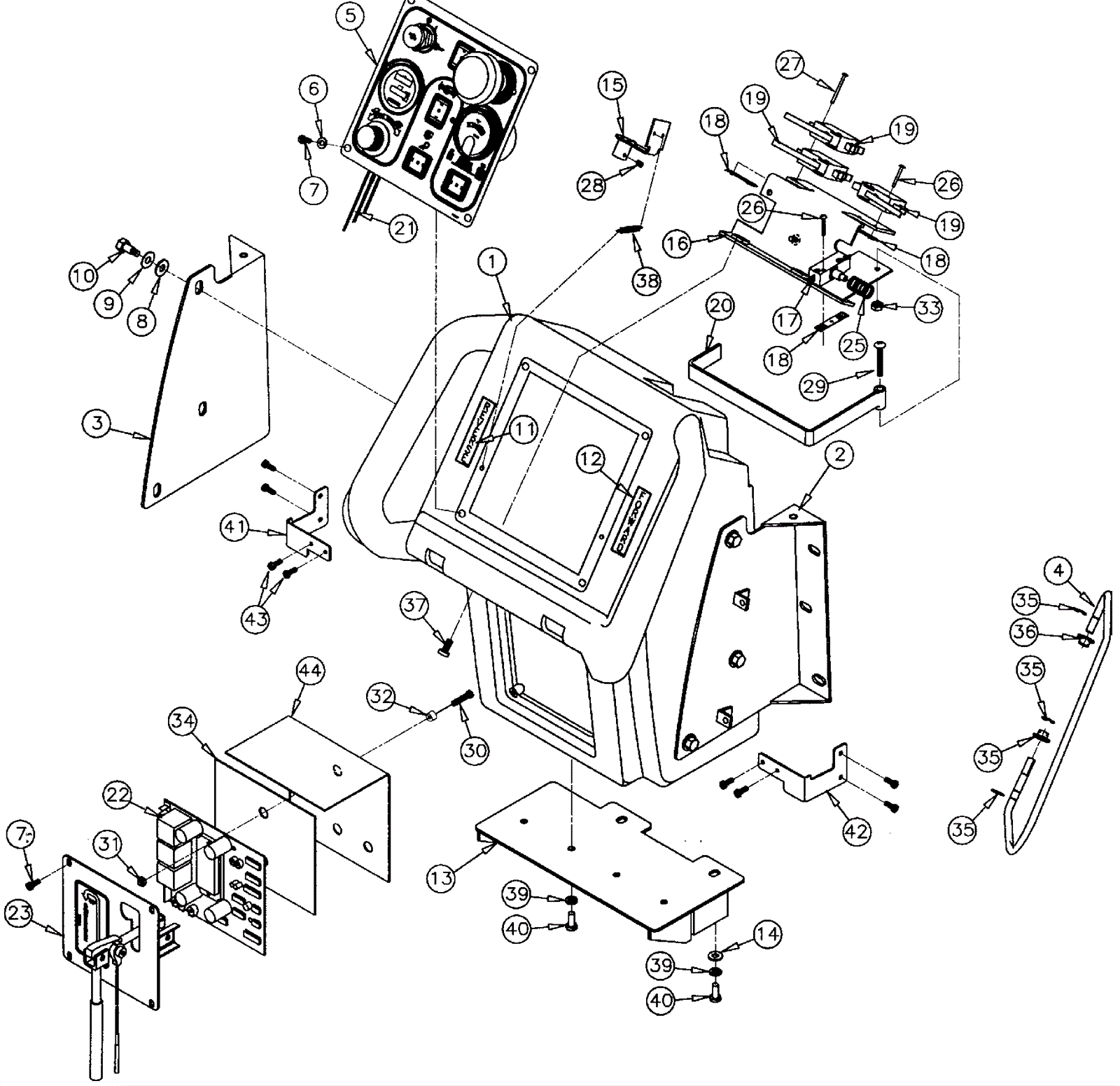

240X Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5920 Handle console 200 $106.70 1 usually ships 1-5 days
2 174-5921 Right console bracket Call for price 1 usually ships 1-5 days
3 174-5922 Left console bracket Call for price 1 usually ships 1-5 days
4 174-5923 Coated handle wire $35.33 2 usually ships 1-5 days
5 174-5924 Dashboard assembly Call for price 1 usually ships 1-5 days
6 174-0532 Washer 7/32 x 3/64 nylon $0.97 4 usually ships 4-14 days
7 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 8 ships same day
8 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
9 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
10 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 6 usually ships 1-5 days
11 174-5925 Reverse decal $8.52 1 usually ships 1-5 days
12 174-5926 Forward decal $8.52 1 usually ships 1-5 days
13 174-5927 Hinge bracket weldment $118.78 1 usually ships 1-5 days
14 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
15 174-5928 Cam weldment $82.56 2 usually ships 1-5 days
16 174-5929 Switch bracket weldment $48.60 1 usually ships 1-5 days
17 174-4024 Switch $24.53 1 usually ships 4-14 days
18 174-0413 Tinnerman nut $0.97 3 usually ships 1-5 days
19 174-0388 Micro switch $25.43 3 usually ships 4-14 days
20 174-5930 Lever switch $52.04 1 usually ships 1-5 days
21 174-5820 Harness console for the 200x model Call for price 1 usually ships 1-5 days
22a 274-9553 CONTROLLER-SPD 24V 1203A225 $794.66 1 (new style) usually ships 1-5 days
22b 174-0535 24V speed control board $884.10 1 (old style) usually ships 1-5 days
23 174-5931 Squeegee lift assembly $372.73 1 usually ships 1-5 days
25 174-5749 Compression spring $3.17 1 usually ships 4-14 days
26a 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 4 (new style) ships same day
26b 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 4 (old style) ships same day
27 174-5932 Screw 6-32 x 1 3/4 steel plated $1.10 2 usually ships 1-5 days
28 174-5737 Screw 1/4-20 x 1/4 set $0.97 2 usually ships 1-5 days
29 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 1 ships same day
30 174-5933 Screw #8-32 x 1 $0.97 2 usually ships 4-14 days
31 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
32 174-5938 S-C board spacer $4.91 2 usually ships 1-5 days
33 174-3040 Nylon flanged bushing $4.23 1 usually ships 4-14 days
34 174-0264 Insulator $5.83 1 usually ships 1-5 days
35 174-2104 Retaining ring $0.97 6 usually ships 4-14 days
36 174-3040 Nylon flanged bushing $4.23 4 usually ships 4-14 days
37 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
38 174-5934 Spring $6.27 2 usually ships 4-14 days
39 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
40 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 6 usually ships 1-5 days
41 174-5935 Right bail stop $28.65 1 usually ships 1-5 days
42 174-5936 Left bail stop $3.15 1 usually ships 1-5 days
43 174-5991 Screw #10 x 5/8 plated hi/low $0.99 8 usually ships 4-14 days
44 174-5937 Moisture guard $1.52 1 usually ships 1-5 days
N/S 174-5800 Squeegee lift cable $14.63 1 usually ships 4-14 days
