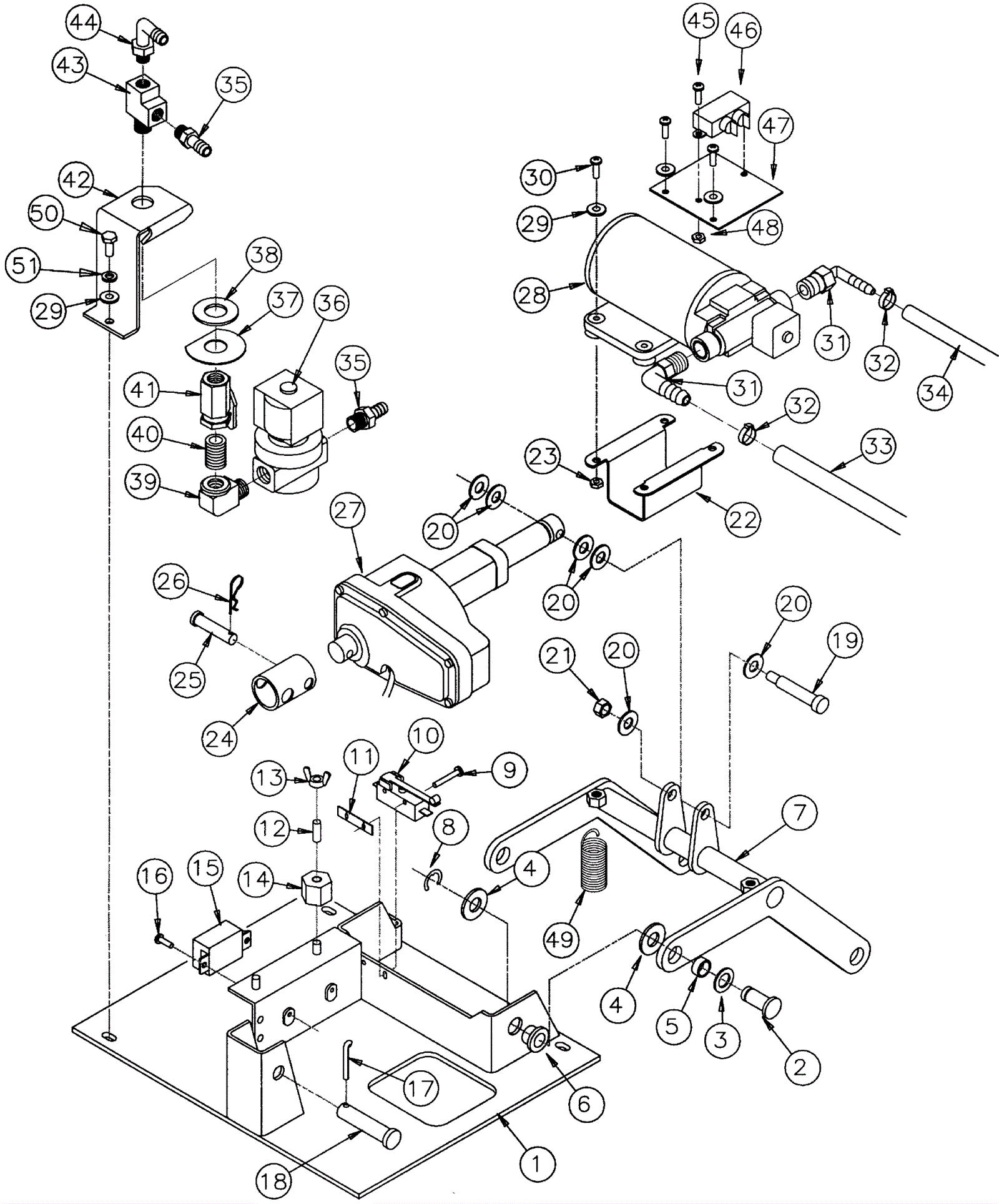

240X Motor Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5904 Deluxe base plate weldment $185.07 1 usually ships 1-5 days
2 174-0132 Cotter pin $2.44 2 ships same day
3 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 2 usually ships 4-14 days
4 999-0349 Washer 5/8 SAE flat $0.99 4 ships same day
5 174-0123 Bushing $9.04 2 usually ships 1-5 days
6 174-0120 Bushing $2.63 2 usually ships 4-14 days
7 174-5847 Lift weldment for 240X model $195.92 1 usually ships 1-5 days
8 174-0178 1/2 inch external retaining ring $0.99 2 usually ships 4-14 days
9 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
10 174-0406 Snap switch $18.50 1 usually ships 4-14 days
11 174-0413 Tinnerman nut $0.97 1 usually ships 1-5 days
12 174-0165 Brass stud $5.78 2 usually ships 1-5 days
13 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
14 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
15 174-5906 Terminal block $12.89 1 usually ships 4-14 days
16 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 2 ships same day
17 174-5907 Cotter hair pin $1.20 1 usually ships 1-5 days
18 174-0348 Clevis pin $4.29 1 usually ships 1-5 days
19 174-5908 Bolt 5/16 x 1 3/4 shoulder $1.63 1 usually ships 1-5 days
20 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
21 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
22 174-5909 Pump mounting bracket Call for price 1 usually ships 1-5 days
23 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
24 174-5910 Pivot tube Call for price 1 usually ships 1-5 days
25 174-1264 Clevis pin $3.04 1 usually ships 1-5 days
26 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
27 174-5911 Actuator $836.81 1 usually ships 1-5 days
28 174-0175 24V 100 PSI pump $490.31 1 usually ships 1-5 days
29 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
30 174-3187 Screw 10-24 x 1 stainless steel $0.97 4 ships same day
31 164-0187 90 degree elbow barb $5.66 2 ships same day
32 997-2001 Hose clamp $2.42 2 ships same day
33 174-5912 Hose pump inlet $13.65 1 usually ships 1-5 days
34 174-5913 Hose pump outlet Call for price 1 usually ships 1-5 days
35 174-0094 Hose barb $3.53 2 usually ships 4-14 days
36 174-5914 Water solenoid 24v $252.61 1 usually ships 4-14 days
37 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
38 174-0523 Washer 3/4 x 3/32 neoprene $11.97 1 usually ships 1-5 days
39 174-0075 90 Degree elbow barb $9.58 1 usually ships 4-14 days
40 174-5916 Closed nipple 3/8 $3.33 1 usually ships 4-14 days
41 174-0081 Manual solution valve $30.69 1 usually ships 4-14 days
42 174-5917 Valve bracket $25.16 1 usually ships 1-5 days
43 174-0095 3/8 brass tee $17.42 1 usually ships 1-5 days
44 174-0083 90 degree elbow barb $3.54 1 usually ships 4-14 days
45 174-6143 Screw 8 - 32 x 1/2 $0.97 2 usually ships 1-5 days
46 174-5918 RFI filter $39.12 1 usually ships 4-14 days
47 174-5919 RFI bracket $3.64 1 usually ships 1-5 days
48 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
49 174-0405 Extension spring $7.39 2 usually ships 1-5 days
