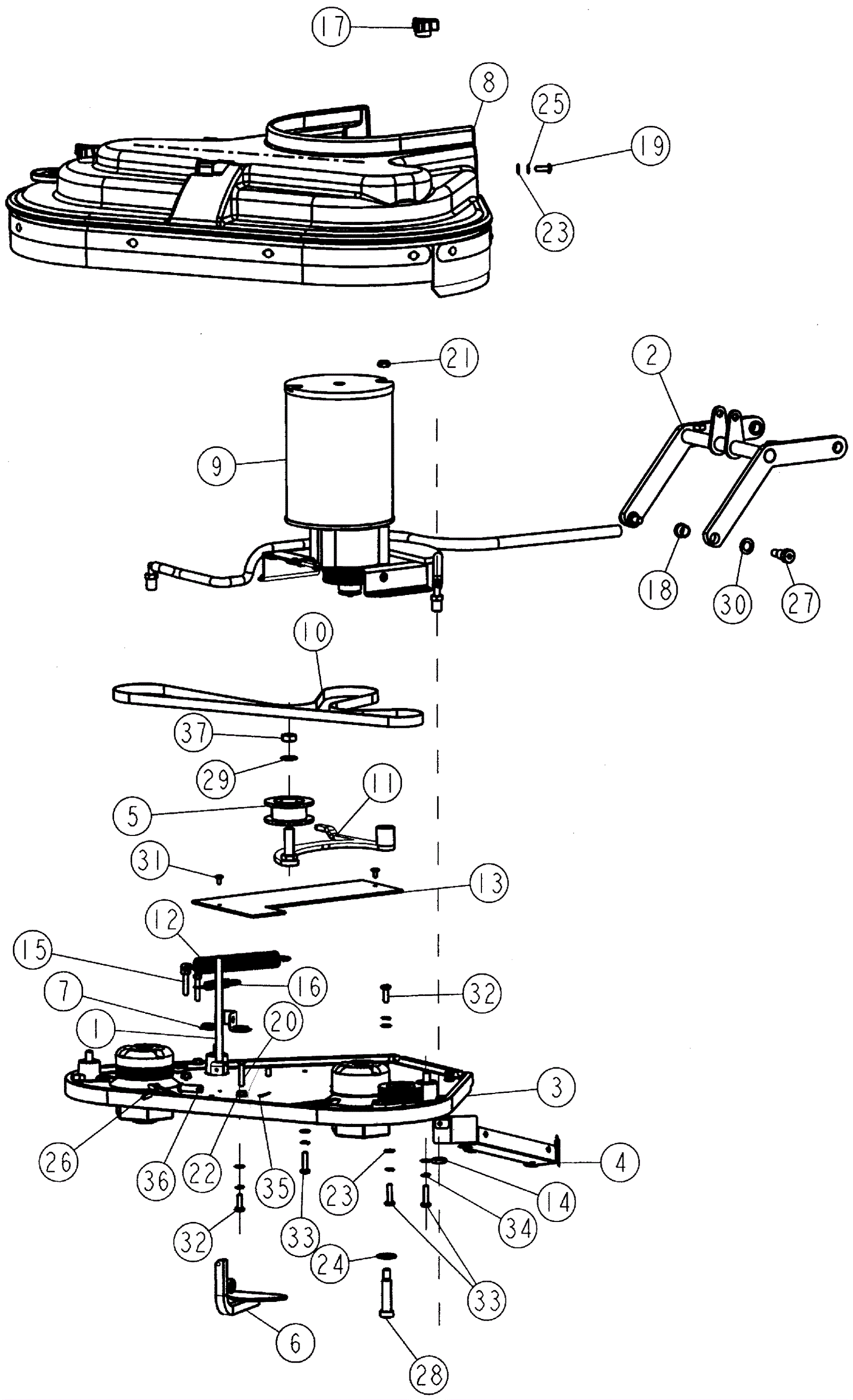

240X Scrubhead Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5805 Handle weldment $50.19 1 usually ships 1-5 days
2 174-5847 Lift weldment for 240X model $217.69 1 usually ships 1-5 days
3 174-5848 Scrubdeck casting assembly $545.60 1 usually ships 1-5 days
4 174-5849 Spring mount Call for price 1 usually ships 1-5 days
5 174-5850 Belt idler with bushing $39.80 1 usually ships 1-5 days
6 174-5851 Brush release lever weldment Call for price 1 usually ships 1-5 days
7 174-5852 Brush release bracket $10.80 1 usually ships 1-5 days
8 174-5853 Scrubdeck cover assembly for 240X model $533.99 1 usually ships 1-5 days
9 174-5854 Brush motor assembly for 240X model $1,187.34 1 usually ships 1-5 days
10 174-5855 Brush drive belt $59.27 1 usually ships 9-11 days
11 174-5856 Idler arm weldment $96.58 1 usually ships 1-5 days
12 174-5857 Extension spring 7/8 x 6 $36.96 1 usually ships 1-5 days
13 174-5858 Idler arm liner $20.15 1 usually ships 1-5 days
14 174-0575 Nut 1/4 NPT nylon $1.11 2 usually ships 9-11 days
15 174-0282 Swing bolt $8.54 1 usually ships 9-11 days
16 174-0008 Return spring $3.10 1 usually ships 9-11 days
17 174-0782 Star knob $2.71 3 usually ships 9-11 days
18 174-5859 Oilite flanged bushing $1.48 2 usually ships 1-5 days
19 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
20a 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 (new style) ships same day
20b 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 (old style) ships same day
21 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
22 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 3 ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
24 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
25 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
26 174-0915 Rollpin .187 x 1 $1.08 1 usually ships 1-5 days
27 174-5860 Bolt 1/2 x 5/8 shoulder $2.46 2 usually ships 1-5 days
28 174-5861 Bolt 1/2 x 1-3/4 shoulder $2.47 1 usually ships 1-5 days
29 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
30 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $1.08 2 usually ships 9-11 days
31 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 2 ships same day
32 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 usually ships 19-32 days
33 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
34 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
35 997-2506 Cotter pin $0.99 1 ships same day
36 174-5862 Clevis pin $3.43 1 usually ships 9-11 days
37 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
