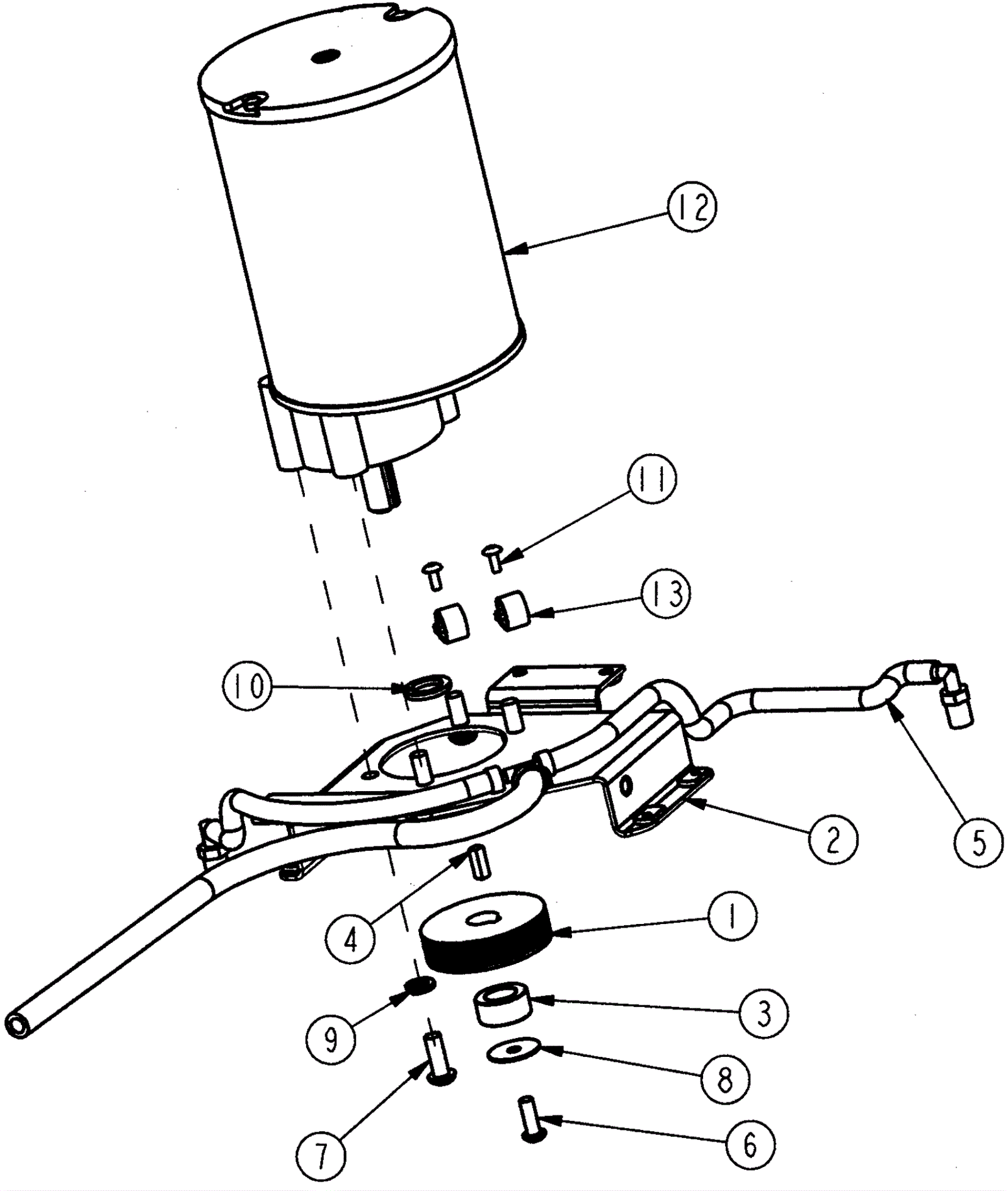

240X Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5833 Drive pulley poly v $21.20 1 usually ships 1-5 days
2 174-5834 Motor plate weldment for 240X $91.89 1 usually ships 1-5 days
3 174-5835 Motor spacer for 240X $5.27 1 usually ships 1-5 days
4 174-5836 Key 1/4 x 1/4 x 3/4 $2.43 1 usually ships 1-5 days
5 174-5837 Scrubdeck hose assembly for 240X model $20.10 1 usually ships 1-5 days
6 999-0844 Screw 5/16-18 x 7/8 button head socket plain finish $0.99 1 ships same day
7 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 4 ships same day
8 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 1 usually ships 4-14 days
9 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
10 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
11 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 2 ships same day
12 174-0054 24V brush gear motor assembly $793.62 1 usually ships 4-14 days
13 174-0428 P clamp $0.90 2 usually ships 1-5 days
