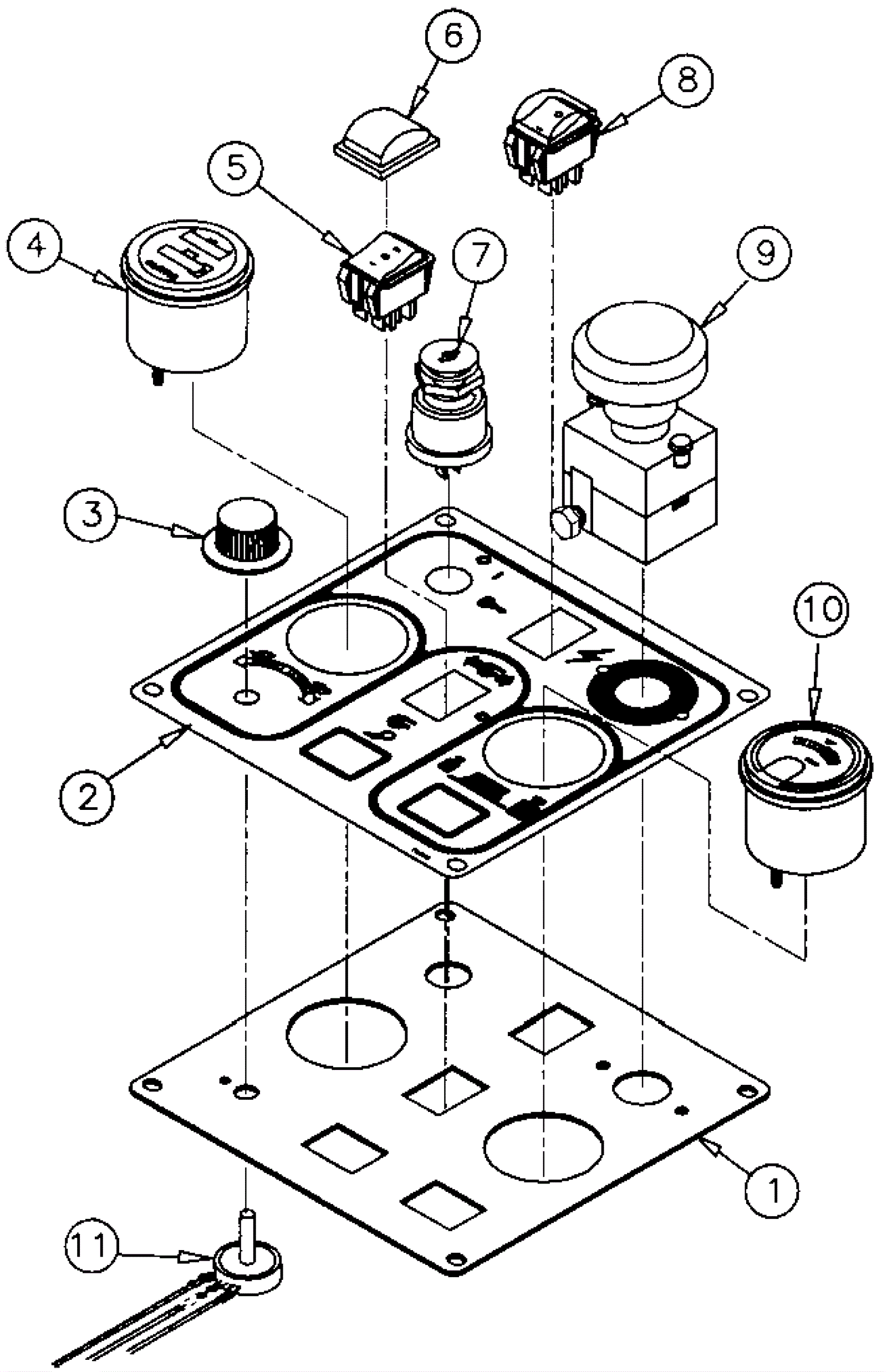

240X Dashboard Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5816 Dashboard plate $54.64 1 usually ships 1-5 days
2 174-5817 Dashboard decal for 200 model $24.83 1 usually ships 1-5 days
3 174-0259 Knob $7.99 1 usually ships 4-14 days
4 174-5818 Hour battery meter 24v $386.27 1 usually ships 1-5 days
5 174-0705 Vacuum switch $9.11 1 usually ships 4-14 days
6 174-0503 Switch boot ce $3.33 1 usually ships 1-5 days
7 174-0257 Key switch - Can not get keys separately $78.20 1 usually ships 1-5 days
8a 174-2042 Switch $7.61 1 (old style) usually ships 4-14 days
8b 174-0374 Rocker switch with splash guard $13.09 1 (new style) usually ships 4-14 days
9 174-5750 Disconnect switch $204.67 1 usually ships 1-5 days
10 174-5819 Brush pressure gauge $72.60 1 usually ships 4-14 days
11 174-2454 Pot assembly without resistor $54.65 1 usually ships 1-5 days
