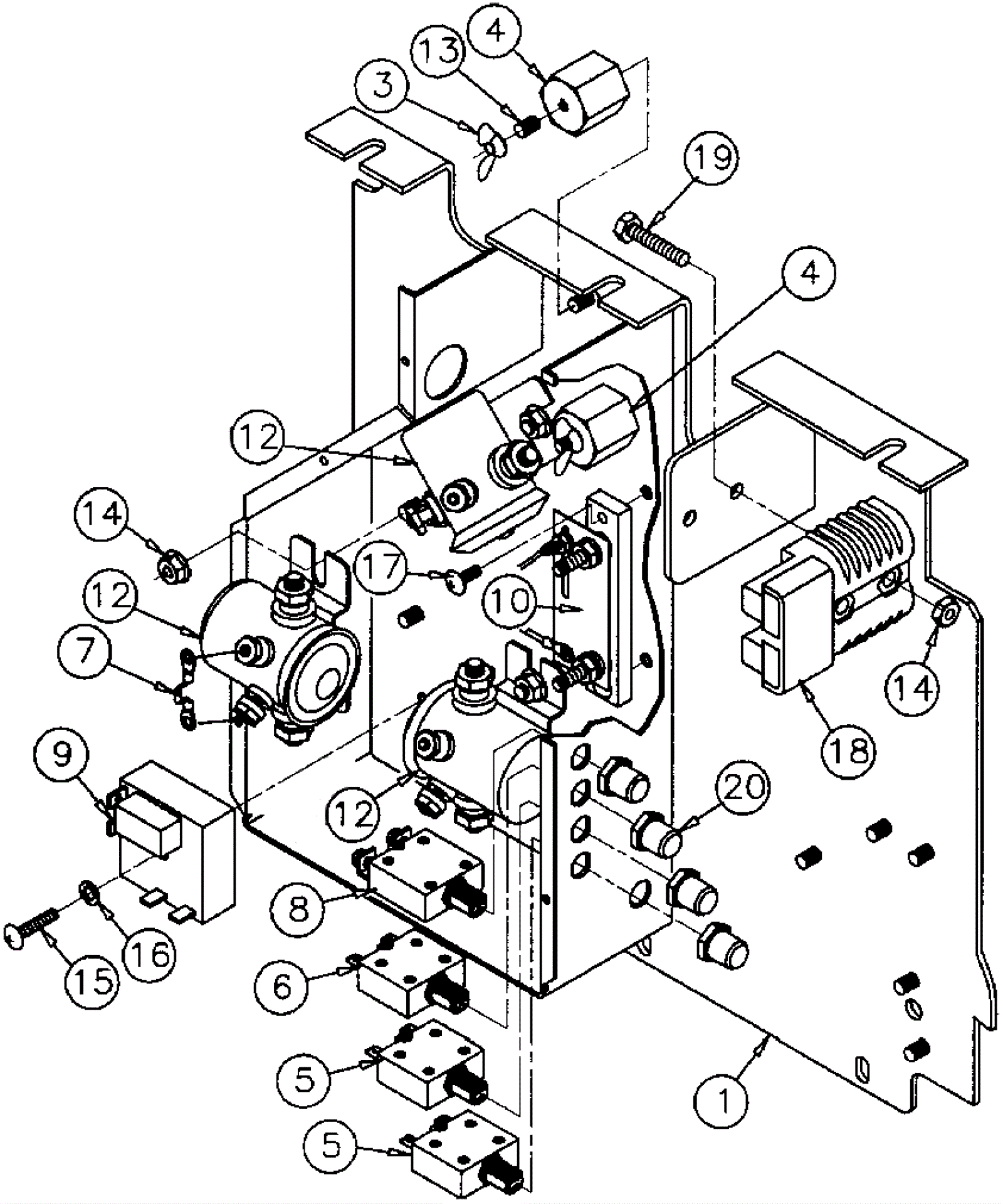

240X Back Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5821 Backpanel weldment Call for price 1 usually ships 1-5 days
3 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
4 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
5 174-5740 Circuit Breaker 18 amp $37.39 2 usually ships 1-5 days
6a 991-1629 35amp circuit breaker $9.23 1 (old style) usually ships 11-24 days
6b 274-1163 30amp circuit breaker $5.37 1 (new style) ships same day
7 174-0431 Diode assembly $2.87 3 usually ships 4-14 days
8 174-5812 Circuit breaker 50amp $31.15 1 usually ships 4-14 days
9 174-0266 5 second time delay $223.50 1 usually ships 1-5 days
10 174-5822 Uncalibrated shunt $29.54 1 usually ships 1-5 days
11 174-1953 Lower wire harness assembly $489.20 1 usually ships 1-5 days
12 174-0208 24V solenoid $92.09 3 usually ships 4-14 days
13 174-0165 Brass stud $5.78 2 usually ships 1-5 days
14 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 8 ships same day
15 174-1429 Screw 10-24 x 1.00 $1.20 1 usually ships 4-14 days
16 174-0532 Washer 7/32 x 3/64 nylon $0.97 1 usually ships 4-14 days
17 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 ships same day
18 162-5032 175amp charger plug only (red) SB175 $10.66 1 ships same day
19 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
20 174-5824 Circuit breaker boot $4.76 4 usually ships 4-14 days
