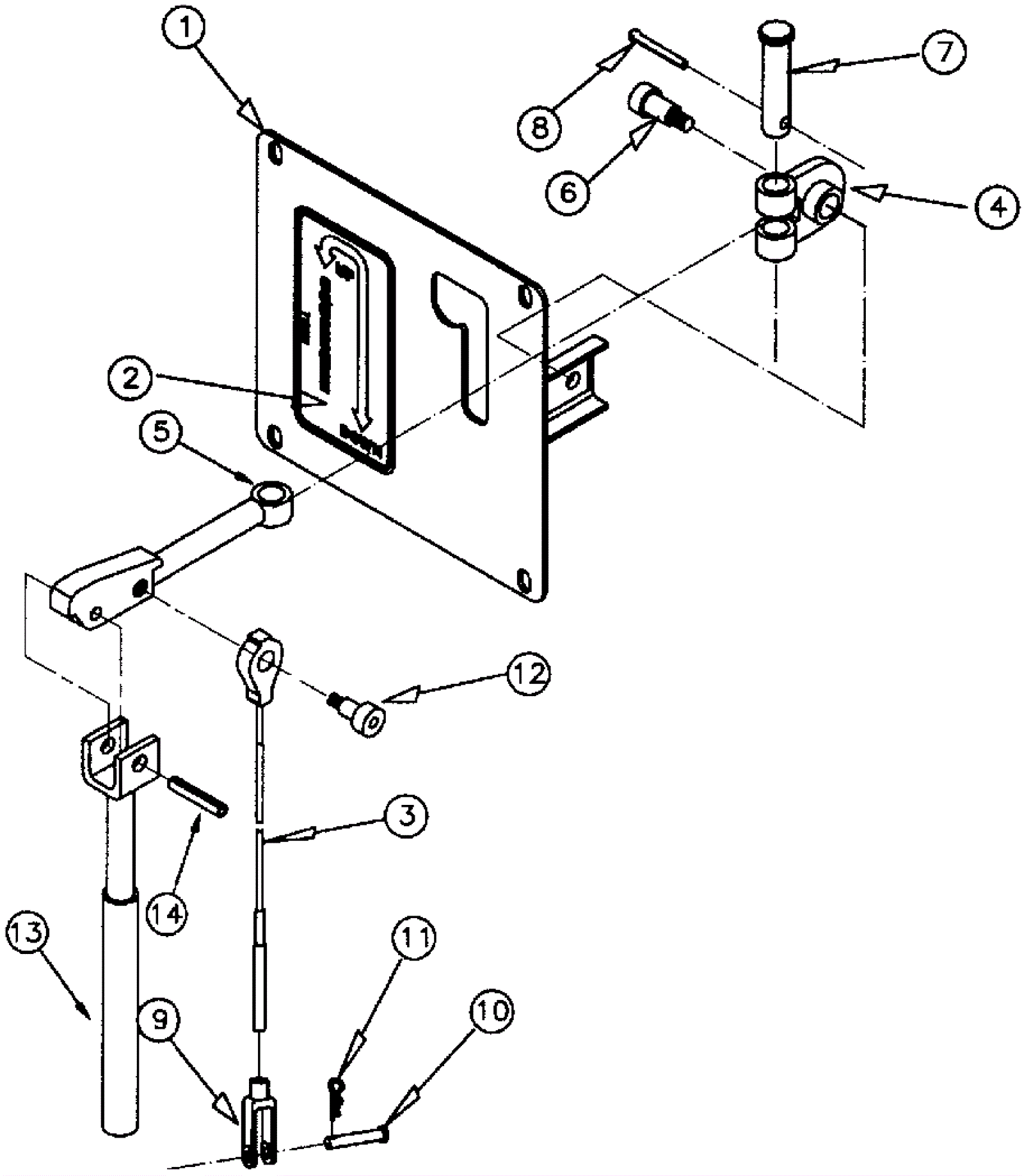

240X Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-7498 Panel cover weldment kit $258.94 1 usually ships 1-5 days
2 174-0198 Squeegee lift decal $4.08 1 usually ships 1-5 days
3 174-5800 Squeegee lift cable $14.63 1 usually ships 4-14 days
4 174-5802 Inner arm weldment $62.68 1 usually ships 1-5 days
5 174-5803 Squeegee weldment lift arm $42.59 1 usually ships 1-5 days
6 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 1 ships same day
7 174-1264 Clevis pin $3.04 1 usually ships 1-5 days
8 997-2506 Cotter pin $0.99 1 ships same day
9 174-1181 Yoke $29.57 1 usually ships 4-14 days
10 174-0190 Clevis pin $0.98 1 ships same day
11 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
12 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $0.86 1 ships same day
13 174-5805 Handle weldment $45.17 1 usually ships 1-5 days
14 174-0915 Rollpin .187 x 1 $0.97 1 usually ships 1-5 days
