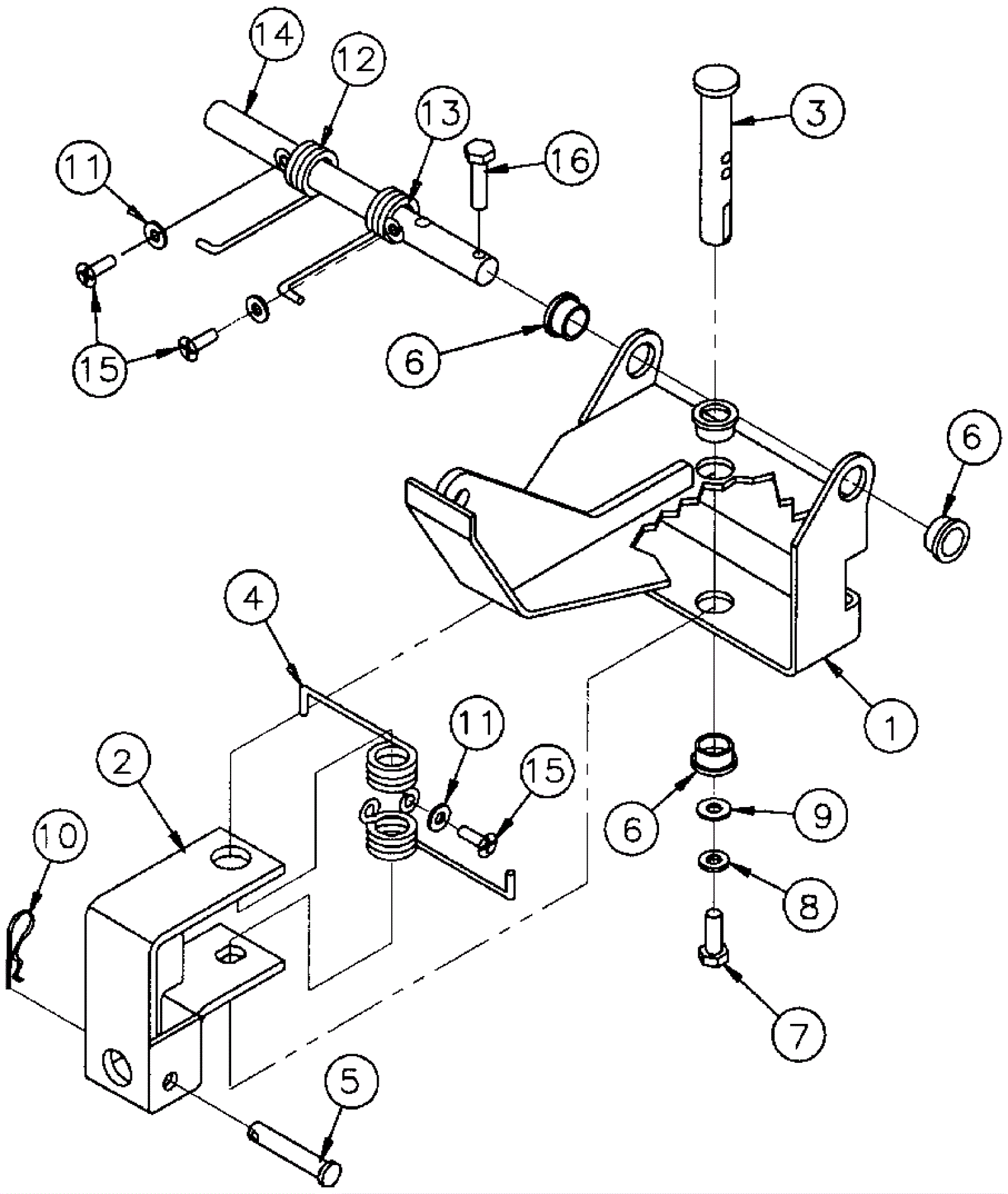

240X Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5801 Spring housing weldment $148.21 1 usually ships 1-5 days
2 174-5806 Yoke weldment $56.96 1 usually ships 9-11 days
3 174-0279 Swivel pin $51.17 1 usually ships 9-11 days
4 174-0280 Torsion spring stainless steel $7.06 2 ships same day
5 174-1186 Clevis pin 5/16 x 1 11/16 $3.94 1 usually ships 9-11 days
6 174-0120 Bushing $2.92 4 usually ships 9-11 days
7 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
8 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
9 174-0536 Washer 1/4 $1.08 1 usually ships 9-11 days
10 174-0201 Cotter pin $1.08 1 usually ships 9-11 days
11 174-0532 Washer 7/32 x 3/64 nylon $1.08 4 usually ships 9-11 days
12 174-5807 Right torsion spring $11.25 1 usually ships 9-11 days
13 174-5814 Left torsion spring $10.34 1 usually ships 9-11 days
14 174-5815 Pin $46.21 1 usually ships 1-5 days
15 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 4 ships same day
16 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
