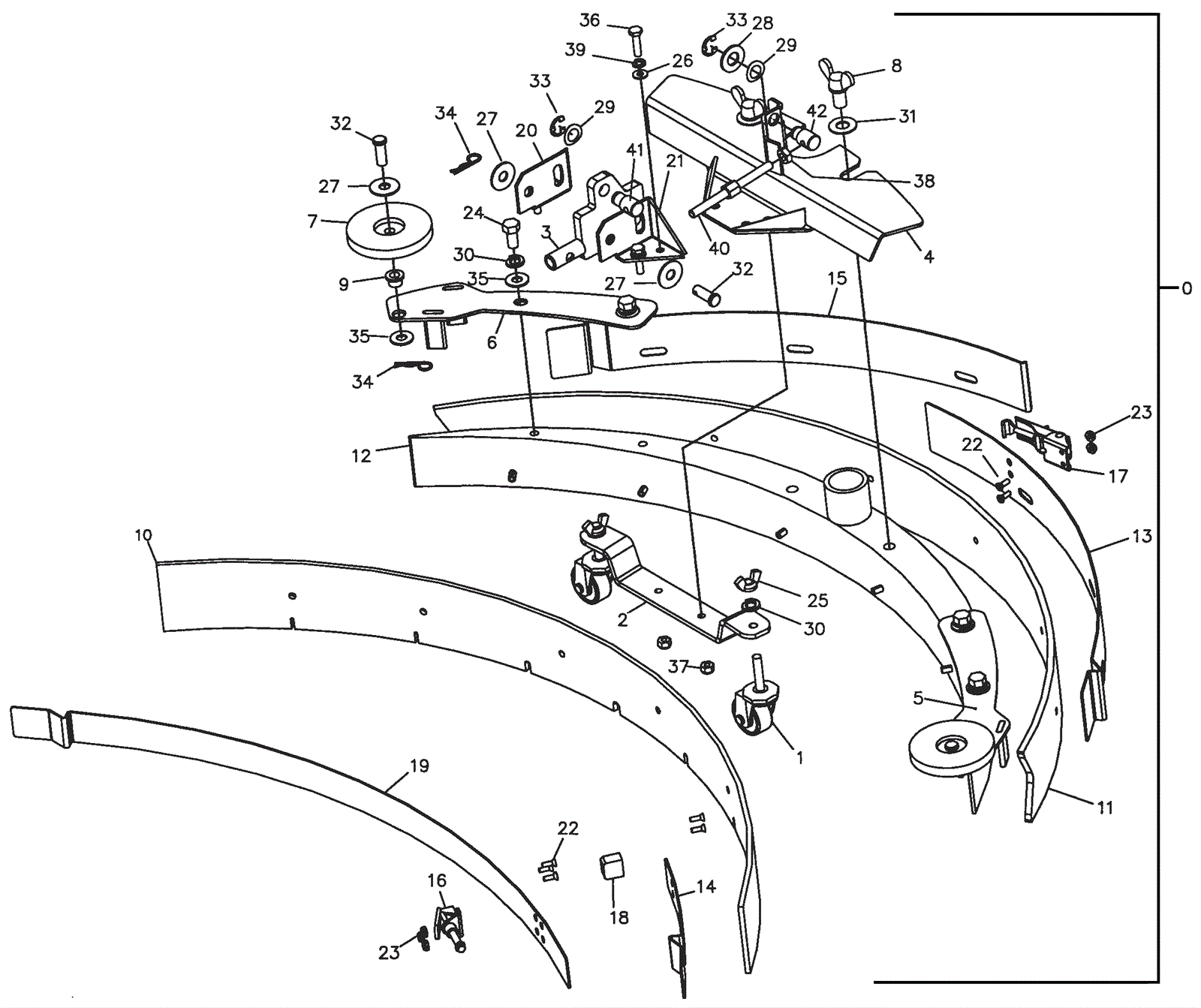

240X Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-1548 Squeegee assembly (OBSOLETE) $932.80 1 (includes 1-42) usually ships 12-16 days
1 274-2320 CASTER-3/8 inch-16 X 1-5/8 inch $15.30 2 usually ships 12-16 days
2 274-3679 CASTER SUPPORT BRACKET $25.13 1 usually ships 12-16 days
3 174-5704 Pitch control weldment $94.15 1 usually ships 12-16 days
4 274-6698 WELD-BRKT SQUEEGEE 200X $99.34 1 usually ships 1-5 days
5 274-5556 WELD-PLATE TOP 200X LH $40.50 1 usually ships 1-5 days
6 274-5557 WELD-PLATE TOP 200X RH $60.03 1 usually ships 1-5 days
7 174-5216 Roller wheel $7.25 2 usually ships 12-16 days
8 174-0538 Bolt 1/2-13 x 1 wing $27.94 2 usually ships 12-16 days
9 174-0138 Bushing $3.29 2 usually ships 1-5 days
10 174-1400 Squeegee blade front $27.72 1 usually ships 12-16 days
11 174-1401 Rear squeegee blade 26 inch $36.59 1 usually ships 12-16 days
12 274-8425 260 SQ. CASTING W/ROLL PINS $285.21 1 usually ships 1-5 days
13 274-6067 STRAP-REAR LATCH, 260 $71.73 1 usually ships 12-16 days
14 274-4870 STRAP-FRONT STOP 260 $42.64 1 ships same day
15 274-5874 STRAP-REAR CATCH, 260 $72.64 1 usually ships 12-16 days
16 174-3250 Front squeegee latch $52.69 1 usually ships 12-16 days
17 174-1151 Rear squeegee latch $56.34 1 usually ships 12-16 days
18 174-3251 Stop bar $25.13 1 usually ships 12-16 days
19 174-3257 Front strap clamp $49.75 1 usually ships 12-16 days
20 174-0033 Right side mount bracket $22.18 1 usually ships 12-16 days
21 174-3260 Left mounting bracket $25.37 1 usually ships 12-16 days
22 174-2271 Screw 8-32 x 1/2 $1.10 7 usually ships 12-16 days
23 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 5 ships same day
24 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
25 174-3262 Nut 3/8-16 wing steel plated $2.11 2 usually ships 12-16 days
26 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
27 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
28 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
29 174-5159 Washer 33/64 x 1/64 wave $1.10 2 usually ships 12-16 days
30 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
31 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
32 174-0195 Clevis pin $0.86 3 usually ships 12-16 days
33 174-0178 1/2 inch external retaining ring $1.10 2 usually ships 12-16 days
34 174-0201 Cotter pin $1.33 3 usually ships 12-16 days
35 999-1363 Washer 7/8 flat stainless steel $3.48 6 ships same day
36 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
37 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
38 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 ships same day
39 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
40 174-1338 Adjusting stud $20.71 1 usually ships 12-16 days
41 174-3264 Left hand adjusting nut $8.24 1 usually ships 12-16 days
42 174-3037 Adjusting nut $6.87 1 usually ships 12-16 days
