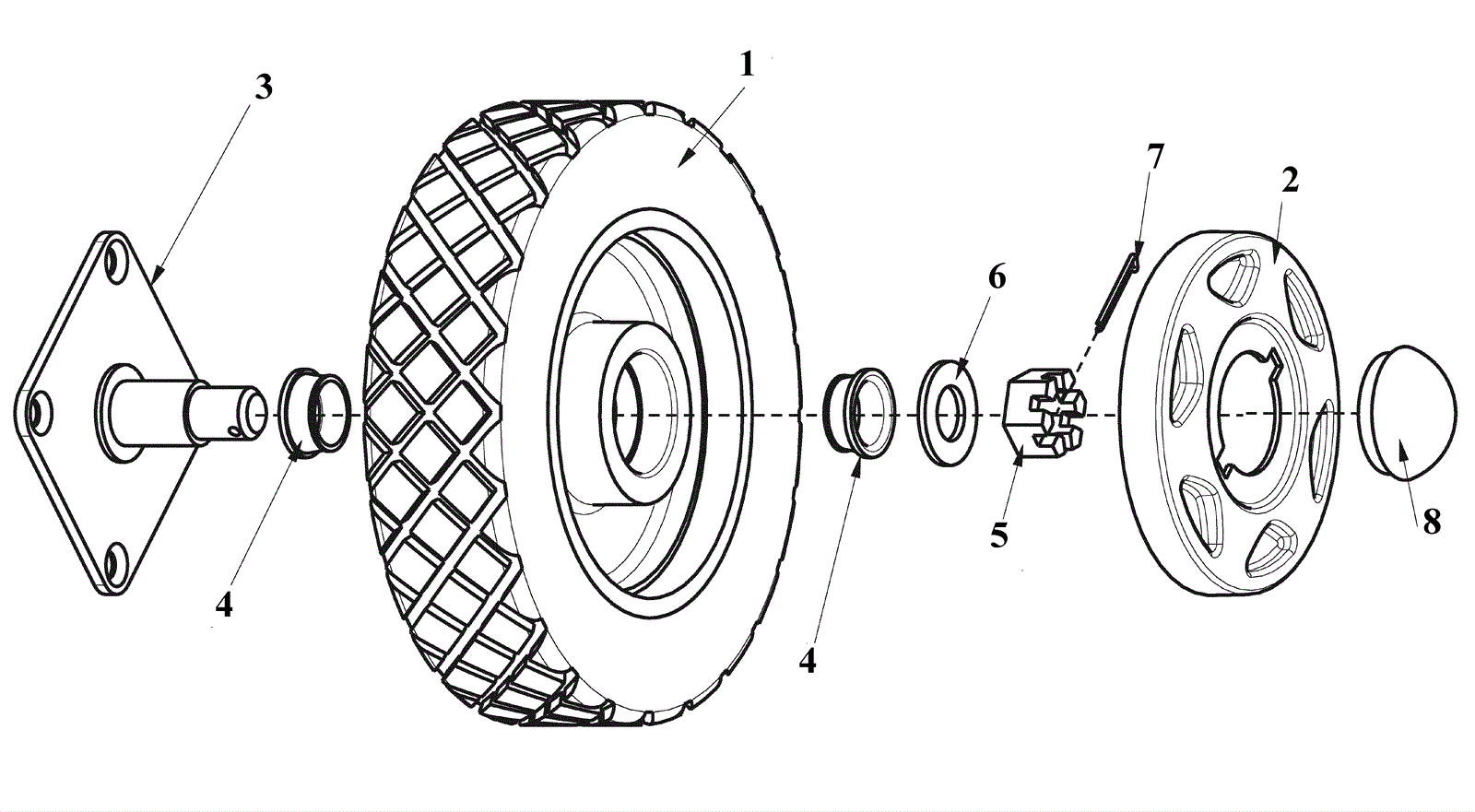

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
274-9225
|
REAR WHEEL ASSY |
$554.10
|
1 |
|
usually ships 1-5 days |
2 |
274-4178
|
HUB CAP, WHEEL |
$42.96
|
1 |
|
usually ships 1-5 days |
4 |
174-1636
|
Tapered bearing cone |
$39.50
|
2 |
|
usually ships 12-16 days |
5 |
174-1642
|
Nut 1-14 slotted |
$3.12
|
1 |
|
usually ships 1-5 days |
6 |
174-1641
|
Flat washer 1 1/16 x 2 x 5/32 |
$0.97
|
1 |
|
usually ships 1-5 days |
7 |
174-7020
|
Cotter pin |
$0.97
|
1 |
|
usually ships 12-16 days |
8 |
174-8814
|
Wheel grease cap |
$6.25
|
1 |
|
usually ships 1-5 days |
