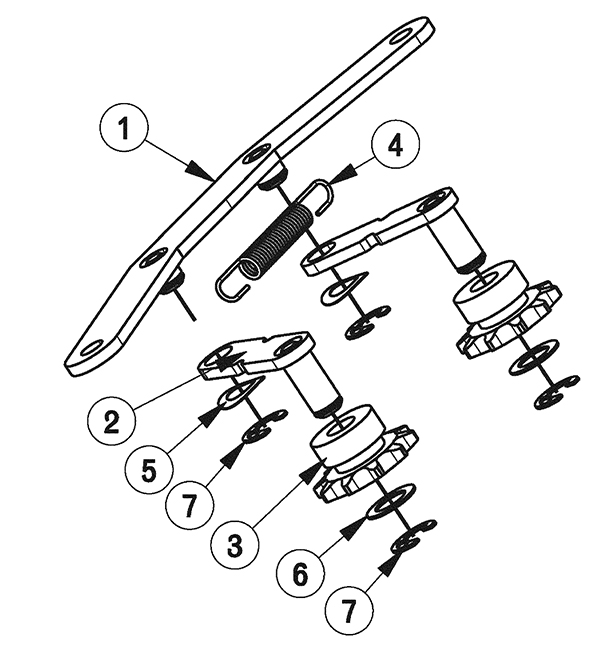

| # | Part | Description | Price | Req | Notes | Availability |
|---|
| 1 |
174-8730
|
Front drive idler base weldment |
$30.92
|
1 |
|
usually ships 1-5 days |
| 2 |
174-8731
|
Front drive idler arm weldment |
$36.33
|
2 |
|
usually ships 1-5 days |
| 3 |
174-8732
|
10 toothed idler sprocket |
$31.24
|
2 |
|
usually ships 1-5 days |
| 4 |
174-0008
|
Return spring |
$3.09
|
1 |
|
usually ships 12-16 days |
| 5 |
174-5159
|
Washer 33/64 x 1/64 wave |
$1.10
|
2 |
|
usually ships 12-16 days |
| 6 |
999-0855
|
Washer 9/16 SAE flat |
$0.99
|
2 |
|
ships same day |
| 7 |
174-0178
|
1/2 inch external retaining ring |
$1.10
|
4 |
|
usually ships 12-16 days |
