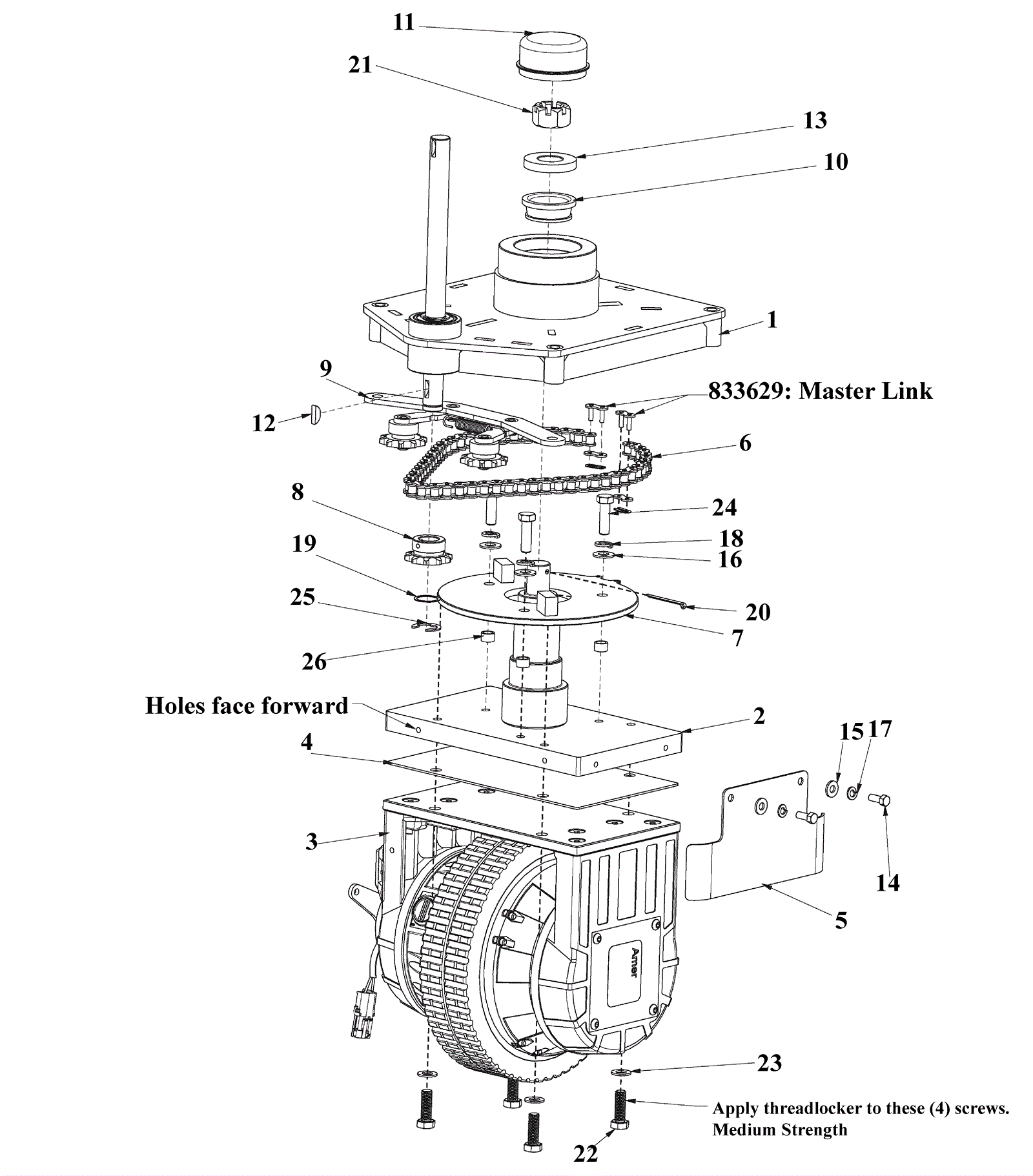

ERIDE 26 Front Drive Assembly

#PartDescriptionPriceReqNotesAvailability
3 374-0216 ELECTRIC CHASSIS DRV-ERIDE 250mm(~10.0 inch) $2,704.27 1 usually ships 12-16 days
5 274-4394 SHIELD - AMER MOTOR, SIDE, PAINTED STEEL $31.44 1 usually ships 1-5 days
6 174-8723 27 1/2 inch steering chain $49.26 1 usually ships 1-5 days
7 174-8726 Steering disc weldment $65.48 1 usually ships 1-5 days
8 174-8729 10 toothed sprocket $19.38 1 usually ships 1-5 days
9 274-7115 IDLER ASSY, FRONT DRIVE $156.28 1 usually ships 1-5 days
10 174-2567 Roller bearing $22.00 1 usually ships 1-5 days
11 174-2564 Grease cap $12.02 1 usually ships 1-5 days
12 174-2748 Woodruff key 3/16 x 3/4 $1.38 1 ships same day
13 174-2566 Front drive spacer $29.04 1 usually ships 1-5 days
14 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 2 usually ships 1-5 days
15 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
16 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
17 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
18 999-0034 Washer 3/8 split lock plain finish $1.82 3 ships same day
19 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
20 174-5907 Cotter hair pin $1.20 1 usually ships 1-5 days
21 174-2565 Slotted nut $4.96 1 usually ships 1-5 days
23 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 4 ships same day
24 174-1378 Bolt 3/8-16 x 1 1/4 hex head #5 $0.97 3 usually ships 1-5 days
25 174-5728 Retaining ring $1.33 1 usually ships 12-16 days
26 174-0103 Spacer $9.31 3 usually ships 1-5 days
27a 274-1840 MASTER CHAIN LINK 24/32B $9.31 2 usually ships 1-5 days
27b 991-0103 Master link $1.87 2 (NON-OEM) ships same day
