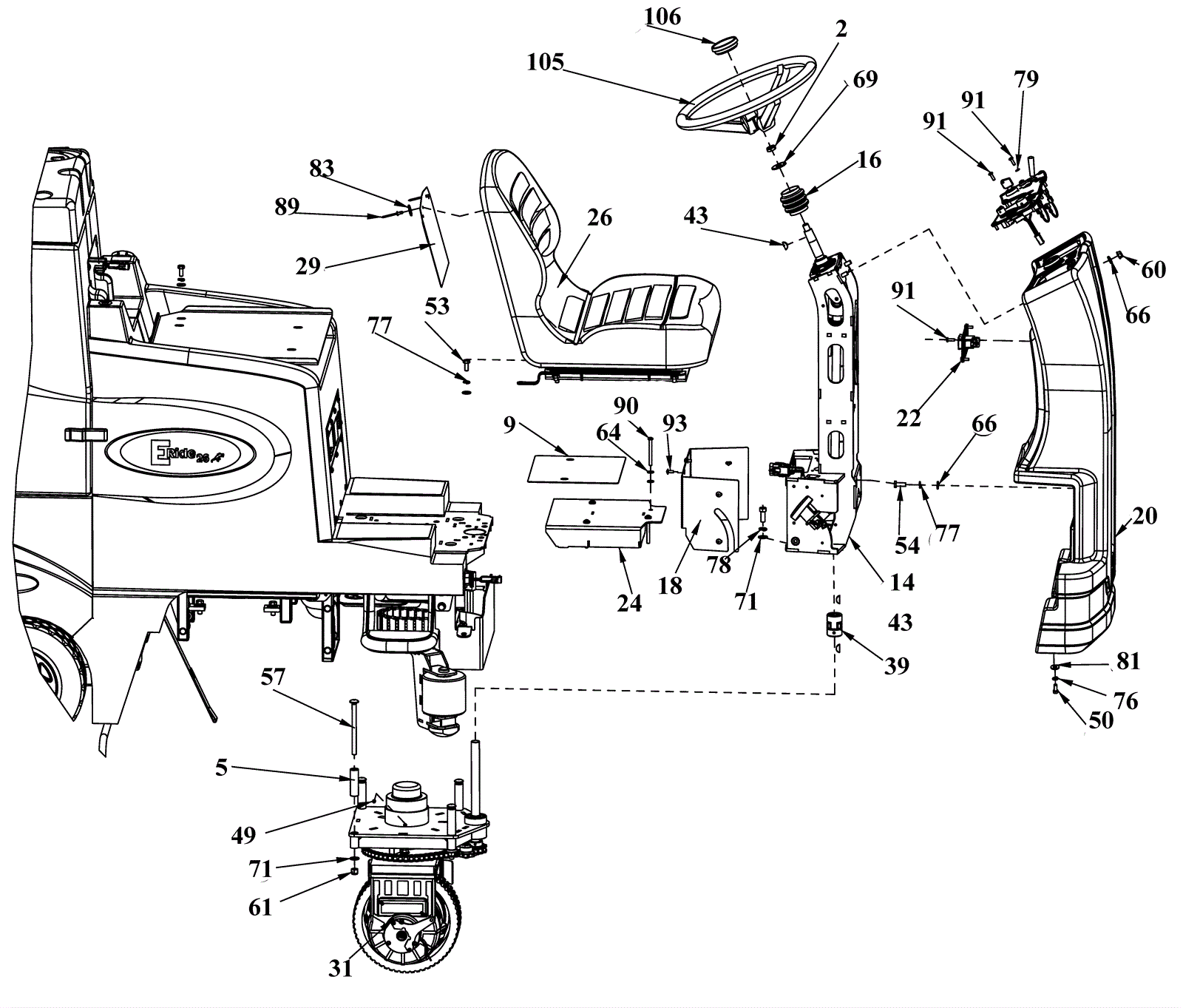

ERIDE 26 Main Assembly III

#PartDescriptionPriceReqNotesAvailability
2 999-0182 Nut 1/2-20 hex plain finish $0.99 1 ships same day
5 274-1921 DRIVE MOTOR STANDOFF, SCV 24/26 $13.10 4 usually ships 1-5 days
9 274-3681 FLOOR PANEL ANTISKID, SCV 24/26 $7.97 1 usually ships 1-5 days
16 274-3207 BOOT - STEERING SHAFT, SCV 2426 $20.40 1 usually ships 12-16 days
18 274-3522 STEERING COVER - LOWER, SCV 2426 $50.00 1 usually ships 1-5 days
31 374-0312 FRONT DRIVE ASSEMBLY- ERIDE $4,715.50 1 usually ships 12-16 days
39 174-8090 Coupling $50.99 1 usually ships 1-5 days
43 174-2748 Woodruff key 3/16 x 3/4 $1.38 3 ships same day
49 174-8083 Screw $0.97 1 usually ships 1-5 days
50 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 8 usually ships 1-5 days
53 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 12 usually ships 1-5 days
54 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 2 ships same day
60 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 2 ships same day
61 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 6 ships same day
64 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
66 999-0024 Washer 5/16 flat stainless steel $1.34 14 ships same day
69 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
71 999-0120 Washer 3/8 SAE flat $0.99 19 ships same day
76 999-0060 Washer 1/4 split lock plain finish $0.99 18 ships same day
77 999-0028 Washer 5/16 split lock plain finish $0.99 21 ships same day
78 999-0034 Washer 3/8 split lock plain finish $1.82 10 ships same day
79 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
81 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
83 174-2224 Washer flat $1.66 2 usually ships 1-5 days
89 374-1221 RIVET-POP 3/16 $0.97 2 usually ships 1-5 days
91 374-1268 SCR-MC 10-24 X .62 SS $0.97 13 usually ships 1-5 days
93 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 6 ships same day
105 274-9392 STEERING WHEEL $129.52 1 usually ships 1-5 days
