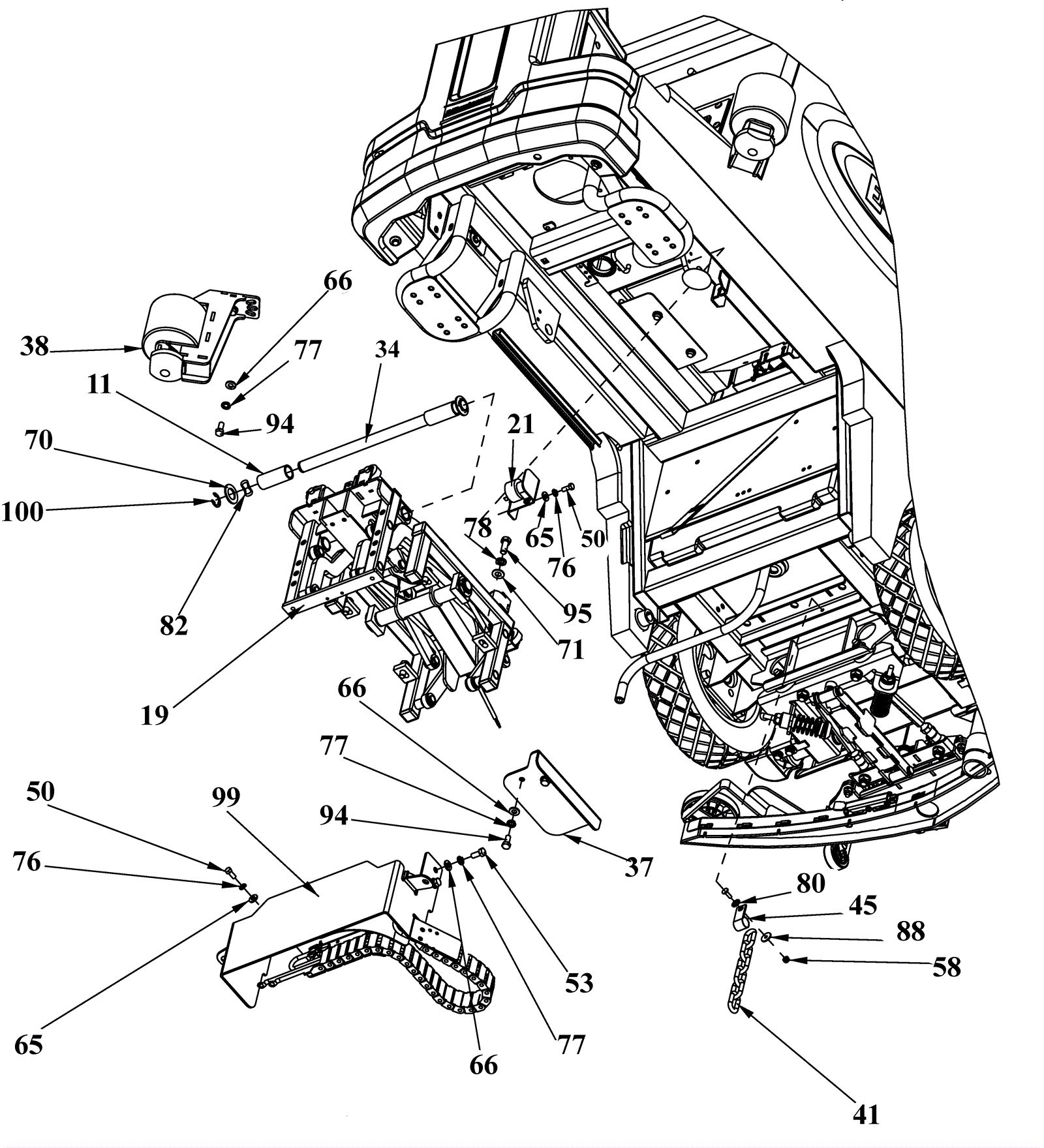

ERIDE 26 Main Assembly II

#PartDescriptionPriceReqNotesAvailability
34 274-2947 LINKAGE ATTACHMENT SHAFT, SCV 24/26 $26.68 1 usually ships 1-5 days
41 274-2956 STATIC GROUNDING CHAIN, 9 LINK $18.52 1 usually ships 1-5 days
50 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 8 usually ships 1-5 days
53 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 12 usually ships 1-5 days
58 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
65 999-0016 Washer 1/4 flat plain finish $0.99 15 ships same day
66 999-0024 Washer 5/16 flat stainless steel $1.34 14 ships same day
70 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
71 999-0120 Washer 3/8 SAE flat $0.99 19 ships same day
76 999-0060 Washer 1/4 split lock plain finish $0.99 18 ships same day
77 999-0028 Washer 5/16 split lock plain finish $0.99 21 ships same day
78 999-0034 Washer 3/8 split lock plain finish $1.82 10 ships same day
80 174-0537 Washer 3/8 helical stainless steel $0.97 1 usually ships 1-5 days
82 174-8577 Wave washer $2.63 2 usually ships 1-5 days
88 374-1213 WSR-BALANCE .06 X .196 X .750 $0.95 1 usually ships 1-5 days
94 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 6 ships same day
95 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
100 174-5728 Retaining ring $1.33 2 usually ships 12-16 days
