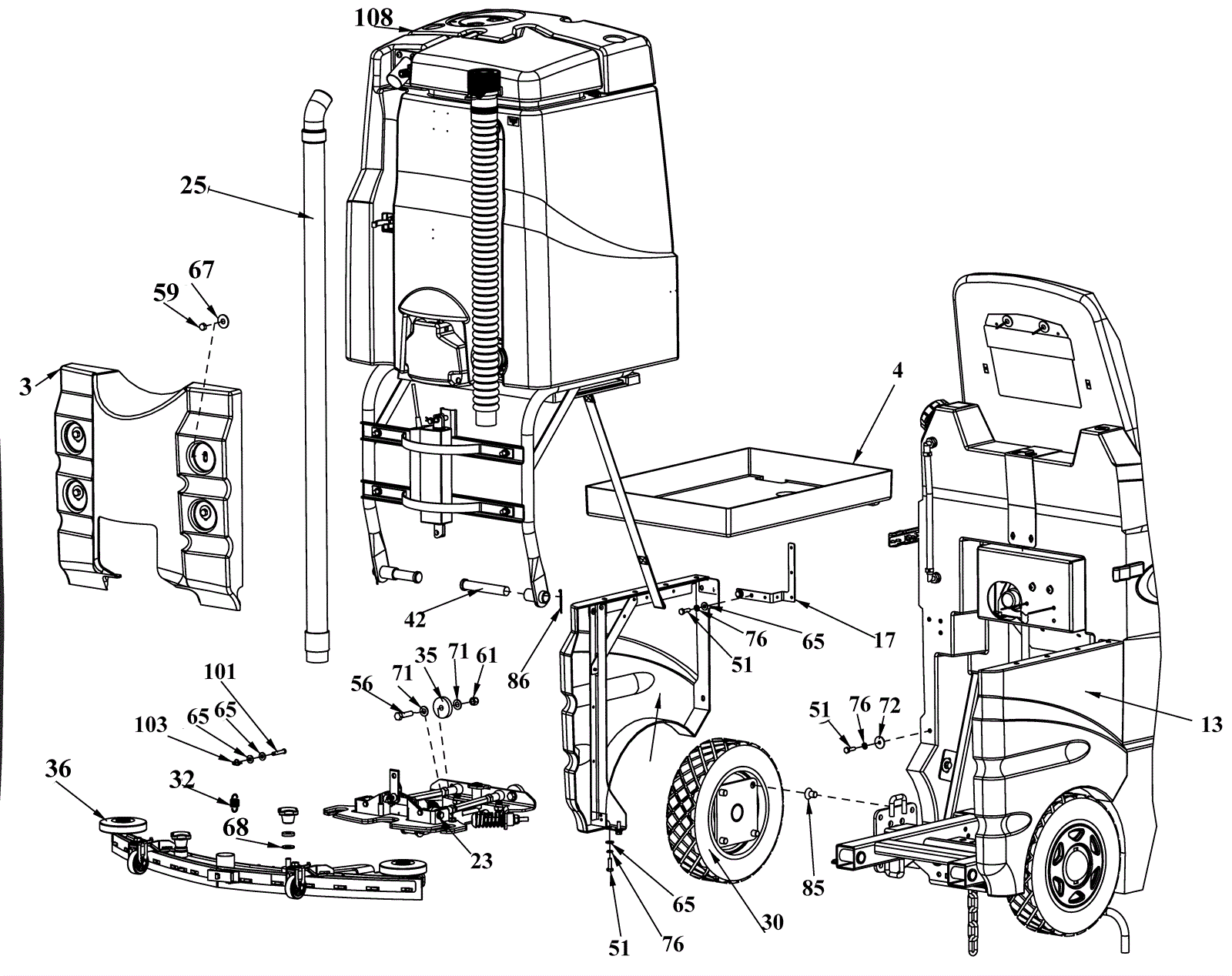

ERIDE 26 Main Assembly I

#PartDescriptionPriceReqNotesAvailability
3 274-7069 SCV 24, BATTERY PANEL, REAR $107.96 1 usually ships 1-5 days
13 174-7072 Right side battery panel $146.73 1 usually ships 1-5 days
25 174-8675 Squeegee hose assembly $45.23 1 usually ships 12-16 days
32 274-1603 SPR -EXTENSION .734 OD 1.75 L .105 WIRE $8.16 1 usually ships 1-5 days
42 174-8879 Clevis pin $4.91 2 usually ships 1-5 days
51 174-6289 Bolt 1/4-20 x 7/8 hex head steel plated $0.97 11 usually ships 1-5 days
56 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
59 999-0958 Nut 5/16-18 acorn stainless steel $10.11 4 ships same day
61 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 6 ships same day
65 999-0016 Washer 1/4 flat plain finish $0.99 15 ships same day
67 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 14 ships same day
68 999-0328 Washer 7/16 USS flat $0.99 2 ships same day
71 999-0120 Washer 3/8 SAE flat $0.99 19 ships same day
72 174-0536 Washer 1/4 $0.97 2 usually ships 12-16 days
76 999-0060 Washer 1/4 split lock plain finish $0.99 18 ships same day
86 174-5907 Cotter hair pin $1.20 2 usually ships 1-5 days
101 174-0792 Clevis pin $0.97 1 usually ships 12-16 days
103 174-1578 3/8 rue ring cotter pin $1.81 1 ships same day
108 374-0256 RECOVERY TANK ASSY, E RIDE 24/26 $1,758.10 1 usually ships 1-5 days
