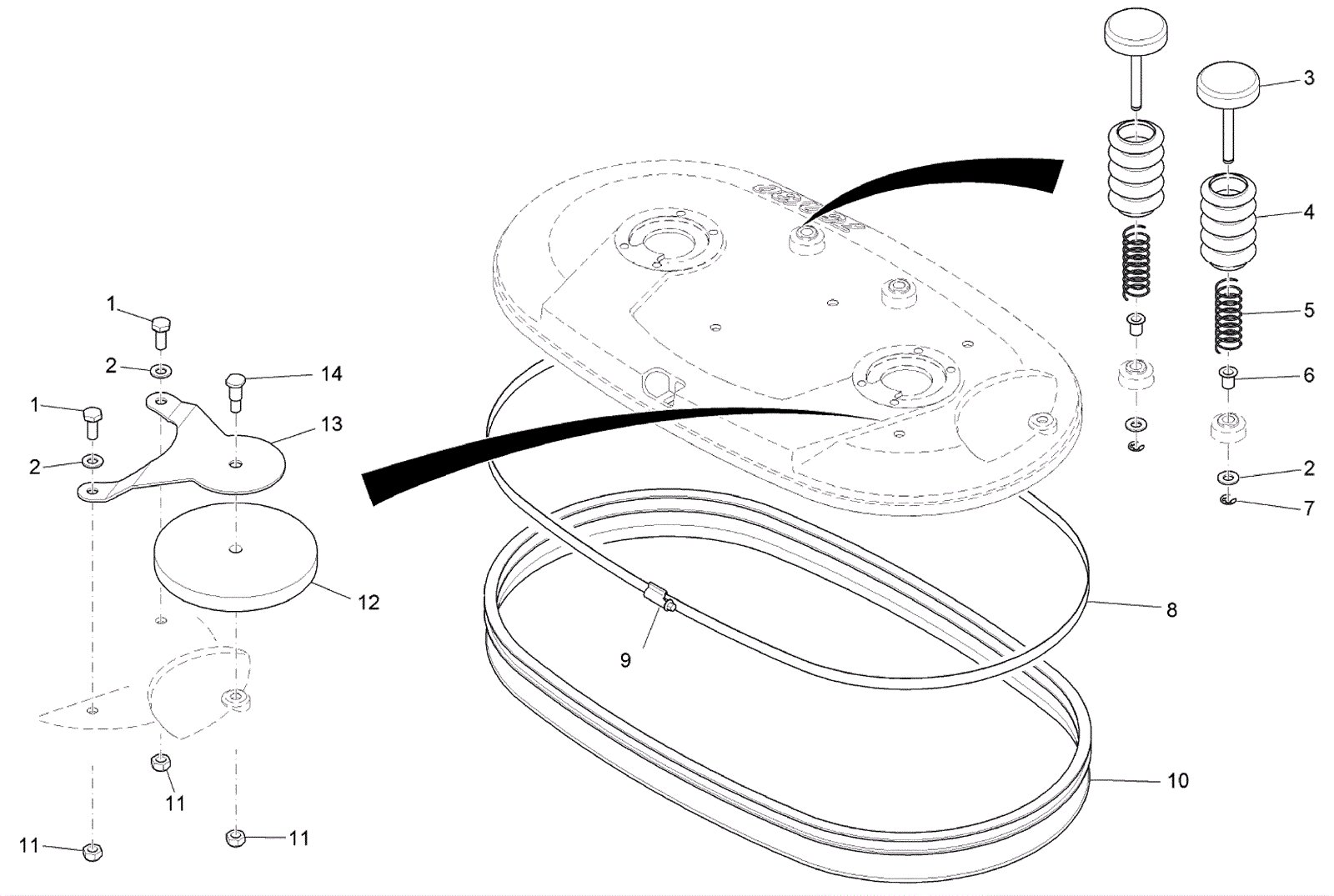

E30 ECO Disc Scrub Deck Assembly II

#PartDescriptionPriceReqNotesAvailability
1 174-3698 Screw hex head Call for price 2 usually ships 4-14 days
2 174-8888 Washer $4.62 2 usually ships 4-14 days
3 174-8483 Ejector $19.20 2 usually ships 4-14 days
4 174-8484 Bellow $14.50 2 usually ships 4-14 days
5 174-8485 Compression spring $10.87 2 usually ships 4-14 days
6 174-8977 Slide bearing $1.27 2 usually ships 4-14 days
7 174-9618 Retaining washer $1.10 2 usually ships 4-14 days
8 174-8449 Tension band $20.65 86 in usually ships 4-14 days
9 174-8450 Tension band lock $3.78 1 usually ships 4-14 days
10 174-8451 Seal strip $52.01 1 ships same day
11 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
12 274-1899 DEFLECTOR ROLLER $12.92 1 usually ships 1-5 days
13 174-4192 Retainer $104.80 1 usually ships 4-14 days
14 174-9617 Screw $11.19 1 usually ships 4-14 days
