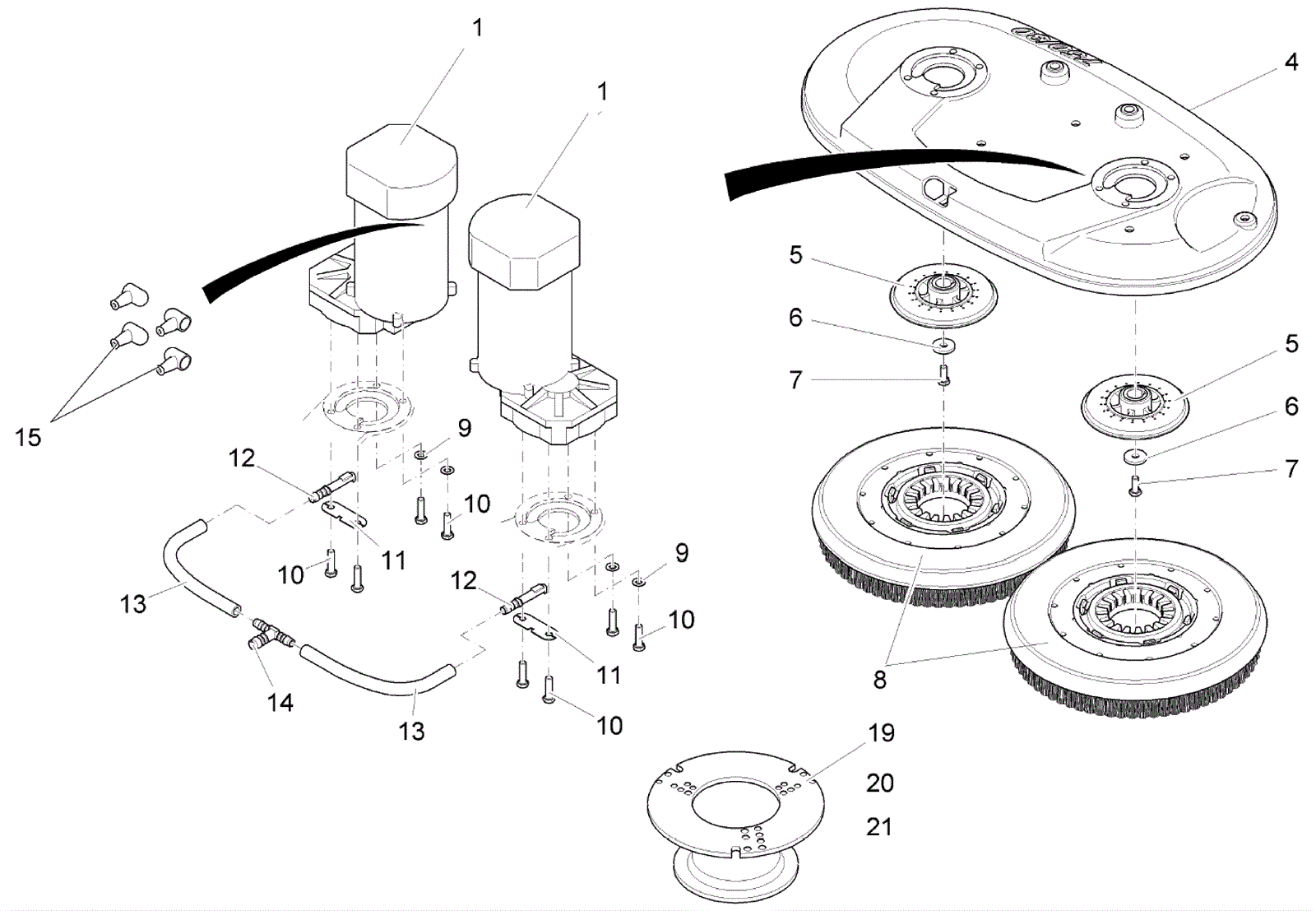

E30 ECO Disc Scrub Deck Assembly I

#PartDescriptionPriceReqNotesAvailability
1 174-8891 Brush motor $931.14 2 usually ships 1-5 days
4 174-9684 Housing $143.62 1 usually ships 4-14 days
5 274-6006 CARRIER $58.47 2 ships same day
6 174-8895 Washer $2.06 2 usually ships 4-14 days
7 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
8 174-9688 Drive plate Call for price 2 usually ships 4-14 days
9 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 8 ships same day
11 174-8896 Sheet metal $1.67 2 usually ships 1-5 days
12 174-8897 Spray tube $2.40 2 usually ships 1-5 days
13 174-8898 Hose $5.91 21 in usually ships 1-5 days
14 174-8899 T-reducer $3.97 1 usually ships 1-5 days
15 174-8900 Protection cap $0.95 4 usually ships 1-5 days
19 174-8901 Center lock $37.39 1 usually ships 4-14 days
20 174-8902 Self tapping screw $1.24 6 usually ships 4-14 days
21 174-8903 Center lock retainer $41.86 1 usually ships 4-14 days
N/S 174-8892 Fitting key $3.08 2 usually ships 4-14 days
N/S 174-8893 Carbon brush (set of 4) $99.36 1 usually ships 1-5 days
N/S 174-8904 Spring $4.10 1 usually ships 1-5 days
N/S 174-8905 Gear $275.70 1 usually ships 1-5 days
N/S 174-8906 Circlip $29.29 1 usually ships 1-5 days
