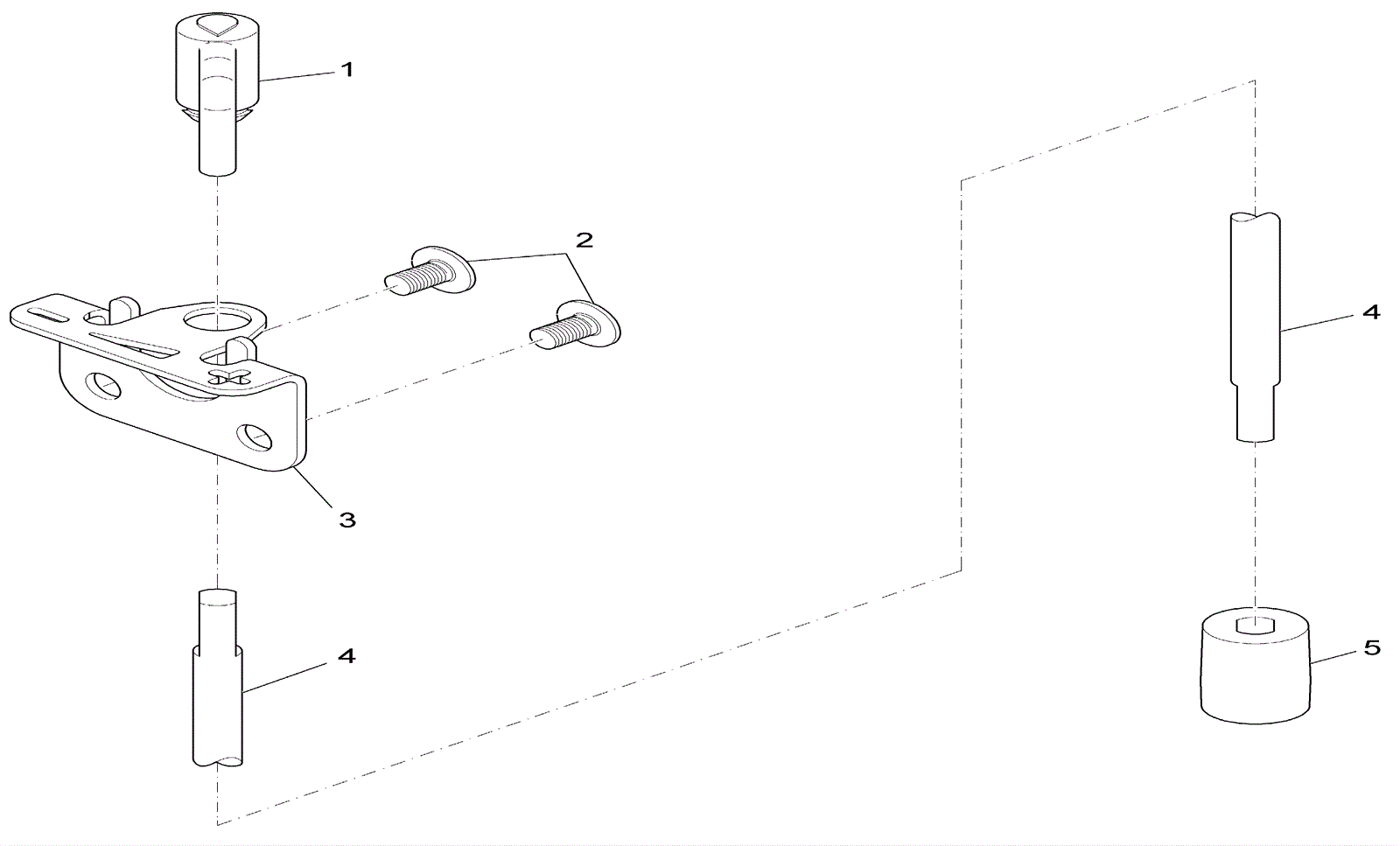

Solution Control Assembly
Click to enlarge
#
Part
Description
Req
Notes
Availability
1
174-8907
Solution control lever
1
2
999-1514
Screw M6-1 x 10mm button head socket stainless steel
2
3
174-8908
Control lever bracket
1
4
174-8909
Shaft
1
5
174-8910
Shaft connector
1
