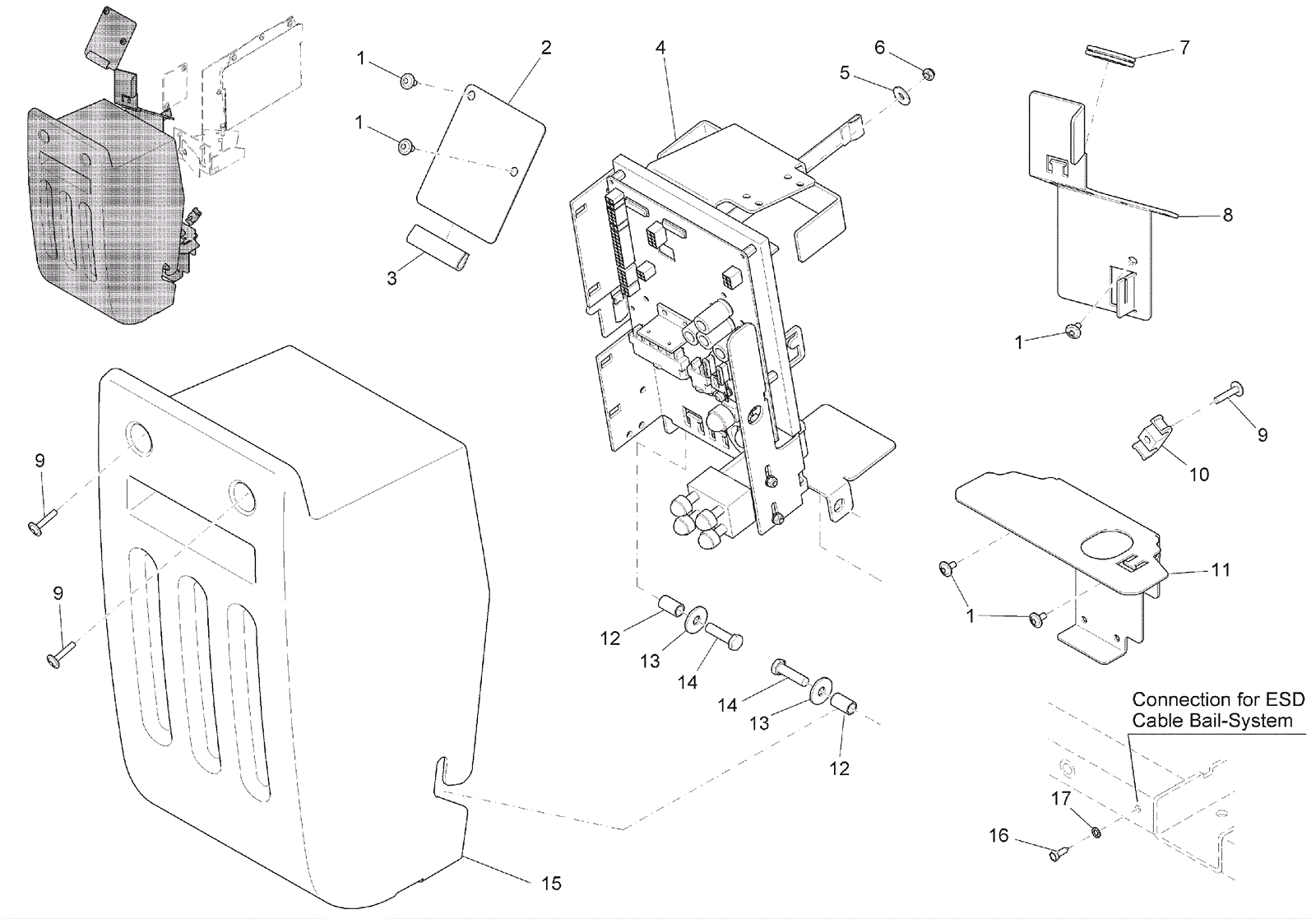

E30 ECO Electrical Assembly I

#PartDescriptionPriceReqNotesAvailability
1 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 5 ships same day
2 174-8981 Cover plate $3.69 1 usually ships 1-5 days
3 174-8982 Edge protection $2.77 1 usually ships 1-5 days
4 N/A Not available Call for price 1 (see Retainer Assembly) usually ships 3-26 days
5 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
6 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
7 174-3494 Cable sleeve $14.17 1 usually ships 1-5 days
8 174-3495 Cover plate bracket $8.67 1 usually ships 1-5 days
9 174-8494 Screw M6-1 x 25mm with flange $3.20 3 usually ships 11-24 days
10 174-3500 Clamp $1.72 1 usually ships 1-5 days
11 274-2565 CLAMPING PLATE $6.42 1 usually ships 1-5 days
12 174-8983 Bushing $2.85 2 usually ships 1-5 days
13 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
14 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
15 174-8984 Electrical panel cover $60.56 1 usually ships 1-5 days
16 174-3496 Self tapping screw $0.95 1 usually ships 4-14 days
17 999-1594 Washer M5 external lock stainless steel $0.99 1 usually ships 1-5 days
