E30 ECO

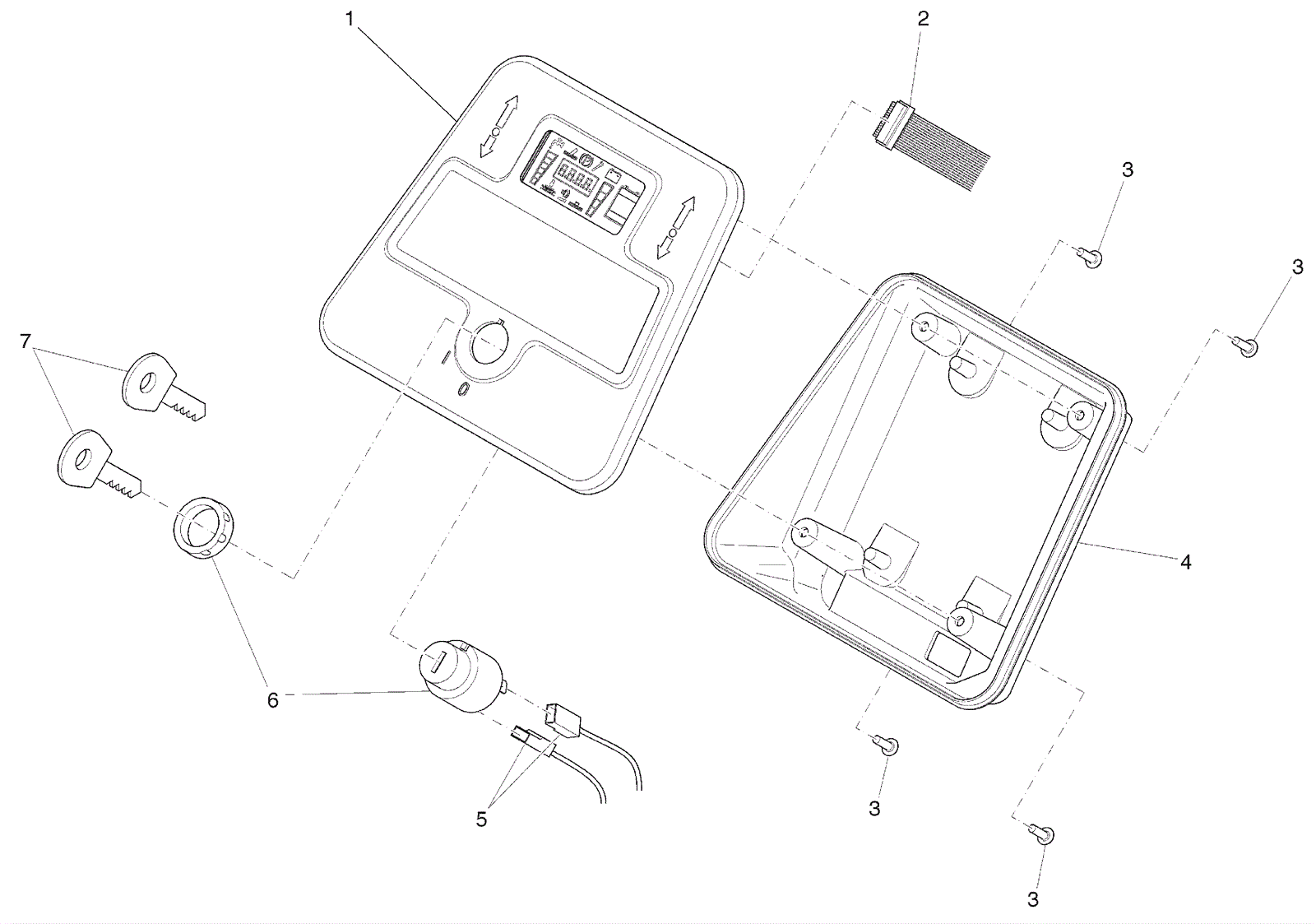

Console Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
274-8668
Console
$233.38
1
usually ships 1-5 days
2
174-8911
Ribbon cable
$70.37
1
usually ships 4-14 days
3
174-8912
Screw
$0.95
4
usually ships 1-5 days
4
174-3488
Console back
$88.13
1
usually ships 1-5 days
5
174-8913
Cable
$40.75
1
usually ships 1-5 days
6
174-8914
Key switch
$27.66
1
usually ships 4-14 days
7
174-7079
Key (set of 2)
$20.30
1
usually ships 4-14 days
