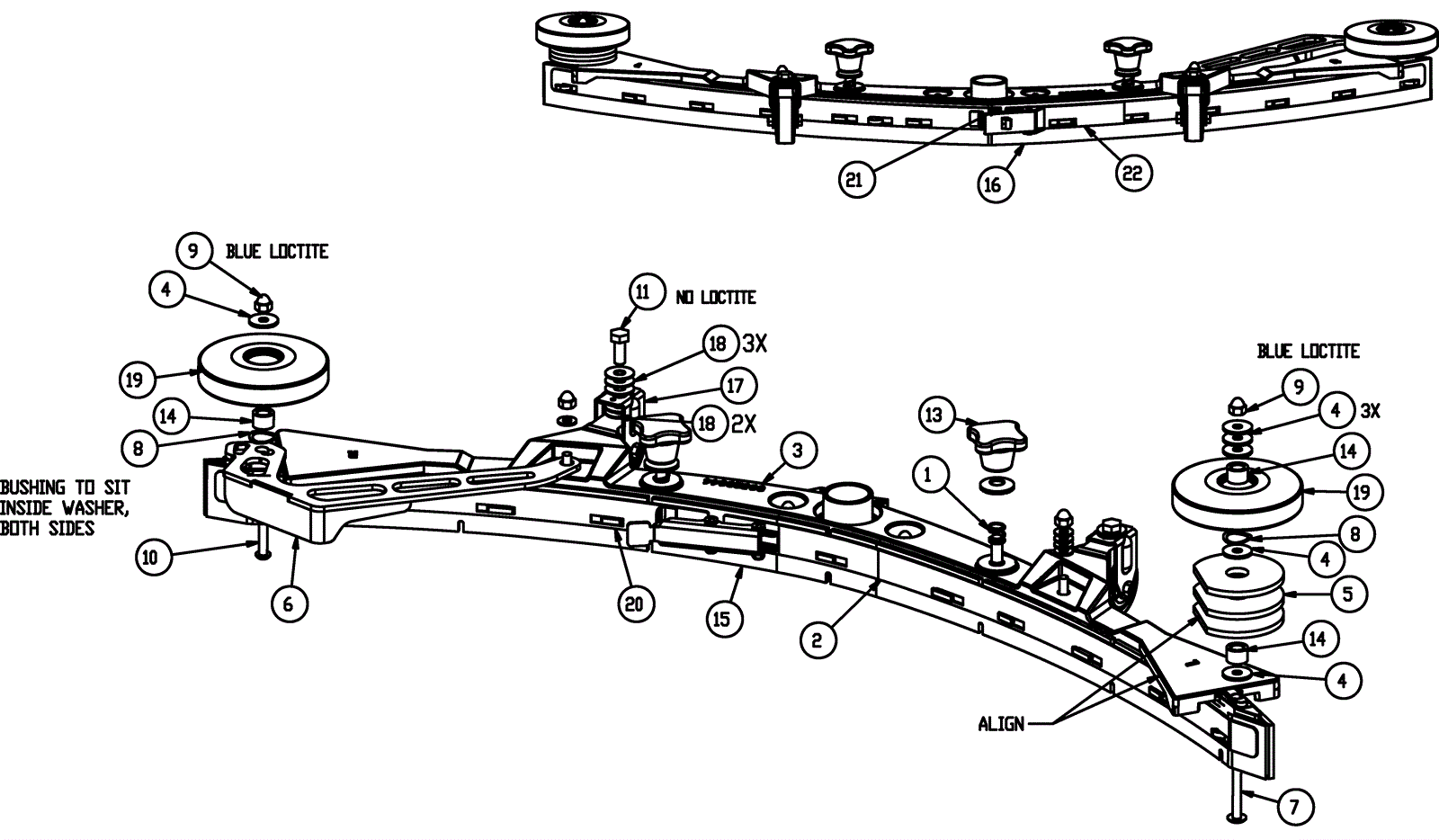

E30 ECO Squeegee Assembly II

#PartDescriptionPriceReqNotesAvailability
1 374-1935 SPRING, COMP .4 ID X .5FL SS $1.42 2 usually ships 4-14 days
2 274-5745 STRAP W/ LATCH, FRONT LEFT, 38 inch SQG $111.58 1 usually ships 4-14 days
3 274-8804 38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) $378.82 1 usually ships 1-5 days
4 374-0870 WSR-FLT .266 X .875 X .07 SS $0.97 6 usually ships 1-5 days
5 174-8695 Snubbing washer $6.37 3 usually ships 1-5 days
6 174-3678 Deflector arm $59.53 1 usually ships 4-14 days
7 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 1 ships same day
8 174-5229 Washer 5/8 .65 x .86 x .01 wave $0.97 2 usually ships 1-5 days
9 999-1344 Nut 1/4-20 acorn stainless steel $1.38 2 ships same day
10 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 1 ships same day
11 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
13 174-8339 Star knob $2.98 2 ships same day
14 174-9628 Bushing $7.23 3 usually ships 4-14 days
15 174-8180 Squeegee blade front polyurethane $47.68 1 ships same day
16 174-8179 Squeegee blade rear polyurethane $29.11 1 ships same day
17 174-8933 Fixed caster $12.43 2 ships same day
18 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.54 10 usually ships 4-14 days
19 174-8932 4 inch plastic roller $3.86 2 usually ships 4-14 days
20 174-7104 Front right tension band $12.86 1 usually ships 4-14 days
21 174-3539 Rear left tension band $24.12 1 usually ships 4-14 days
22 174-3541 Rear right tension band $31.74 1 ships same day
N/S 174-8669 Washer M10.6 serrated tooth $3.48 2 usually ships 4-14 days
