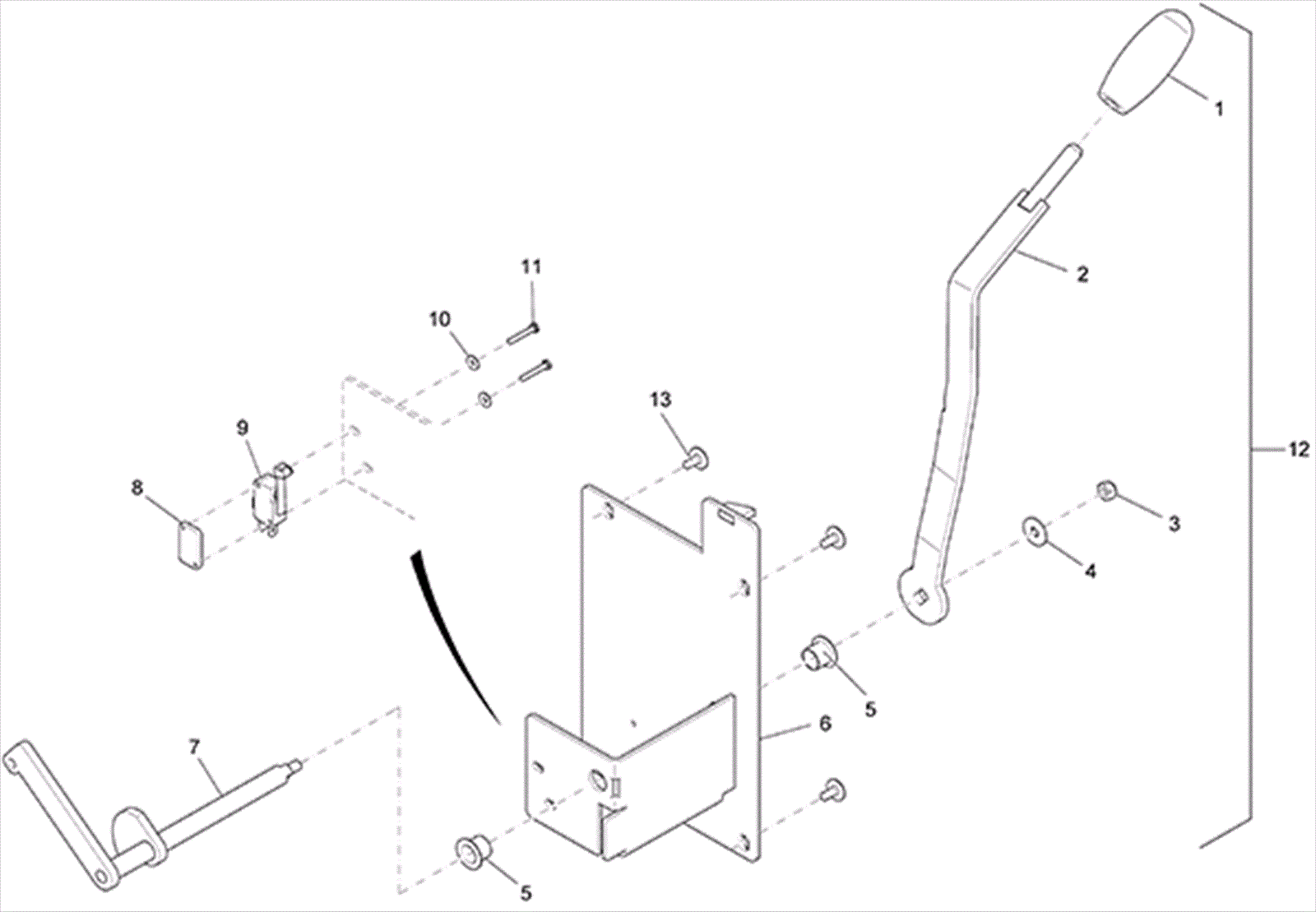

E30 ECO Squeegee Lift Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8927 Handle $11.93 1 usually ships 4-14 days
2 274-3328 Squeegee lift lever weldment $18.76 1 usually ships 4-14 days
3 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
4 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
5 174-8928 Slide bearing bushing $10.76 2 usually ships 1-5 days
6 174-3510 Support plate $21.85 1 usually ships 1-5 days
7 174-8929 Shaft $30.69 1 usually ships 4-14 days
8 174-8930 Threaded switch mount plate $5.49 1 usually ships 1-5 days
9 174-8931 Micro switch $16.57 1 usually ships 4-14 days
10 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
11 999-1897 Screw M3-.5 x 20mm hex head $0.99 2 usually ships 1-5 days
12 174-3511 Squeegee lift assembly $112.64 1 (includes 1-11, 13) usually ships 4-14 days
13 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 4 ships same day
