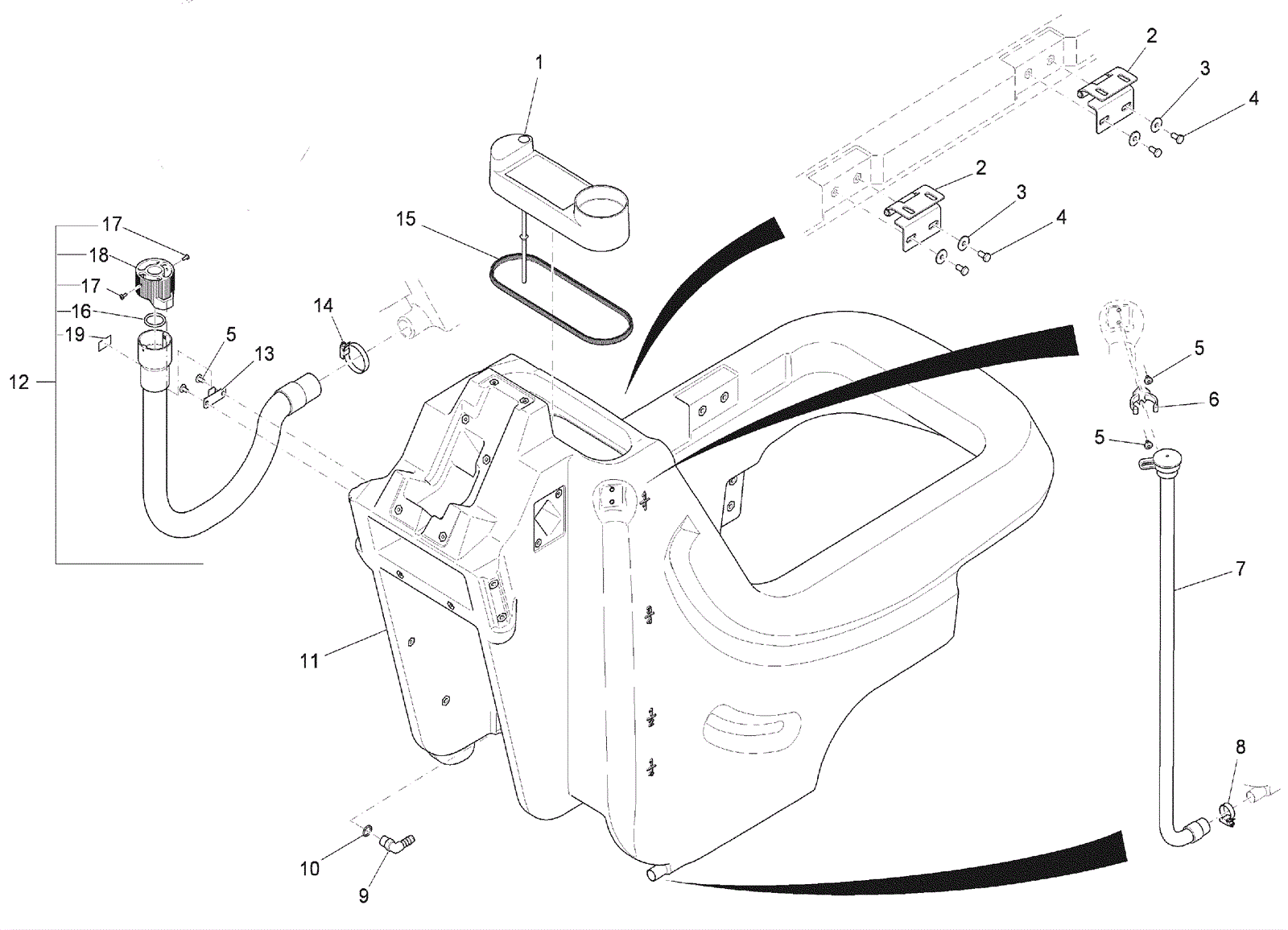

E30 ECO Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8952 Solution tank lid $14.56 1 usually ships 1-5 days
2 174-8953 Tank hinge $80.77 2 usually ships 1-5 days
3 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
5 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 4 ships same day
6 174-8926 Hose support $3.65 1 usually ships 4-14 days
7 174-8954 Hose $72.89 1 usually ships 4-14 days
8 174-3516 Hose clamp $1.27 1 usually ships 4-14 days
9 174-8955 Hose barb elbow fitting $4.55 1 ships same day
10 174-8956 O-ring $11.93 1 usually ships 1-5 days
11 174-7059 Solution tank $1,091.63 1 usually ships 4-14 days
12 174-8455 Drain hose assembly $90.25 1 (includes parts 16-19) ships same day
13 174-8957 Hook $7.91 1 usually ships 4-14 days
14 997-2000 Hose clamp $2.37 1 ships same day
15 174-8958 Edge protection $20.88 28 in usually ships 1-5 days
16 174-8959 O-ring $4.75 1 usually ships 4-14 days
17 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 2 ships same day
18 174-8960 Drain hose cap $18.64 1 usually ships 4-14 days
19 174-8961 Decal $4.08 1 usually ships 1-5 days
