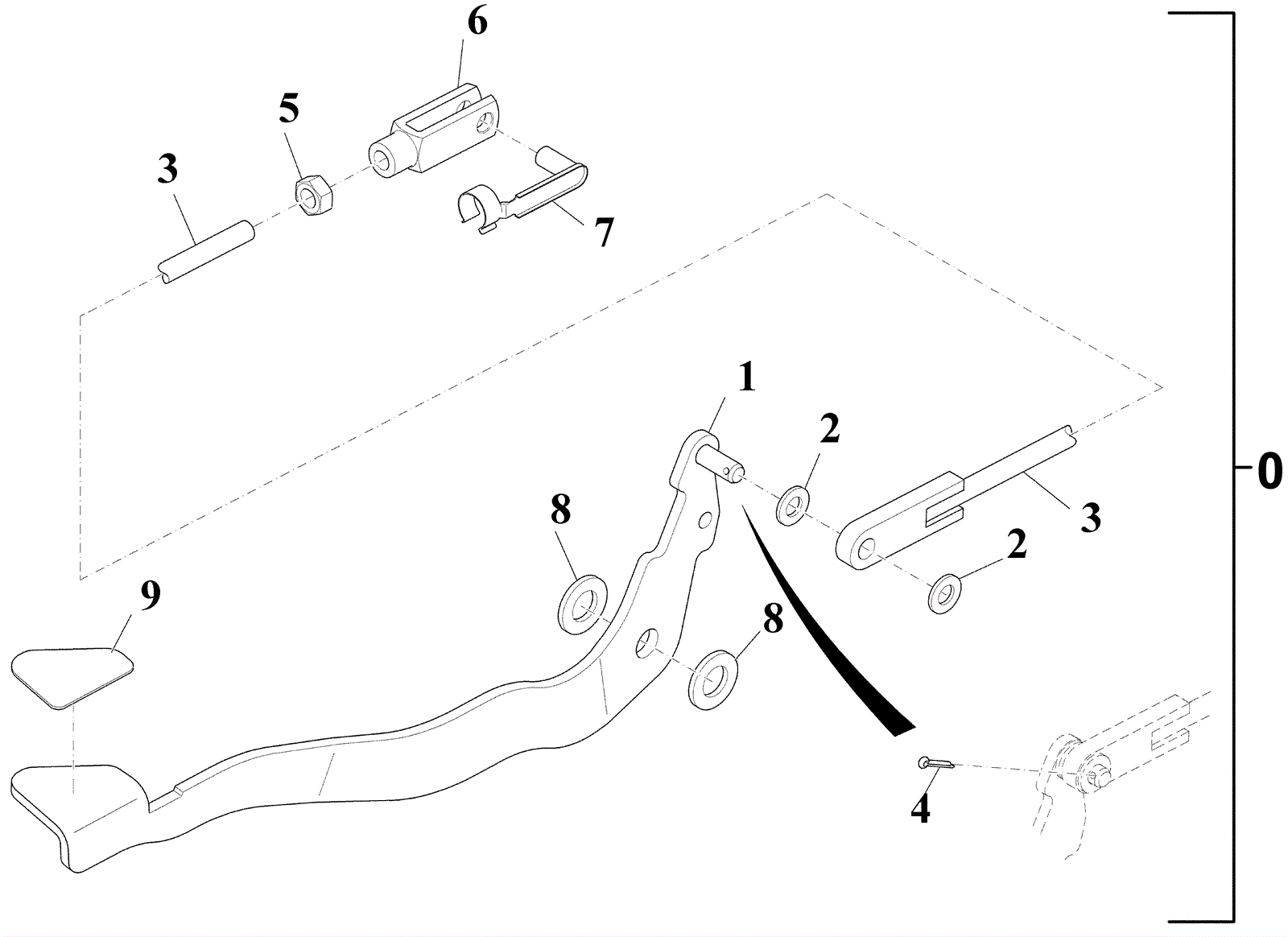

E30 ECO Lift Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
0 274-5593 LIFTING PEDAL $107.11 1 (includes 1-9) usually ships 4-14 days
1 174-8887 Lifting pedal $25.19 1 usually ships 4-14 days
2 174-8888 Washer $4.62 2 usually ships 4-14 days
3 174-8889 Rod weldment $28.67 1 usually ships 1-5 days
4 174-8890 Cotter pin $5.26 1 usually ships 1-5 days
5 999-1428 Nut M10-1.5 hex zinc finish $0.99 1 ships same day
6 174-9653 Clevis yoke $6.76 1 usually ships 1-5 days
7 174-9663 S-bolt $6.92 1 usually ships 1-5 days
8 174-9619 Rubber washer $6.14 2 usually ships 4-14 days
9 174-9654 Anti-slip pedal decal $2.75 1 usually ships 4-14 days
