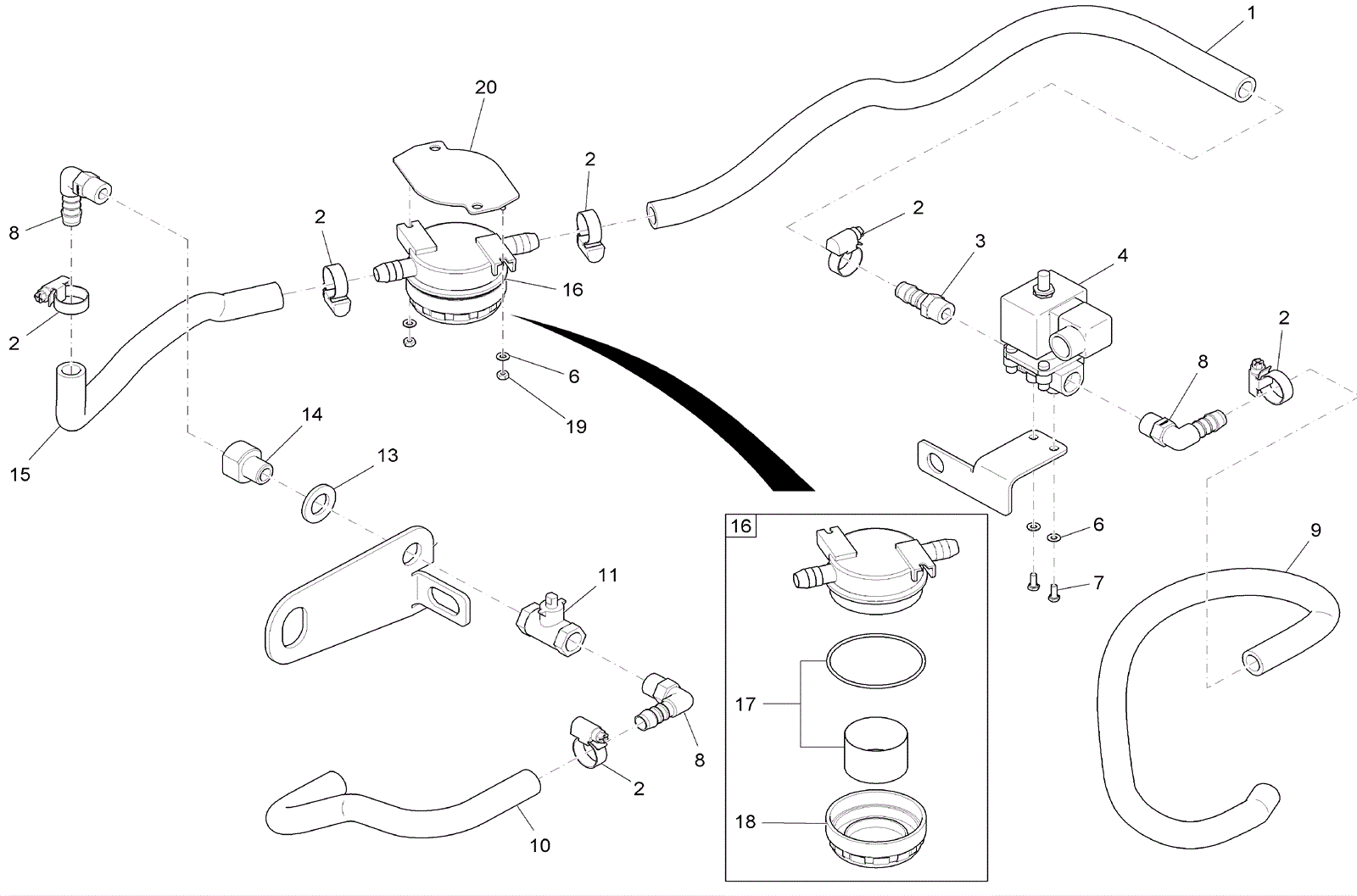

E30 ECO Water Feed System Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9631 PVC hose (Sold by the Meter) $5.64 22 in usually ships 4-14 days
2 174-1628 Hose clamp $4.52 6 usually ships 1-5 days
3 174-9632 Straight hose barb fitting $1.99 1 usually ships 1-5 days
4 174-9633 24V solenoid valve $114.26 1 usually ships 4-14 days
5 174-3490 Solenoid valve bracket $754.49 1 usually ships 1-5 days
6 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
7 999-9104 Screw M4-.7 x 10mm hex head stainless steel $0.99 2 usually ships 1-5 days
8 174-8955 Hose barb elbow fitting $4.55 3 ships same day
9 174-9631 PVC hose (Sold by the Meter) $5.64 21 in usually ships 4-14 days
10 174-9631 PVC hose (Sold by the Meter) $5.64 11 in usually ships 4-14 days
11 274-6771 VALVE (STOP COCK) Call for price 1 usually ships 1-5 days
12 174-3491 Ball valve bracket $16.95 1 usually ships 1-5 days
13 174-9621 Washer M17 flat $3.74 1 usually ships 4-14 days
14 174-9622 Threaded fitting $26.51 1 usually ships 4-14 days
15 174-9631 PVC hose (Sold by the Meter) $5.64 13 in usually ships 4-14 days
16 174-3670 Water filter assembly $49.81 1 (includes 17-18) usually ships 4-14 days
17 174-3670 Water filter assembly $49.81 1 (with o-ring) usually ships 4-14 days
18 174-7081 Filter cap $33.80 1 usually ships 4-14 days
19 999-0955 Nut M4-.7 hex nylon lock $1.52 2 ships same day
20 174-9635 Water filter bracket $6.08 1 usually ships 1-5 days
