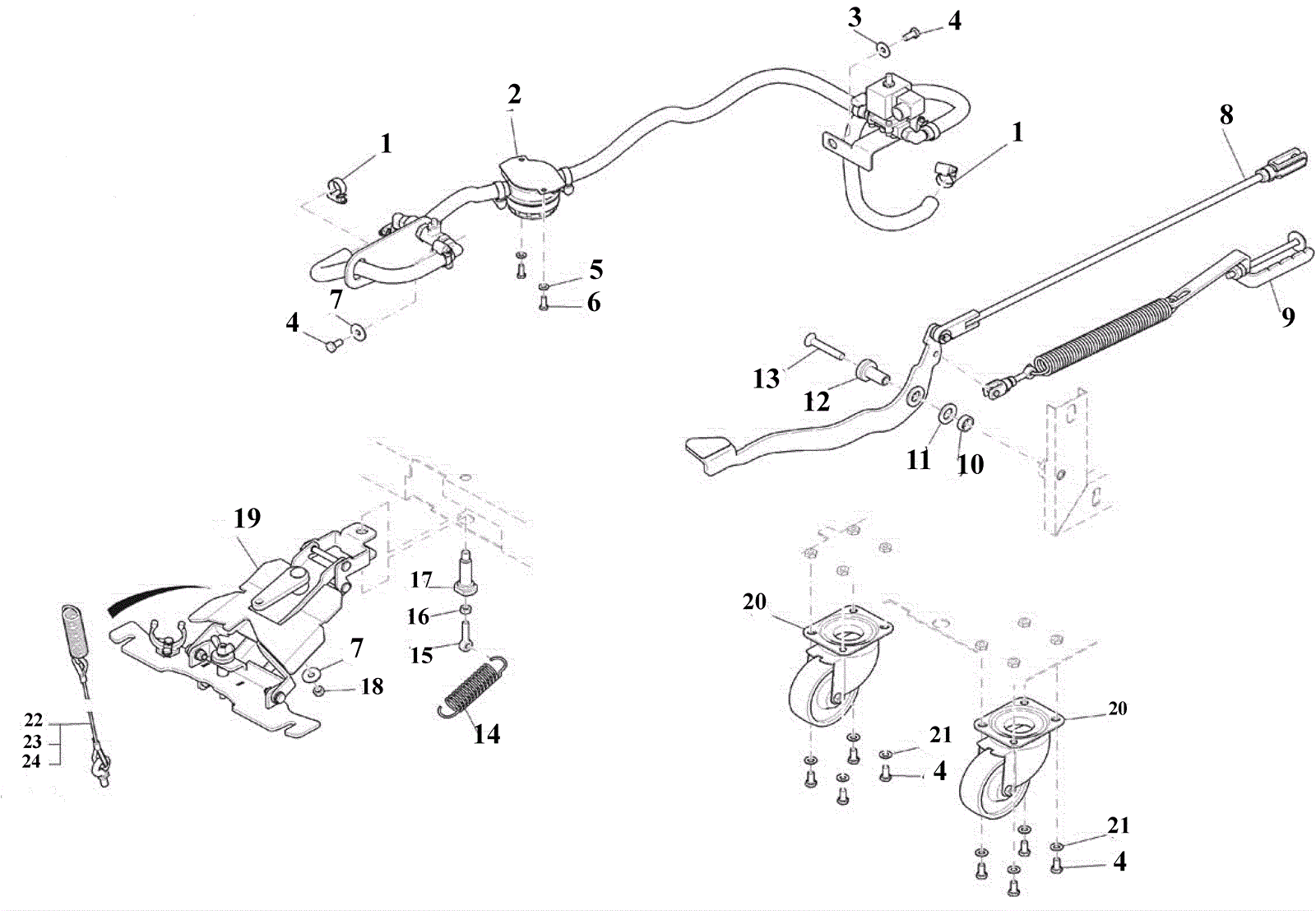

E30 ECO Chassis Assembly III

#PartDescriptionPriceReqNotesAvailability
1 174-1628 Hose clamp $4.52 2 usually ships 1-5 days
2 N/A Not available Call for price 1 (water feed system) (see Water Feed System Assembly) usually ships 3-26 days
3 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
5 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
6 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
7 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
8 N/A Not available Call for price 1 (lifting pedal) (see Lift Pedal Assembly) usually ships 3-26 days
9 N/A Not available Call for price 1 (brush pressure adjustment) (see Brush Pressure Asjustment Assembly) usually ships 3-26 days
10 174-9657 Spacer $3.46 1 usually ships 4-14 days
11 174-9621 Washer M17 flat $3.74 1 usually ships 4-14 days
12 174-9658 Pedal pivot bushing $13.33 1 usually ships 4-14 days
13 174-9641 Screw M10-1.5 x 60mm flat head $1.72 1 usually ships 4-14 days
14 174-9659 Tension spring $2.58 1 usually ships 1-5 days
15 174-9664 Eye bolt $24.95 1 usually ships 4-14 days
16 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
17 174-9660 Pivot $41.95 1 usually ships 4-14 days
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
19 N/A Not available Call for price 1 (squeegee connection) (see Squeegee Connection Assembly) usually ships 3-26 days
20 174-9661 Caster $98.62 2 usually ships 4-14 days
21 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
22 174-9669 Squeegee lift cable $29.53 1 (E26) usually ships 4-14 days
23 274-4515 LINKAGE $53.85 1 (E28, 30, 33XL) usually ships 1-5 days
24 174-9677 Sheet metal $42.58 1 (Phoenix 28, 30) usually ships 4-14 days
