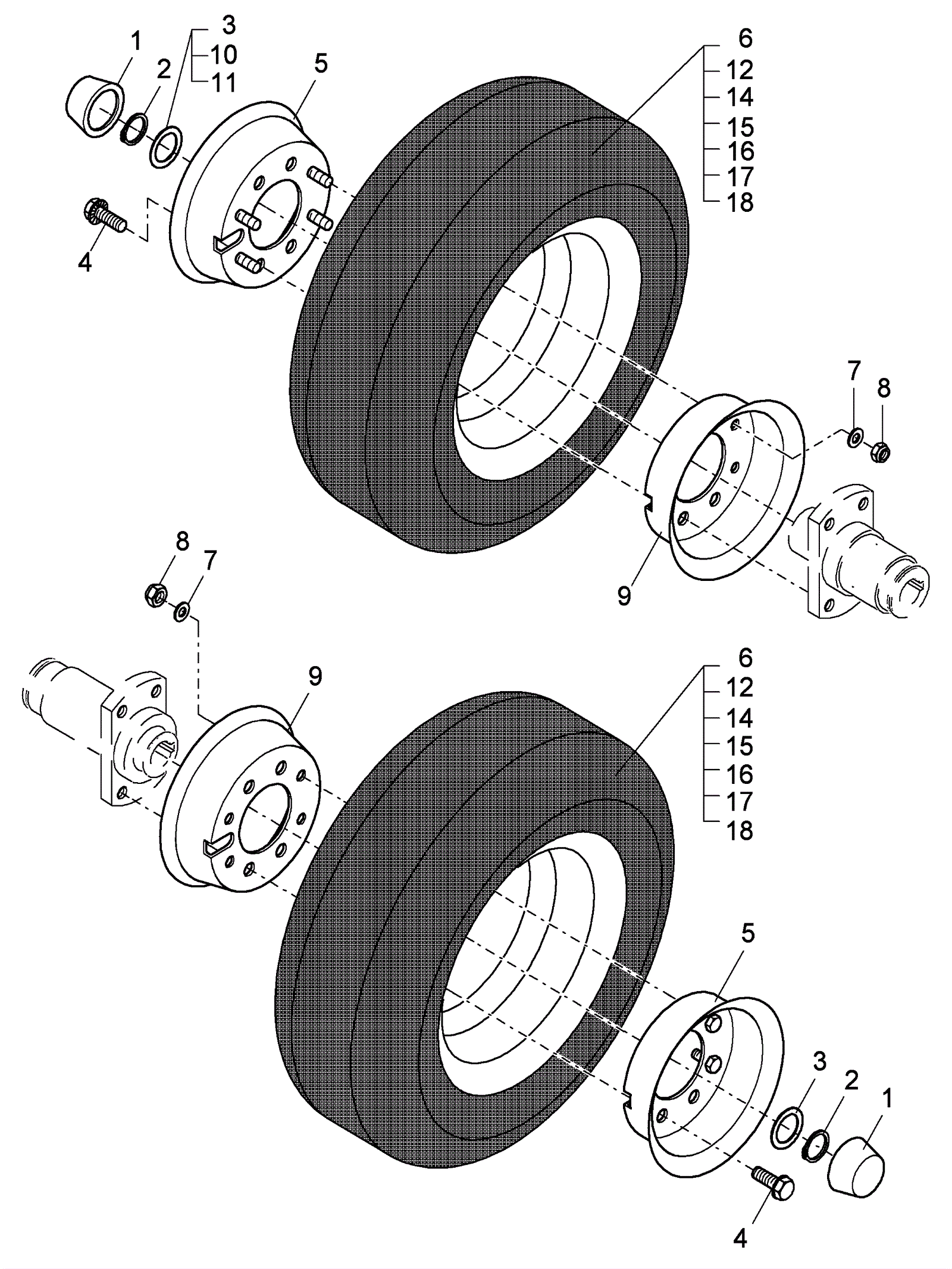

E30 ECO Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 374-1897 CAP $1.64 2 usually ships 4-14 days
2 274-4757 THRUST WASHER $1.10 2 usually ships 1-5 days
3 274-0070 ADJUSTING WASHER $1.10 2 usually ships 1-5 days
4 174-9637 Bolt M8-1.25 x 20mm hex head flange $1.31 2 usually ships 1-5 days
5 174-8995 Rim $31.05 2 usually ships 1-5 days
6 274-5854 TIRE 3.00 X 6 $61.06 2 usually ships 1-5 days
7 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
8 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
9 174-8996 Rim $33.58 2 usually ships 1-5 days
10 274-2842 ADJUSTING SHIM $0.95 2 usually ships 1-5 days
11 174-9169 Supporting ring $1.10 2 usually ships 4-14 days
12 274-6142 TUBE $11.90 2 usually ships 1-5 days
14 274-8429 TYRE $169.68 2 usually ships 1-5 days
15 174-8995 Rim $31.05 2 usually ships 1-5 days
16 174-8996 Rim $33.58 2 usually ships 1-5 days
17 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
18 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
