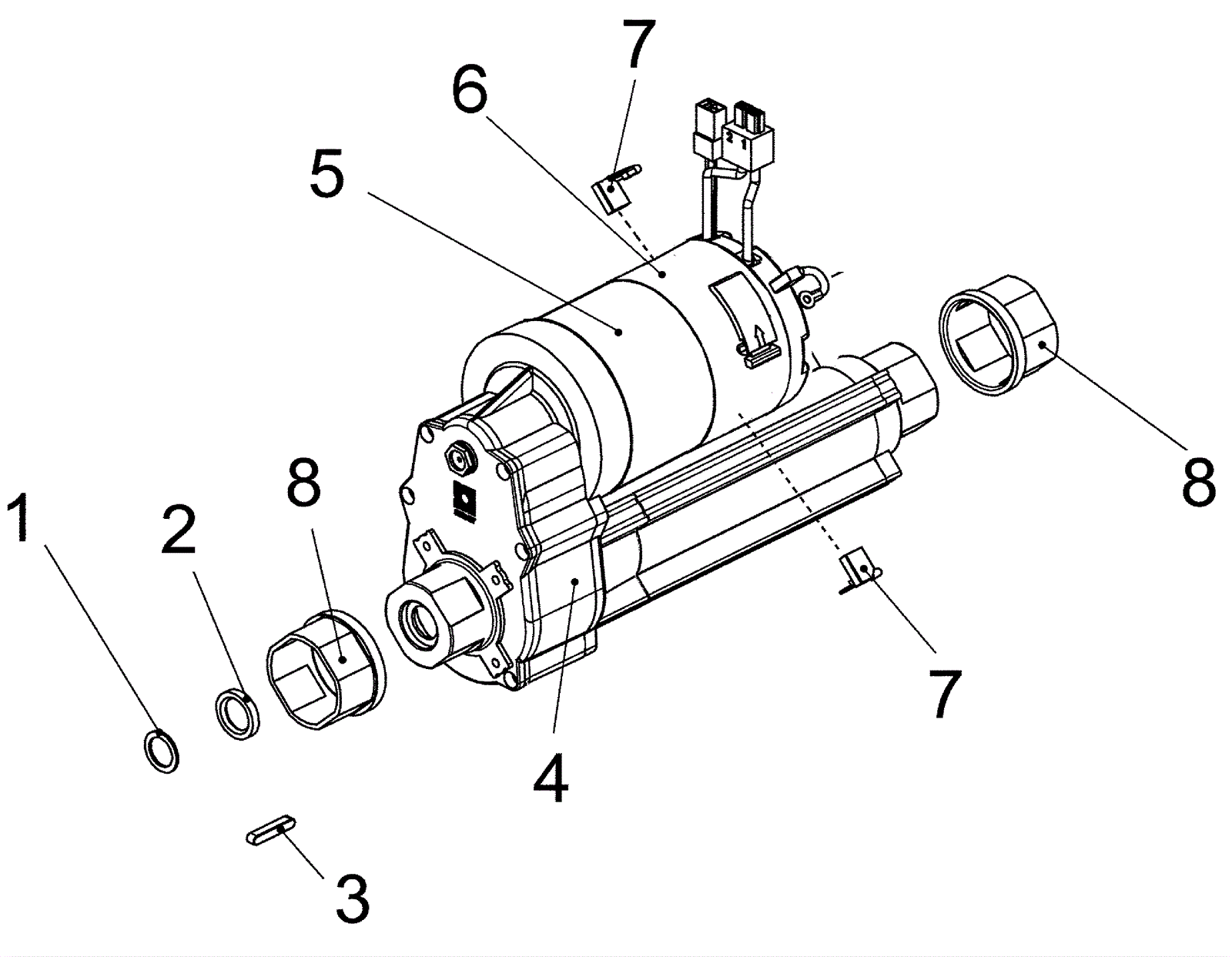

E30 ECO Traction Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3522 Washer $1.10 2 usually ships 1-5 days
2 174-3523 Gasket $14.39 3 usually ships 1-5 days
3 174-8916 Fitting key $1.80 2 usually ships 1-5 days
4 174-3527 Gear box with shaft $761.03 1 usually ships 1-5 days
5 174-8994 Transaxle $885.70 1 usually ships 4-14 days
6 174-8917 Covering $40.39 1 usually ships 1-5 days
7 174-8918 Carbon brush $30.48 4 usually ships 4-14 days
8 174-3525 Bushing $13.10 2 usually ships 1-5 days
N/S 174-3526 Nut $2.10 4 usually ships 1-5 days
