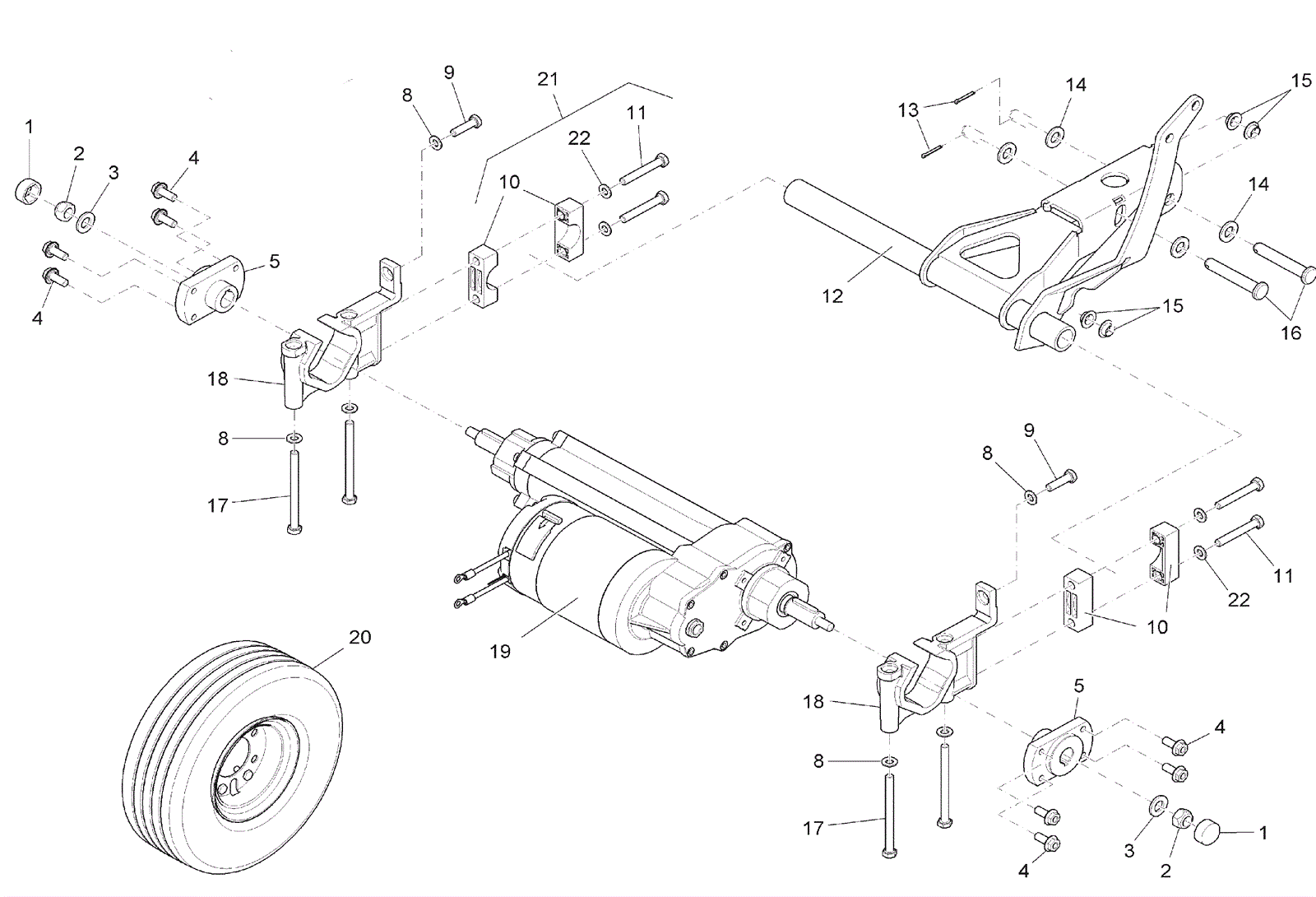

E30 ECO Chassis Assembly II

#PartDescriptionPriceReqNotesAvailability
1 174-8990 Protection cap $3.80 2 usually ships 1-5 days
2 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 2 usually ships 11-24 days
3 374-0693 Washer M13 $3.74 2 usually ships 1-5 days
4 174-9637 Bolt M8-1.25 x 20mm hex head flange $1.31 8 usually ships 1-5 days
5 174-3546 Transaxle hub $73.77 2 usually ships 1-5 days
8 999-9097 Washer M8 flat stainless steel $0.99 8 ships same day
9 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
10 274-0028 BEARING BLOCK, NYLON $3.98 4 usually ships 1-5 days
11 999-1692 Screw M8-1.25 x 50mm hex stainless steel $3.28 4 ships same day
12 174-9435 Deck lift lever weldment $73.57 1 usually ships 4-14 days
13 174-8991 Cotter pin $4.96 2 usually ships 1-5 days
14 374-0693 Washer M13 $3.74 4 usually ships 1-5 days
15 174-8992 Slide bearing $4.10 4 usually ships 1-5 days
16 174-9639 Clevis pin $6.99 2 usually ships 1-5 days
17 999-9159 Bolt M8-1.0 x 100mm hex cap $2.68 4 ships same day
18 174-8993 Transaxle mounting bracket $29.60 2 usually ships 1-5 days
19 174-8994 Transaxle $885.70 1 usually ships 4-14 days
20 274-7592 REPLACE W/ 97071328 PAIR- WHEEL PNEUMATC $41.36 2 usually ships 1-5 days
21 174-3549 Block assembly $86.34 1 (includes 10-11, 22) (kit required to exchange all 4 blocks) usually ships 4-14 days
22 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
