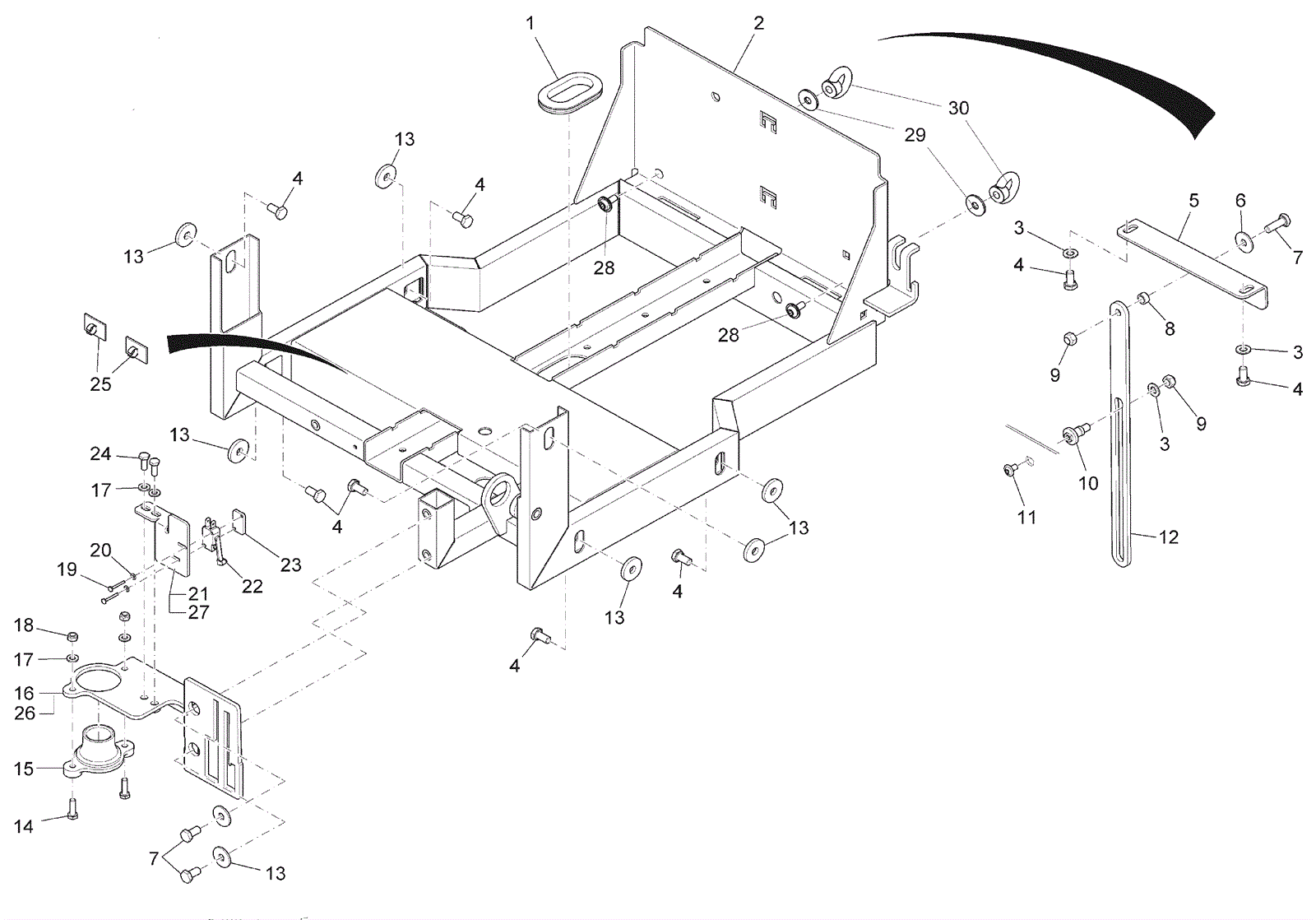

E30 ECO Chassis Assembly I

#PartDescriptionPriceReqNotesAvailability
1 174-8967 Grommet $9.97 1 usually ships 1-5 days
2 274-8943 CHASSIS $215.52 1 usually ships 1-5 days
3 999-9097 Washer M8 flat stainless steel $0.99 7 ships same day
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 14 ships same day
5 174-8969 Tank support bracket $12.06 1 usually ships 1-5 days
6 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
7 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 3 ships same day
8 174-8970 Bushing $5.35 1 usually ships 4-14 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
10 174-8971 Bushing $23.08 1 usually ships 1-5 days
11 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 1 ships same day
12 174-3480 Bracket $11.45 1 usually ships 1-5 days
13 174-9630 Washer M9 conical spring with tooth $7.17 10 usually ships 1-5 days
14 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
15 174-8292 Cable guide bushing $4.55 1 usually ships 1-5 days
16 174-8973 Pedal locking bracket $68.27 1 usually ships 4-14 days
17 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
18 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
19 999-1897 Screw M3-.5 x 20mm hex head $0.99 2 usually ships 1-5 days
20 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
21 274-1577 RETAINER $12.80 1 usually ships 4-14 days
22 174-8931 Micro switch $16.57 1 usually ships 4-14 days
23 174-8930 Threaded switch mount plate $5.49 1 usually ships 1-5 days
24 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
25 174-8972 Cable clip $1.39 2 usually ships 1-5 days
26 174-8973 Pedal locking bracket $68.27 1 usually ships 4-14 days
27 174-6576 Switch mount bracket $3.08 1 usually ships 4-14 days
28 274-1312 LENS FLANGE SCREW $0.97 2 usually ships 1-5 days
29 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
30 174-9625 Nut M8-1.25 eye zinc $4.00 2 usually ships 1-5 days
