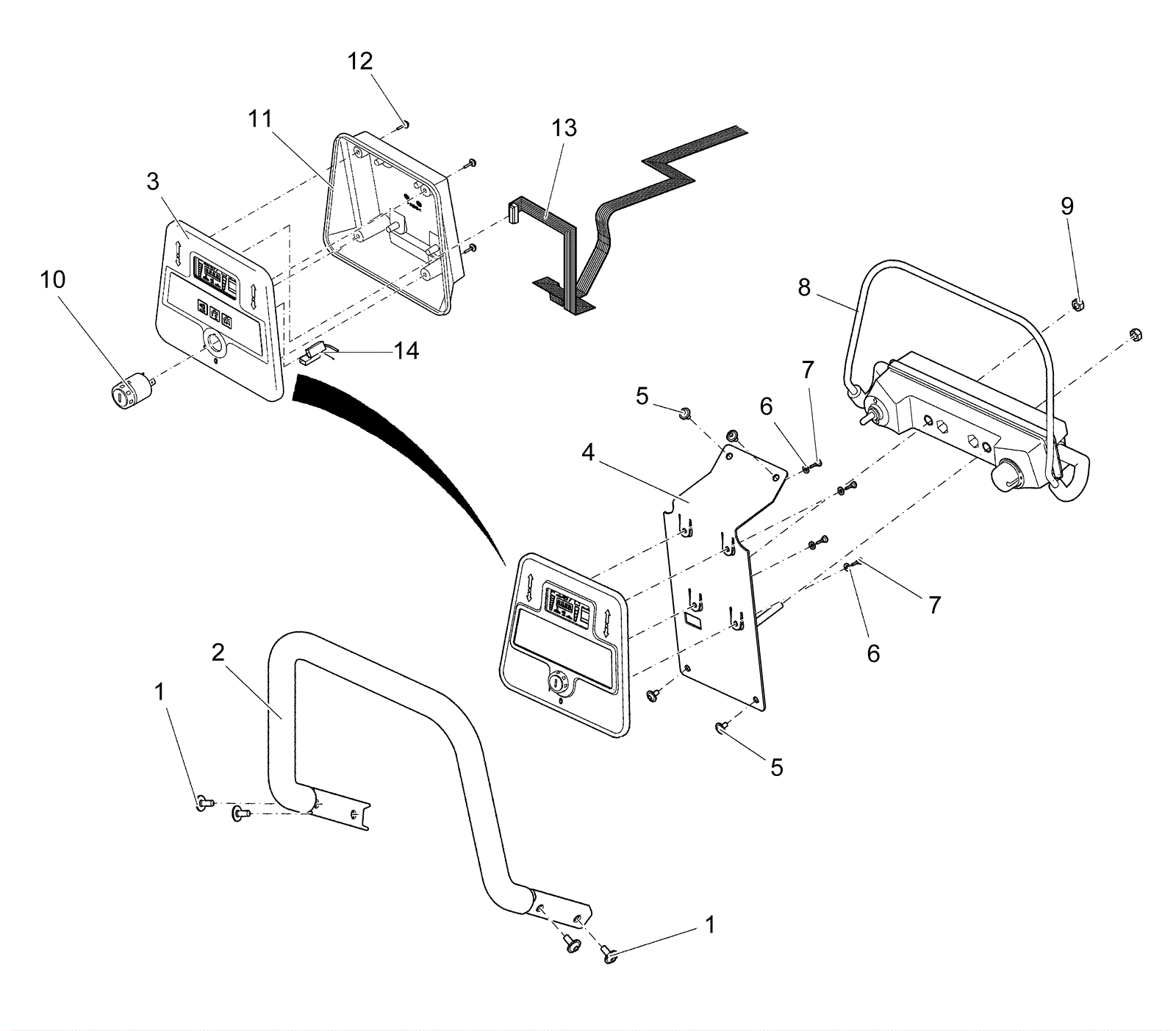

E30 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8919 Screw M8 x 1 1/4 x 16 flanged stainless steel $3.06 4 usually ships 1-5 days
2 174-6584 Handle bar $89.52 1 usually ships 12-16 days
3 274-8927 Display panel console $407.48 1 usually ships 1-5 days
4 174-8921 Panel mount bracket $33.82 1 usually ships 1-5 days
5 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 4 ships same day
6 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
7 174-8902 Self tapping screw $1.38 4 usually ships 12-16 days
8 174-8922 Bail system $213.06 1 usually ships 12-16 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
10a 174-8914 Key switch $27.66 1 usually ships 12-16 days
10b 174-7079 Key (set of 2) $22.56 1 usually ships 12-16 days
11 174-3488 Console back $97.92 1 usually ships 1-5 days
12 174-8912 Screw $1.44 4 usually ships 1-5 days
13 174-8911 Ribbon cable $78.19 1 ships same day
14 174-8913 Cable $45.28 1 usually ships 1-5 days
