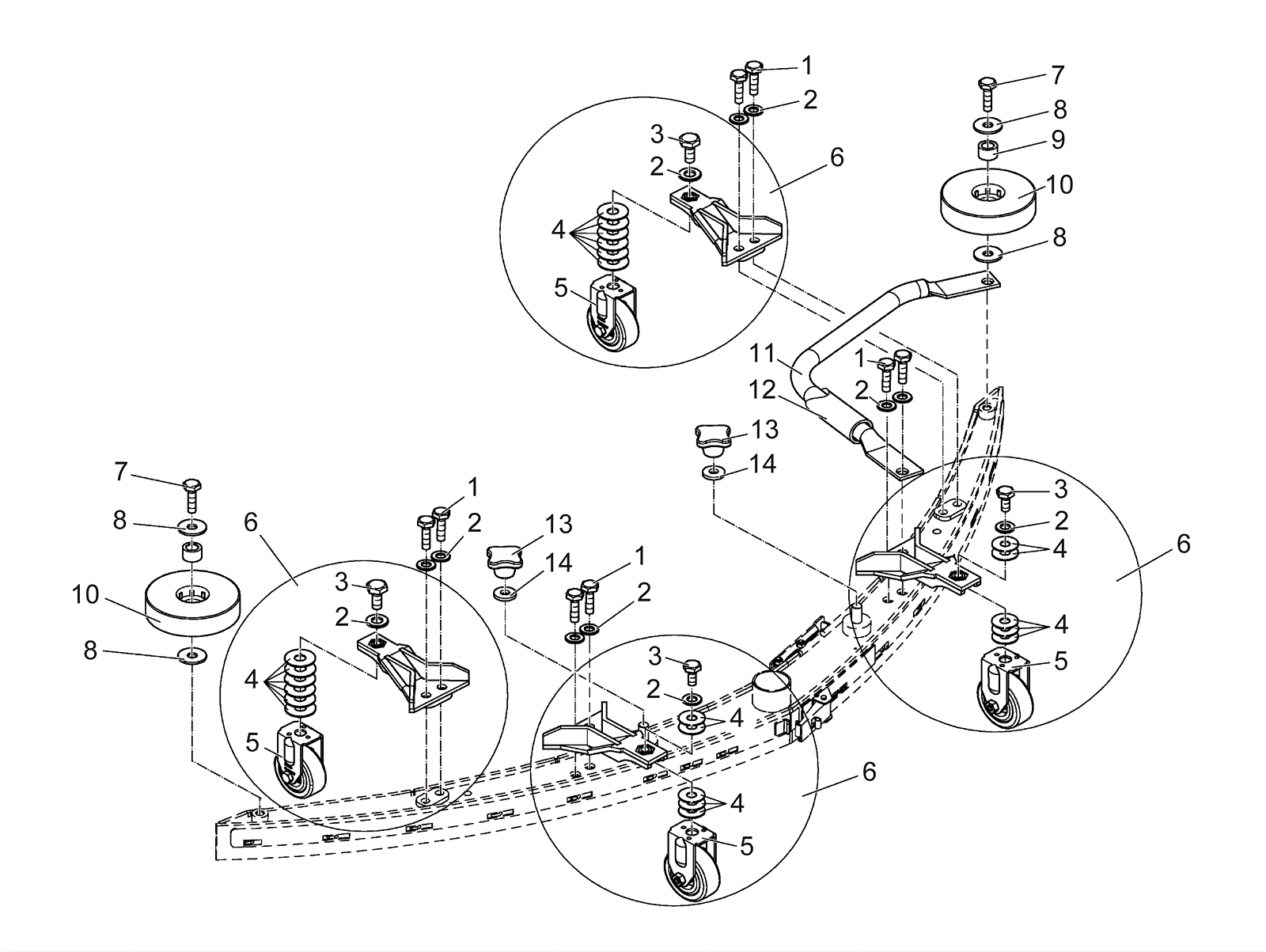

E30 Squeegee Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 374-1549 HEXAGON SCREW $1.10 4 usually ships 1-5 days
2 999-9097 Washer M8 flat stainless steel $0.99 12 ships same day
3 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
4 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.54 22 usually ships 4-14 days
5 174-8933 Fixed caster $12.43 4 ships same day
6 174-8933 Fixed caster $12.43 2 (includes 2-5) ships same day
7 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
8 999-1267 Washer M8 flat zinc $0.99 4 ships same day
9 174-9628 Bushing $7.23 2 usually ships 4-14 days
10 174-8340 Guide wheel $5.86 2 usually ships 4-14 days
11 174-4177 Bracket $74.29 1 usually ships 4-14 days
12 174-8935 Hose (sold by the Meter) $8.34 12 in usually ships 1-5 days
13 174-8339 Star knob $2.98 2 ships same day
14 174-8669 Washer M10.6 serrated tooth $3.48 2 usually ships 4-14 days
