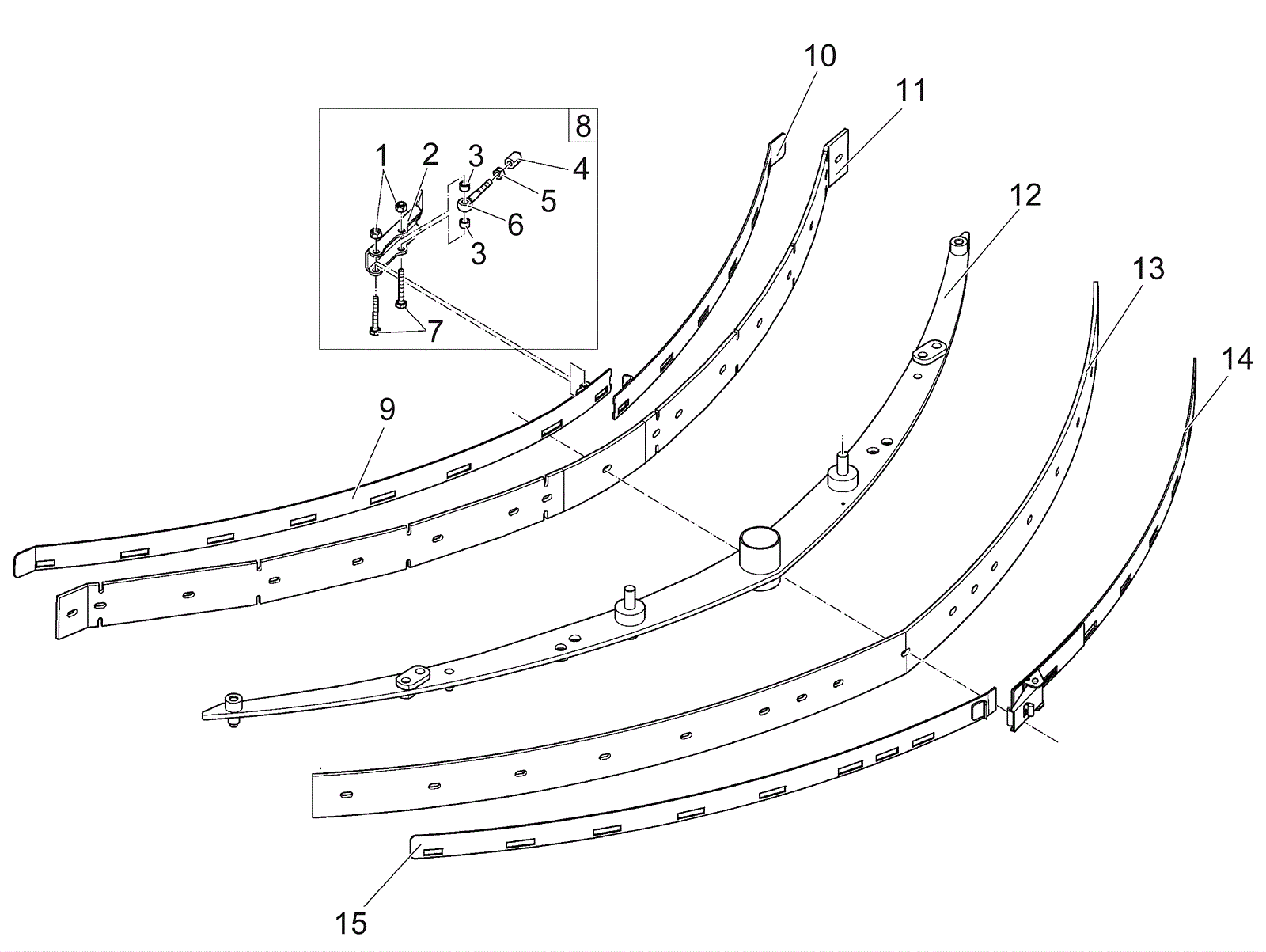

E30 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
2 174-8327 Lever $14.25 1 ships same day
3 174-8938 Bushing $3.13 2 usually ships 1-5 days
4 174-8341 Pressure pin $10.53 1 ships same day
5 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
6 174-8338 Bolt M5 x 40mm eye stainless steel $19.36 1 ships same day
7 174-8947 Screw M5-.8 x 30 hex head stainless steel $1.25 2 usually ships 1-5 days
8 174-7105 Latch assembly $170.89 1 usually ships 12-16 days
9 174-8474 Front tension band $44.07 1 usually ships 12-16 days
10 174-8475 Front tension band $40.57 1 usually ships 12-16 days
11 174-7082 Squeegee blade urethane front $46.18 1 usually ships 12-16 days
12 174-7132 Squeegee assembly $1,009.72 1 usually ships 1-5 days
13 174-7083 Rear polyurethane blade $46.18 1 usually ships 12-16 days
14 274-5840 REAR TENSION BAND $88.94 1 usually ships 12-16 days
15 274-4151 REAR TENSION BAND $49.25 1 usually ships 12-16 days
