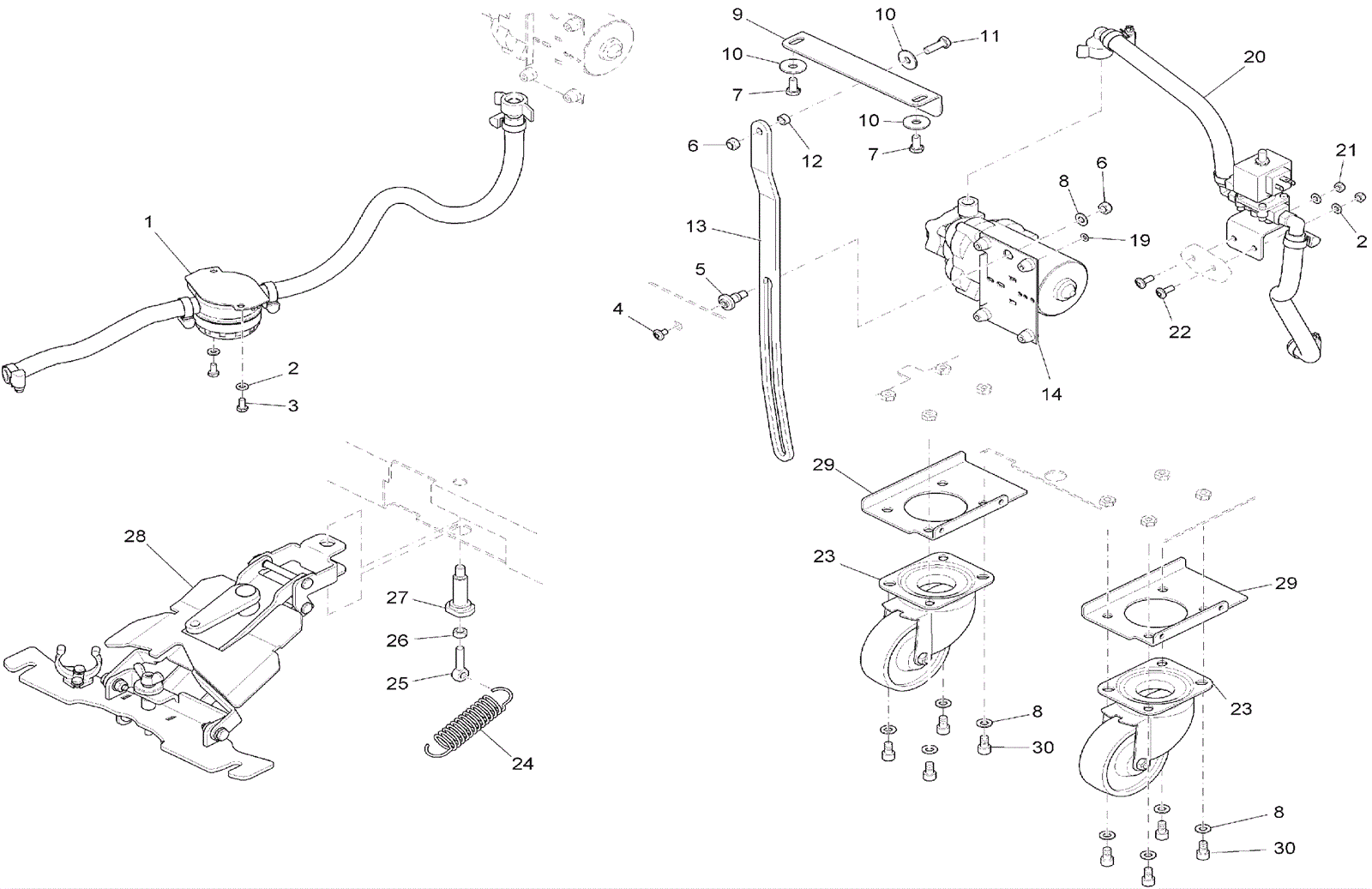

E30 Lower Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3670 Water filter assembly $49.81 1 usually ships 4-14 days
2 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
3 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
4 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 1 ships same day
5 174-8971 Bushing $23.08 1 usually ships 1-5 days
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
7 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 10 ships same day
8 999-9097 Washer M8 flat stainless steel $0.99 9 ships same day
9 174-8969 Tank support bracket $12.06 1 usually ships 1-5 days
10 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
12 174-8970 Bushing $5.35 1 usually ships 4-14 days
13 174-9682 Linkage $16.40 1 usually ships 4-14 days
14a 274-7616 PUMP, ASSEMBLY 24VDC $139.20 1 usually ships 4-14 days
14b 174-4123 QC-FEMALE 18G 0.5-1.5 mmq .250 NON-INS $0.97 1 usually ships 4-14 days
14c 174-4124 CONNECT-1 POS POSITIVE LOCK MALE- RECEPT $0.97 1 usually ships 4-14 days
14d 174-4125 Female connector $1.22 1 usually ships 4-14 days
14e 174-4126 QC-MALE 14G (1.5-2.5 mmq) .250 NON-INS $0.97 1 usually ships 4-14 days
19 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
20 174-9631 PVC hose (Sold by the Meter) $5.64 1 usually ships 4-14 days
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 (soft construction) ships same day
22 174-8941 Lens flange screw $2.48 2 usually ships 1-5 days
23a 174-4130 Steering roller $260.00 2 (soft construction) usually ships 4-14 days
23b 274-7979 STEERING ROLLER(DOUBLE WHEEL-HARD DRK GR $252.21 2 (hard contruction) usually ships 1-5 days
24 174-9659 Tension spring $2.58 1 usually ships 1-5 days
25 174-9664 Eye bolt $24.95 1 usually ships 4-14 days
26 999-1551 Nut M8-1.25 hex jam zinc plated $0.99 1 usually ships 1-5 days
27 174-9660 Pivot $41.95 1 usually ships 4-14 days
28 174-3504 Connection bracket $455.45 1 usually ships 1-5 days
29 174-9679 Sheet metal $4.45 2 usually ships 4-14 days
30 274-3341 SCREW, SOCKET HEAD $0.95 8 usually ships 1-5 days
